- Morse and Browning offer a complete line of Torque Overload Devices to protect machinery from overloads or jams
- Browning Torq/ Pro overload load clutch is release type ball detent style with single position reset
- Accuracy of trip torque within 10% with max torque range 5270 ft/lbs. Easy torque setting and adjusting by tightening or loosing adjusting nuts (bolts)
TP20X7/8

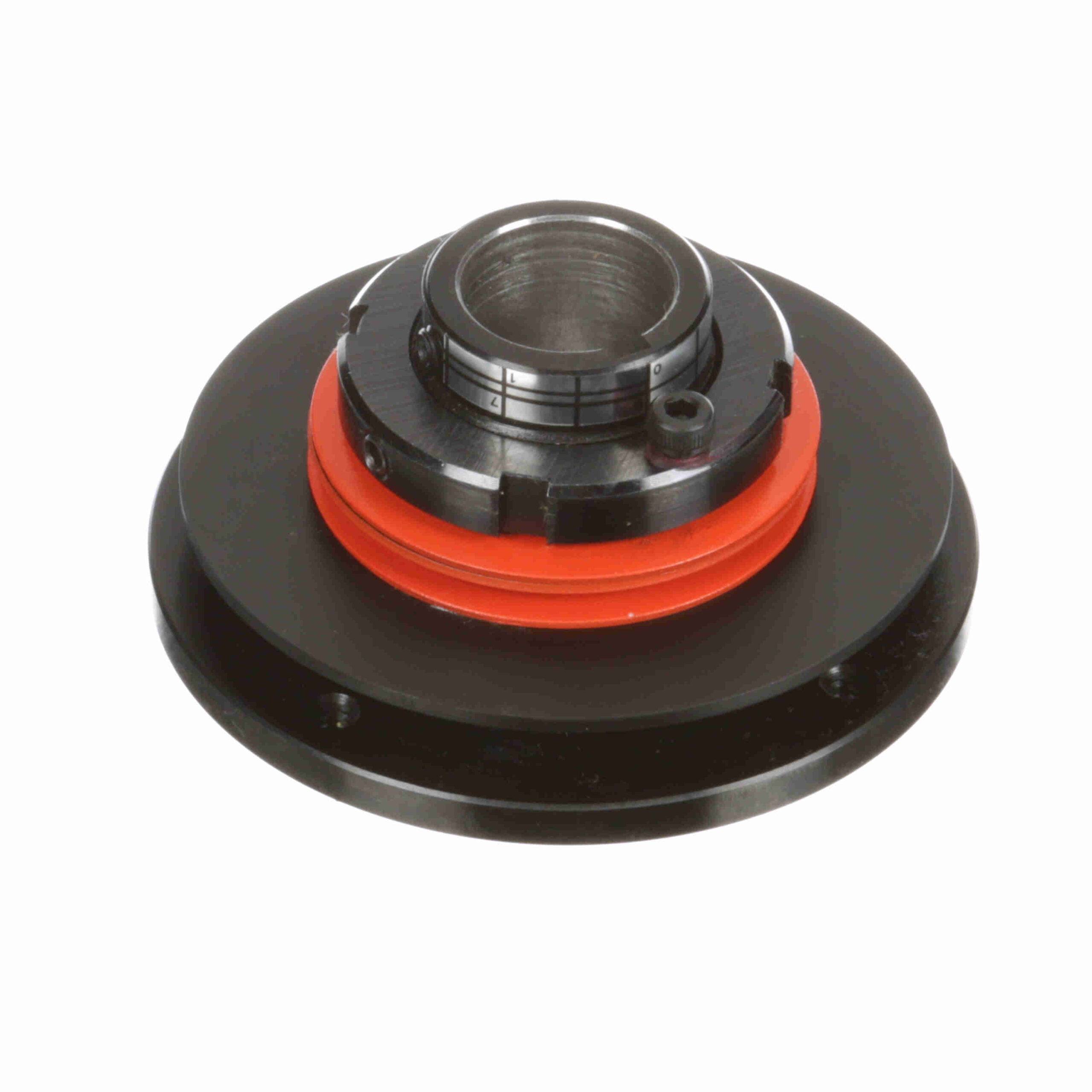

Browning Torq Pro Torque Limiter Model – TP20 – TP20X7/8
$1,441.82
Out of stock
Out of stock
| Torque [Min] (N-m): | 9.605 | Unit Accuracy: | 0.1 |
|---|---|---|---|
| Clutch size code: | 20 | Nominal Bore (in): | 0.875 in |
| Series / Model: | TP20 | Reset Type: | Automatic |
| Nut Diameter (in): | 1.89 in | Bore Size (mm): | 22.225 mm |
| Recovery Style: | Jog | Bore Shape: | Straight Bore |
| Disconnect Method: | Ball Detent | Detection Method: | Ball Detent |
| Number of Bolt Holes: | 4 | Bore Size (in): | 0.875 in |
| Speed Limit: | 700 | Hub Diameter (in): | 1.18 in |
| Total Length (mm): | 46.99 mm | Disc Spring Color: | Orange |
| Bolt Hole Thread Size (in): | 10, 24 in | Outside Diameter (mm): | 88.9 mm |
| Backlash: | Small | Spring Diameter: | 2.13 |
| Total Length (in): | 1.85 in | Outside Diameter (in): | 3.5 in |
| Mounting Bolt Circle Diameter: | 3 | Type: | Torque Overload Devices |
| Torq/Pro Sprockets: | STP20 | Sensor Travel: | 0.07 |
| Sensor Plate: | Yes | Torque Capacity [Min] (lb-ft): | 7.08333333333333 |
| Product Type: | Torq Pro Torque Limiter | Bore (Max) (in): | 0.875 in |
| Flange Diameter (in): | 2.44 in | Torque [Max] (N-m): | 45.2 |
| Torque Capacity [Max] (lb-ft): | 33.3333333333333 | Max RPM: | 700 |
| Torque Capacity [Min] (in-lb): | 85 | Torque Capacity [Max] (in-lb): | 400 |
| Bore (Min) (in): | 0.875 in | UPC: | 6, 62288E+11 |
| Weight: | 2.23 LB | Packaged Length: | 5.10 Inches |
| Packaged Width: | 4.80 Inches | Packaged Height: | 3.70 Inches |
| HTC: | 8483.60.8000 | Country of Origin: | Japan |
