- Morse and Browning offer a complete line of Torque Overload Devices to protect machinery from overloads or jams
- Browning Torq/ Pro overload load clutch is release type ball detent style with single position reset
- Accuracy of trip torque within 10% with max torque range 5270 ft/lbs. Easy torque setting and adjusting by tightening or loosing adjusting nuts (bolts)
TP20X3/4

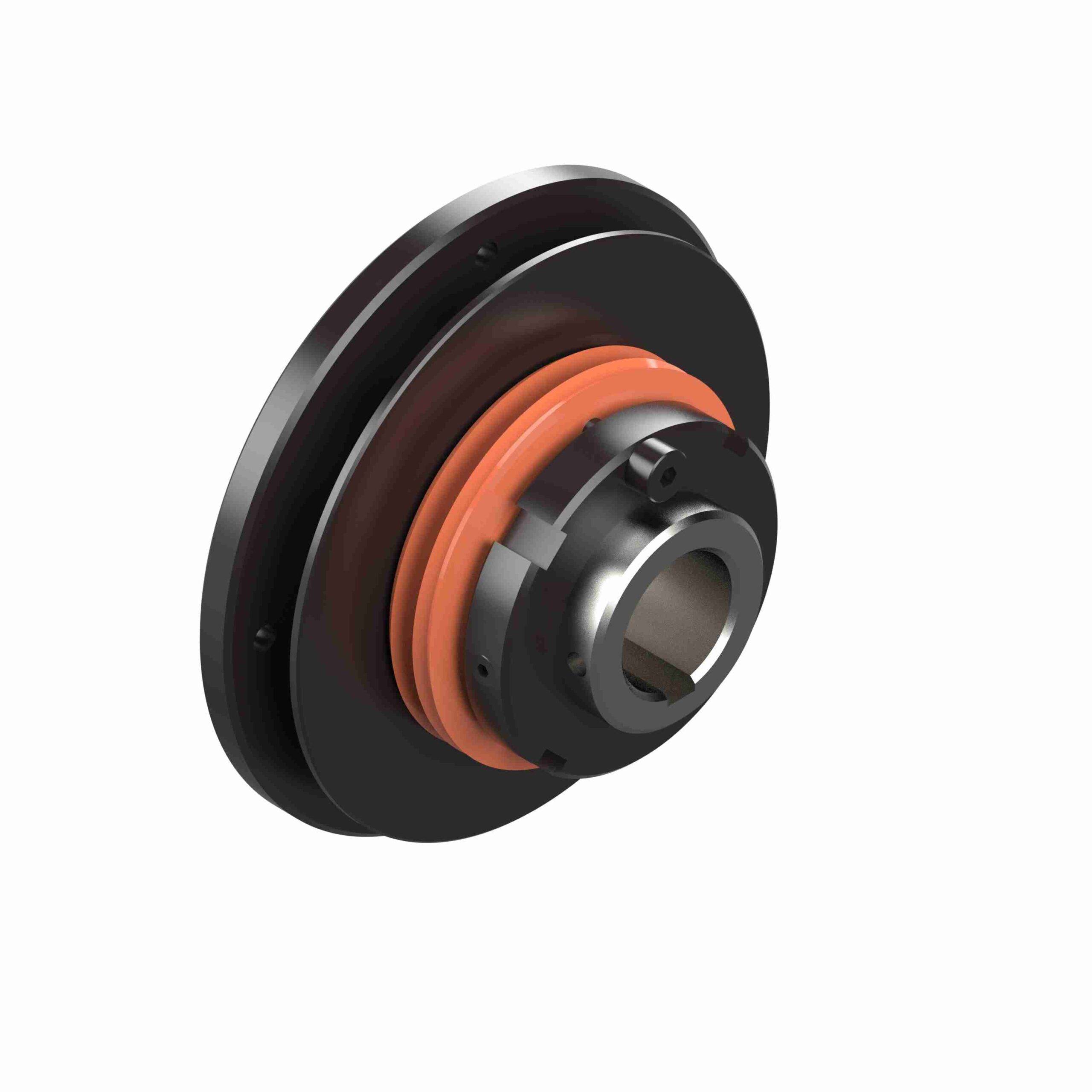

Browning Torq Pro Torque Limiter Model – TP20 – TP20X3/4
$1,441.82
Out of stock
Out of stock
| Recovery Style: | Jog | Hub Diameter (in): | 1.18 in |
|---|---|---|---|
| Sensor Plate: | Yes | Clutch size code: | 20 |
| Spring Diameter: | 2.13 | Series / Model: | TP20 |
| Outside Diameter (in): | 3.5 in | Nut Diameter (in): | 1.89 in |
| Reset Type: | Automatic | Total Length (mm): | 46.99 mm |
| Detection Method: | Ball Detent | Number of Bolt Holes: | 4 |
| Torque [Min] (N-m): | 9.605 | Bore Shape: | Straight Bore |
| Type: | Torque Overload Devices | Disconnect Method: | Ball Detent |
| Outside Diameter (mm): | 88.9 mm | Total Length (in): | 1.85 in |
| Disc Spring Color: | Orange | Unit Accuracy: | 0.1 |
| Bolt Hole Thread Size (in): | 10, 24 in | Backlash: | Small |
| Mounting Bolt Circle Diameter: | 3 | Torq/Pro Sprockets: | STP20 |
| Sensor Travel: | 0.07 | Bore Size (in): | 0.75 in |
| Speed Limit: | 700 | Bore Size (mm): | 19.05 mm |
| Nominal Bore (in): | 0.75 in | Torque [Max] (N-m): | 45.2 |
| Torque Capacity [Min] (lb-ft): | 7.08333333333333 | Flange Diameter (in): | 2.44 in |
| Bore (Max) (in): | 0.75 in | Product Type: | Torq Pro Torque Limiter |
| Torque Capacity [Max] (lb-ft): | 33.3333333333333 | Torque Capacity [Max] (in-lb): | 400 |
| Torque Capacity [Min] (in-lb): | 85 | Max RPM: | 700 |
| Bore (Min) (in): | 0.75 in | UPC: | 6, 62288E+11 |
| Weight: | 2.00 LB | Packaged Length: | 4.50 Inches |
| Packaged Width: | 4.50 Inches | Packaged Height: | 3.12 Inches |
| HTC: | 8483.60.8000 | Country of Origin: | Japan |
