- Powder coated epoxy cast iron housing with extended inner ring bearings
- Skwezloc® concentric locking for near perfect concentricity
- Single lip contact seal with black oxide bearing races
- Metric fitting and mounting bolts
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
TB-208TMC

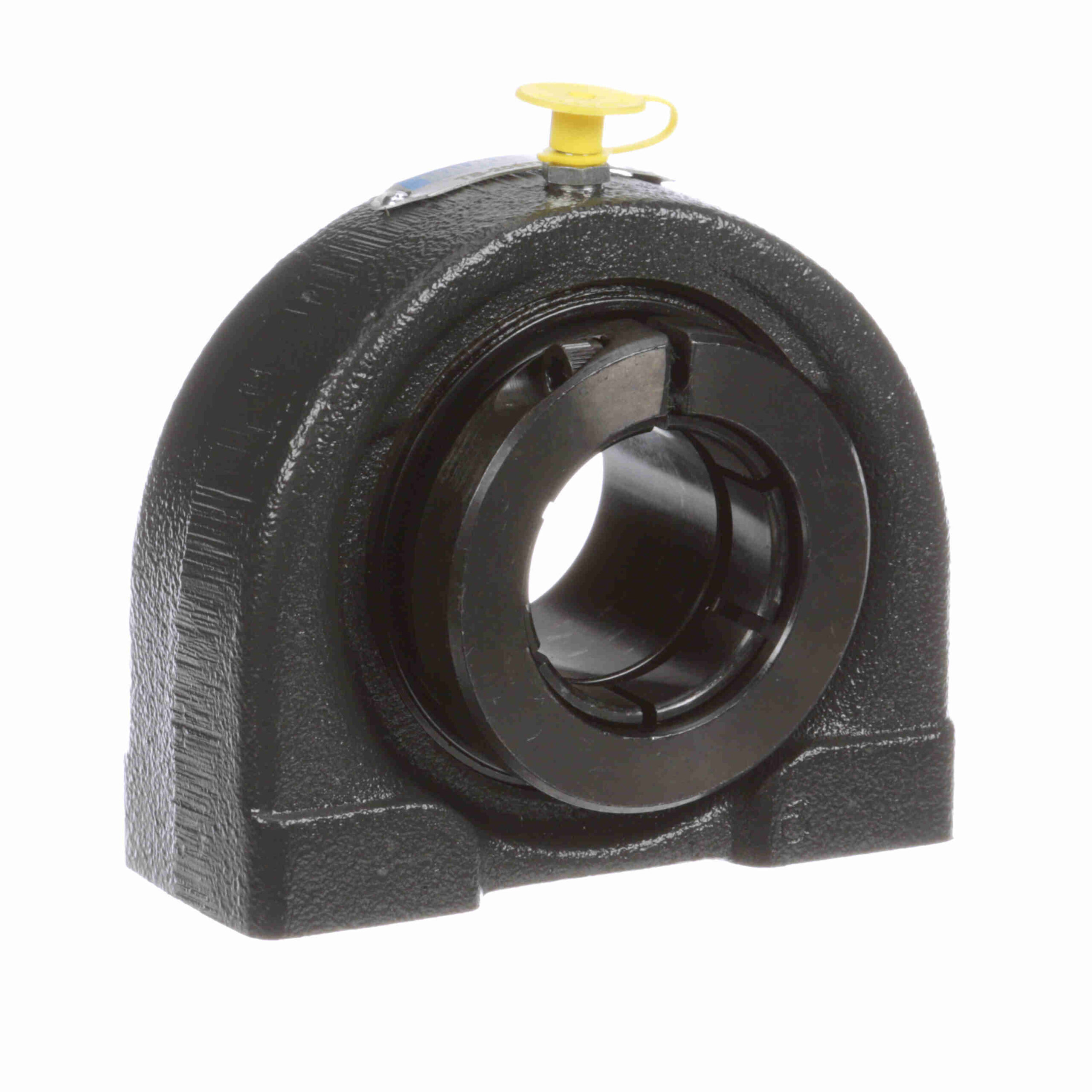

Sealmaster Mounted Cast Iron Tapped Base Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided – Concentric Lock – TB-208TMC
$731.10
Out of stock
Out of stock
| Measure Units: | Metric | Seal Type: | Single Lip Contact Seal |
|---|---|---|---|
| Insert Material: | 52100 Bearing Steel, Black Oxided | Housing Base: | Solid |
| Rolling Element: | Ball Bearing | Internal Clearance: | Standard |
| Bore Shape: | Straight | Misalignment: | ±2.0° Misalignment - Static Only |
| Housing Construction: | One Piece | Replaceable Insert: | Yes |
| Outer Ring Land Profile: | Standard | Bearing Insert Coating: | Black Oxide Coated |
| End Cap: | No | Misalignment Type: | Static Only |
| Platform: | Gold Line Ball Bearing | Housing Color: | Gray |
| Retainer Type: | Land Riding Retainer | Lubrication Type: | Lithium Complex NLGI 2 Grease |
| Grease Fitting Thread Size: | 8 x 1 mm | Housing Type: | Pillow Block, Tapped Base |
| Housing Style: | Pillow Block | Duty/Series: | Standard Duty |
| Locking Type: | Concentric | Fixed vs. Expansion: | Fixed |
| Maximum Speed (RPM): | 4150 rpm | Housing Material: | Cast Iron |
| Inner Race Heat Treat Method: | Zone-Hardened | Ability to Relubricate: | Yes |
| Maximum Operating Temperature (F): | 220 °F | Insert Number: | 5208TMC |
| UPC: | 662461000000 | Weight: | 6.30 LB |
| Packaged Length: | 5 Inches | Packaged Width: | 2 Inches |
| Packaged Height: | 5 Inches | HTC: | 8483.20.8040 |
| Country of Origin: | United States of America |
