- Powder coated epoxy cast iron housing with extended inner ring bearings
- Skwezloc® concentric locking for near perfect concentricity
- Single lip contact seal with black oxide bearing races
- Metric fitting and mounting bolts
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
TB-207TMC

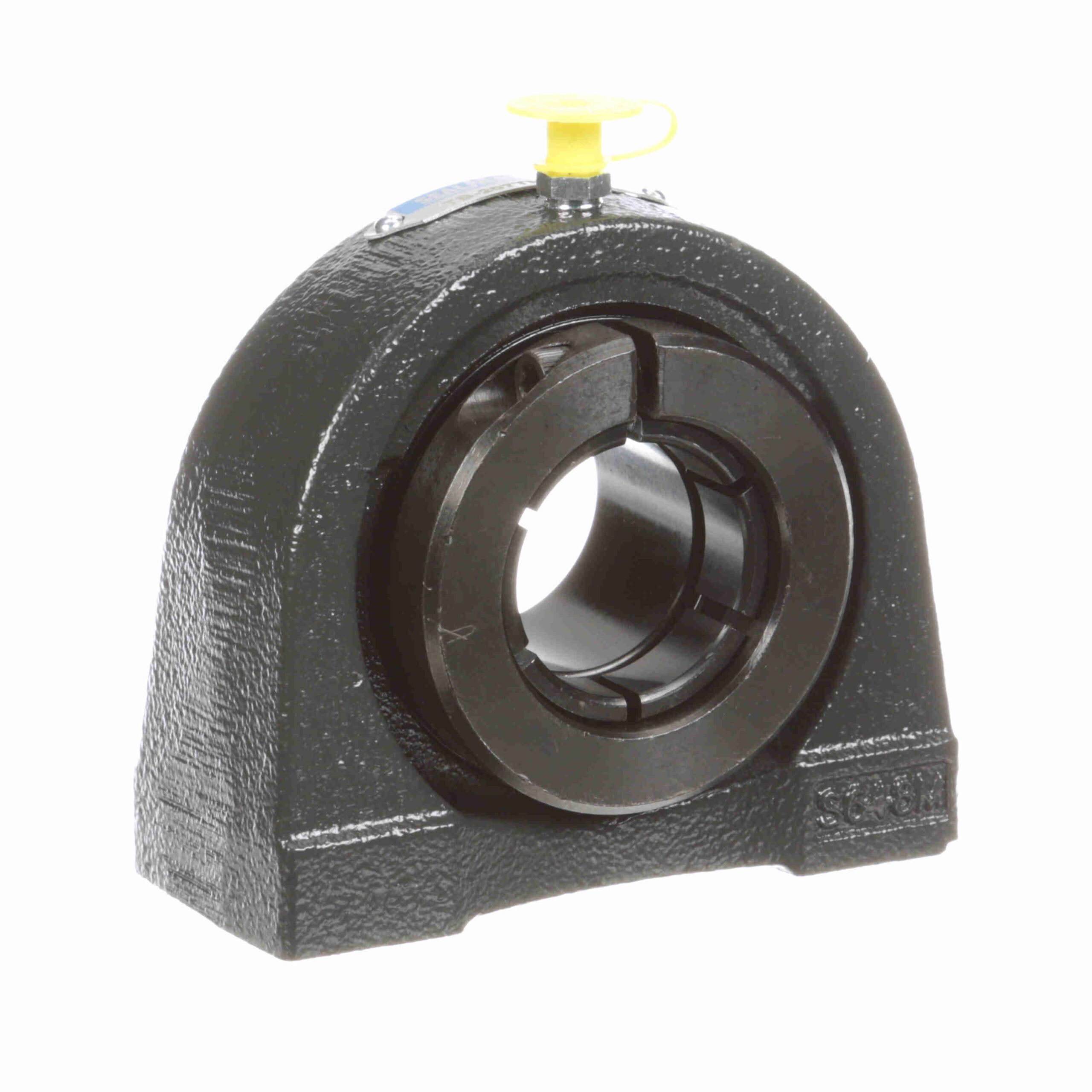

Sealmaster Mounted Cast Iron Tapped Base Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided – Concentric Lock – TB-207TMC
$336.38
Out of stock
Out of stock
| Maximum Operating Temperature: | 220 °F | Expansion: | No |
|---|---|---|---|
| Insert No.: | 5207TMC | Housing Material: | Cast Iron |
| Measure Units: | Metric | Housing Base: | Solid |
| Speed (Max): | 4650 | Housing Type: | Pillow Block, Tapped Base |
| Insert Material: | 52100 Bearing Steel, Black Oxided | Retainer Type: | Land Riding Retainer |
| Rolling Element: | Ball Bearing | Duty Series: | Standard Duty |
| Seal Type: | Single Lip Contact Seal | Bore Shape: | Straight |
| Lubrication: | Lithium Complex NLGI 2 Grease | Inner-Race Heat-Treat Method: | Zone-Hardened |
| Locking Type: | Concentric | Misalignment: | ±2.0° Misalignment - Static Only |
| Internal Clearance: | Standard | Housing Construction: | One Piece |
| Relubricatable: | Yes | Replaceable Insert: | Yes |
| Bearing Insert Coating: | Black Oxide Coated | Housing Color: | Gray |
| End Cap: | No | Platform: | Gold Line Ball Bearing |
| Misalignment Type: | Static Only | Outer Ring Land Profile: | Standard |
| Grease Fitting Thread Size: | 8 x 1 mm | UPC: | 662461254097 |
| Weight: | 4.80 LB | Packaged Length: | 2 Inches |
| Packaged Width: | 5 Inches | Packaged Height: | 5 Inches |
| HTC: | 8483.20.8040 | Country of Origin: | United States of America |
