- Powder coated epoxy cast iron housing with extended inner ring bearings
- Zone hardened inner ring with 120° spacing setscrew with diamond faceted setscrews
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

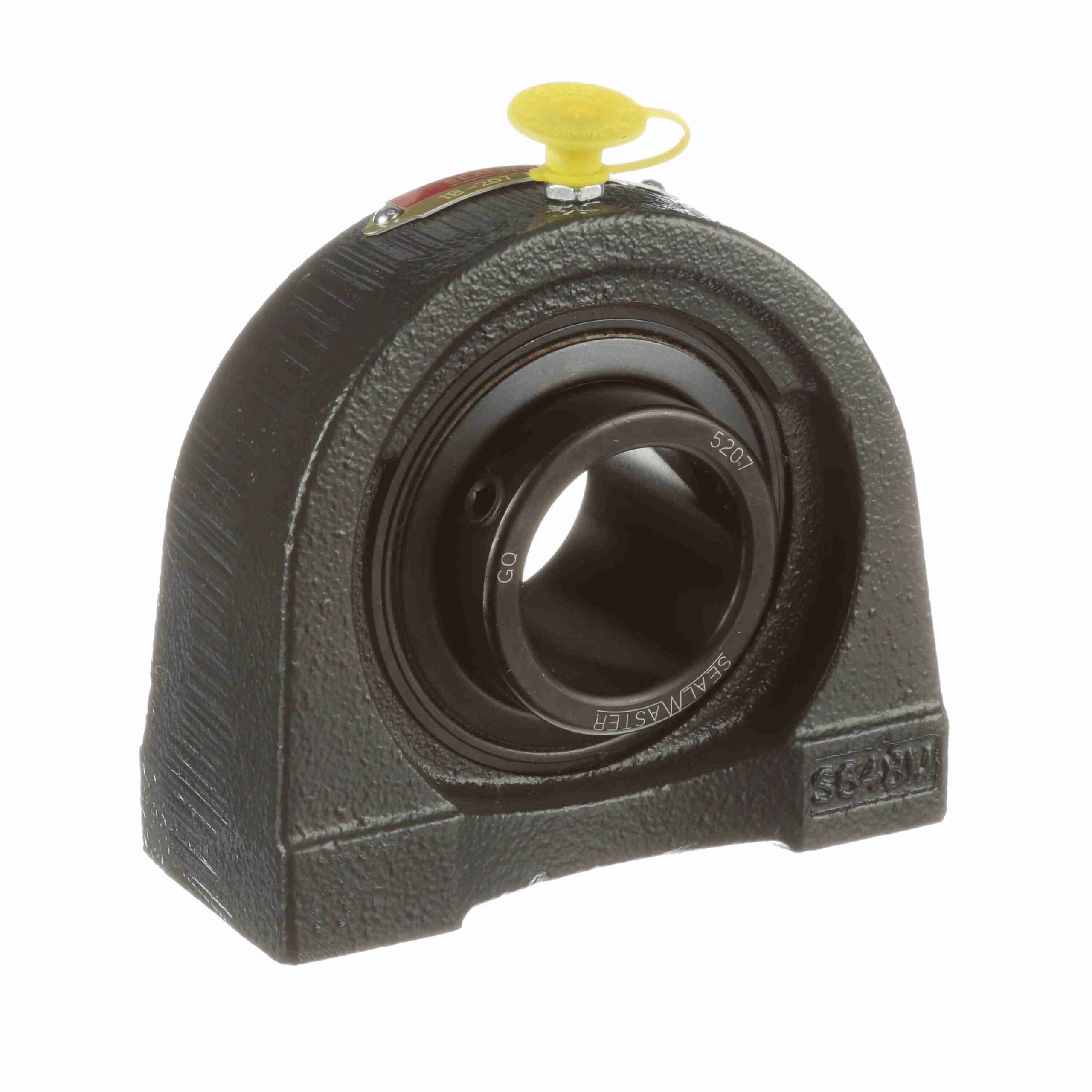

TB-207
Sealmaster Mounted Cast Iron Tapped Base Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – TB-207
$265.93
Out of stock
Out of stock
| Housing Base: | Solid | Rolling Element: | Ball Bearing |
|---|---|---|---|
| Measure Units: | Metric | Insert Material: | 52100 Bearing Steel, Black Oxided |
| Seal Type: | Felt Labyrinth Seal | Housing Construction: | One Piece |
| Internal Clearance: | Standard | Misalignment: | ±2.0° Misalignment - Static Only |
| Set Screw Thread: | 5/16-24 UNF X .25 | Bore Shape: | Straight |
| Housing Color: | Gray | Platform: | Gold Line Ball Bearing |
| End Cap: | No | Replaceable Insert: | Yes |
| Outer Ring Land Profile: | Standard | Misalignment Type: | Static Only |
| Bearing Insert Coating: | Black Oxide Coated | Grease Fitting Thread Size: | 46844 |
| Housing Material: | Cast Iron | Retainer Type: | Land Riding Retainer |
| Housing Style: | Pillow Block | Maximum Speed (RPM): | 4650 rpm |
| Locking Type: | Setscrew | Fixed vs. Expansion: | Fixed |
| Lubrication Type: | Lithium Complex NLGI 2 Grease | Duty/Series: | Standard Duty |
| Housing Type: | Pillow Block, Tapped Base | Maximum Operating Temperature (F): | 220 °F |
| Ability to Relubricate: | Yes | Insert Number: | 5207 |
| Inner Race Heat Treat Method: | Zone-Hardened | UPC: | 662461000000 |
| Weight: | 4.18 LB | Packaged Length: | 5 Inches |
| Packaged Width: | 2 Inches | Packaged Height: | 5 Inches |
| HTC: | 8483.20.8040 | Country of Origin: | United States of America |
