- Powder coated epoxy cast iron housing with extended inner ring bearings
- Zone hardened inner ring with 120° spacing setscrew with diamond faceted setscrews
- Single lip contact seal with black oxide bearing races
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
TB-12C

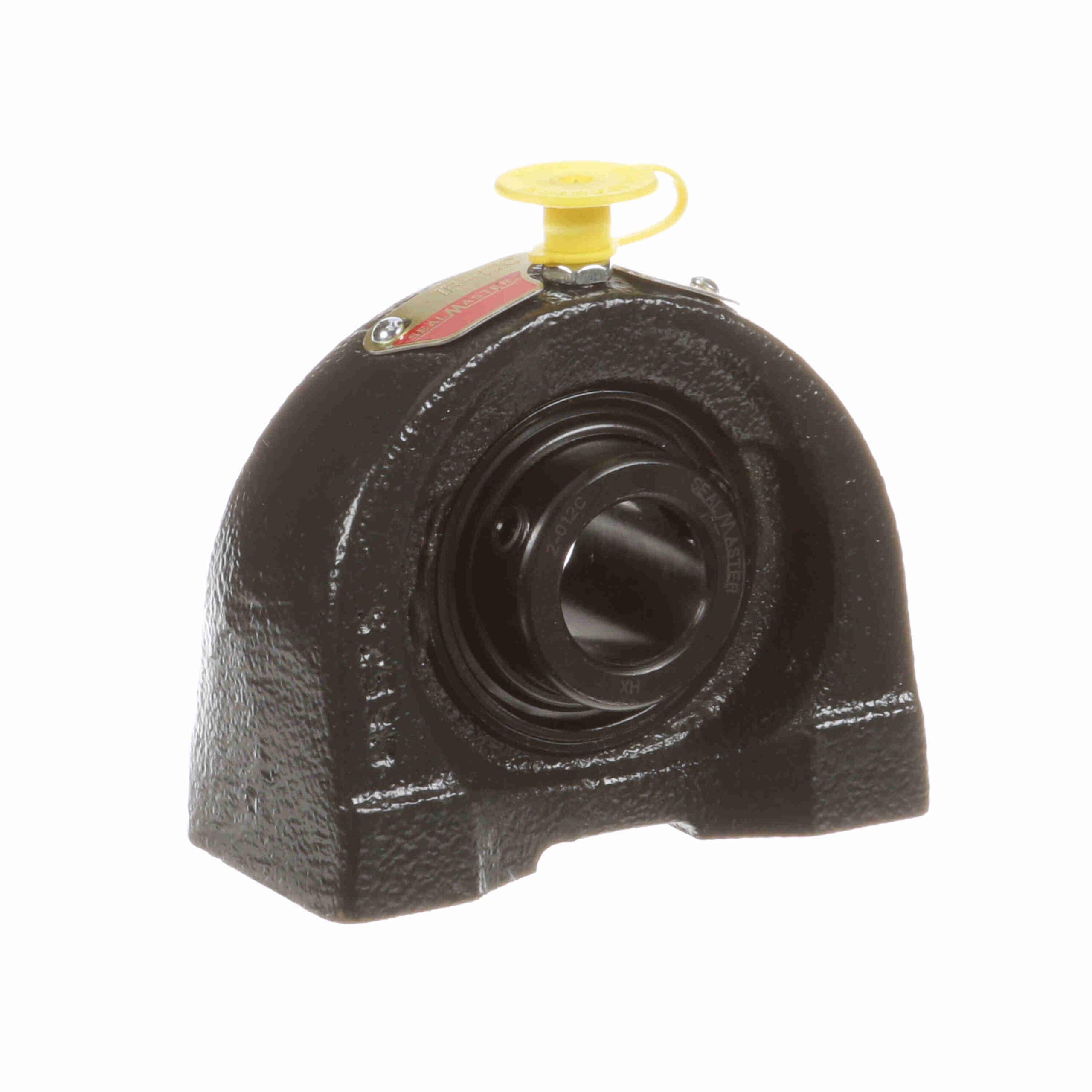

Sealmaster Mounted Cast Iron Tapped Base Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – TB-12C
$135.62
Out of stock
Out of stock
| Seal Type: | Single Lip Contact Seal | Insert Material: | 52100 Bearing Steel, Black Oxided |
|---|---|---|---|
| Insert No.: | 2-012C | Expansion: | No |
| Housing Base: | Solid | Retainer Type: | Land Riding Retainer |
| Measure Units: | Inch | Housing Material: | Cast Iron |
| Speed (Max): | 6450 | Maximum Operating Temperature: | 220 °F |
| Housing Type: | Pillow Block, Tapped Base | Rolling Element: | Ball Bearing |
| Duty Series: | Standard Duty | Internal Clearance: | Standard |
| Locking Type: | Setscrew | Lubrication: | Lithium Complex NLGI 2 Grease |
| Housing Construction: | One Piece | Inner-Race Heat-Treat Method: | Zone-Hardened |
| Bore Shape: | Straight | Relubricatable: | Yes |
| Misalignment: | ±2.0° Misalignment - Static Only | Housing Color: | Gray |
| Misalignment Type: | Static Only | Replaceable Insert: | Yes |
| Bearing Insert Coating: | Black Oxide Coated | End Cap: | No |
| Platform: | Gold Line Ball Bearing | Outer Ring Land Profile: | Standard |
| UPC: | 662461024362 | Weight: | 1.65 LB |
| Packaged Length: | 4 Inches | Packaged Width: | 1.5 Inches |
| Packaged Height: | 3.94 Inches | HTC: | 8483.20.8040 |
| Country of Origin: | United States of America |
