- Morse and Browning offer a complete line of Torque Overload Devices to protect machinery from overloads or jams
- Browning torque limiters slip under excessive load but automatically carry the desired load after the excess has been removed
- Browning torque limiters are friction type devices that reset to any position
T65LX 2 1/2

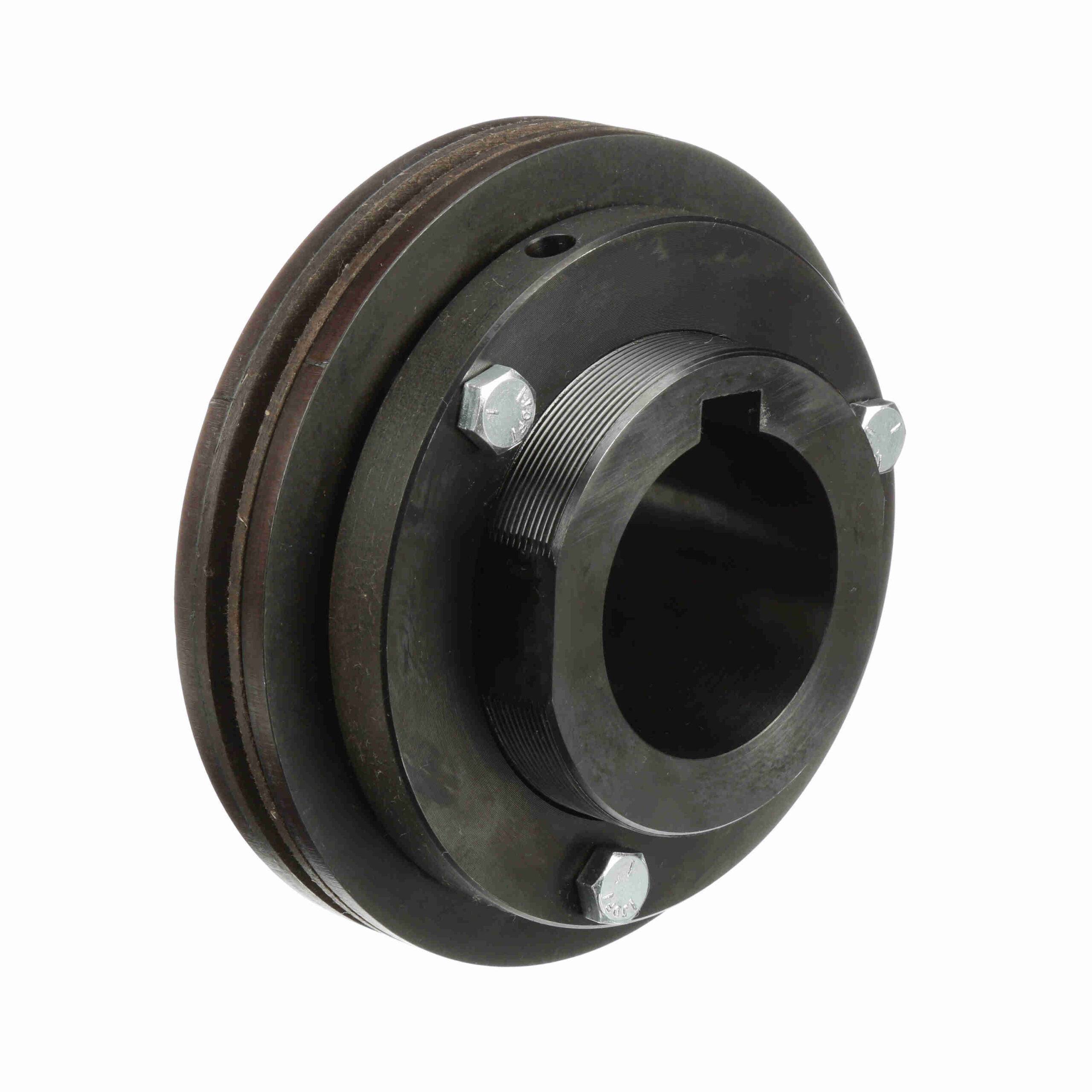

Browning Torque Limiter Model – T65L – T65LX 2 1/2
$1,498.63
Out of stock
Out of stock
| Detection Method: | Friction Pad | Sensor Plate: | No |
|---|---|---|---|
| F (1 Spring): | 1.375 | Bore Shape: | Straight Bore |
| Sprocket: | T65L | Backlash: | Zero |
| Recovery Style: | Automatic | Torque [Max] (in-Ibs) (2 Spring): | 8, 800 |
| Reset Type: | Automatic | Total Length (mm): | 92.075 mm |
| Outside Diameter (in): | 6.5 in | Outside Diameter (mm): | 165.1 mm |
| Unit Accuracy: | 0.25 | Disconnect Method: | Friction Pad |
| Total Length (in): | 3.625 in | Torque [Max] (in-Ibs) (1 Spring): | 4, 800 |
| F (2 Spring): | 1.5 | Type: | Torque Overload Devices |
| Series / Model: | T65L | Bore Size (mm): | 63.5 mm |
| Bore Size (in): | 2.5 in | Max RPM: | 1, 000 |
| Product Type: | Torque Limiter | Torque [Max] (N-m): | 542.4 |
| Bore (Min) (in): | 2.5 in | Bore (Max) (in): | 2.5 in |
| Torque Capacity [Min] (lb-ft): | 0 | Torque Capacity [Max] (in-lb): | 4, 800 |
| Torque Capacity [Max] (lb-ft): | 733.333333333333 | ||
| Minimum Sprocket Teeth: | 733.333333333333 |
