- Morse and Browning offer a complete line of Torque Overload Devices to protect machinery from overloads or jams
- Browning torque limiters slip under excessive load but automatically carry the desired load after the excess has been removed
- Browning torque limiters are friction type devices that reset to any position
T55LX1

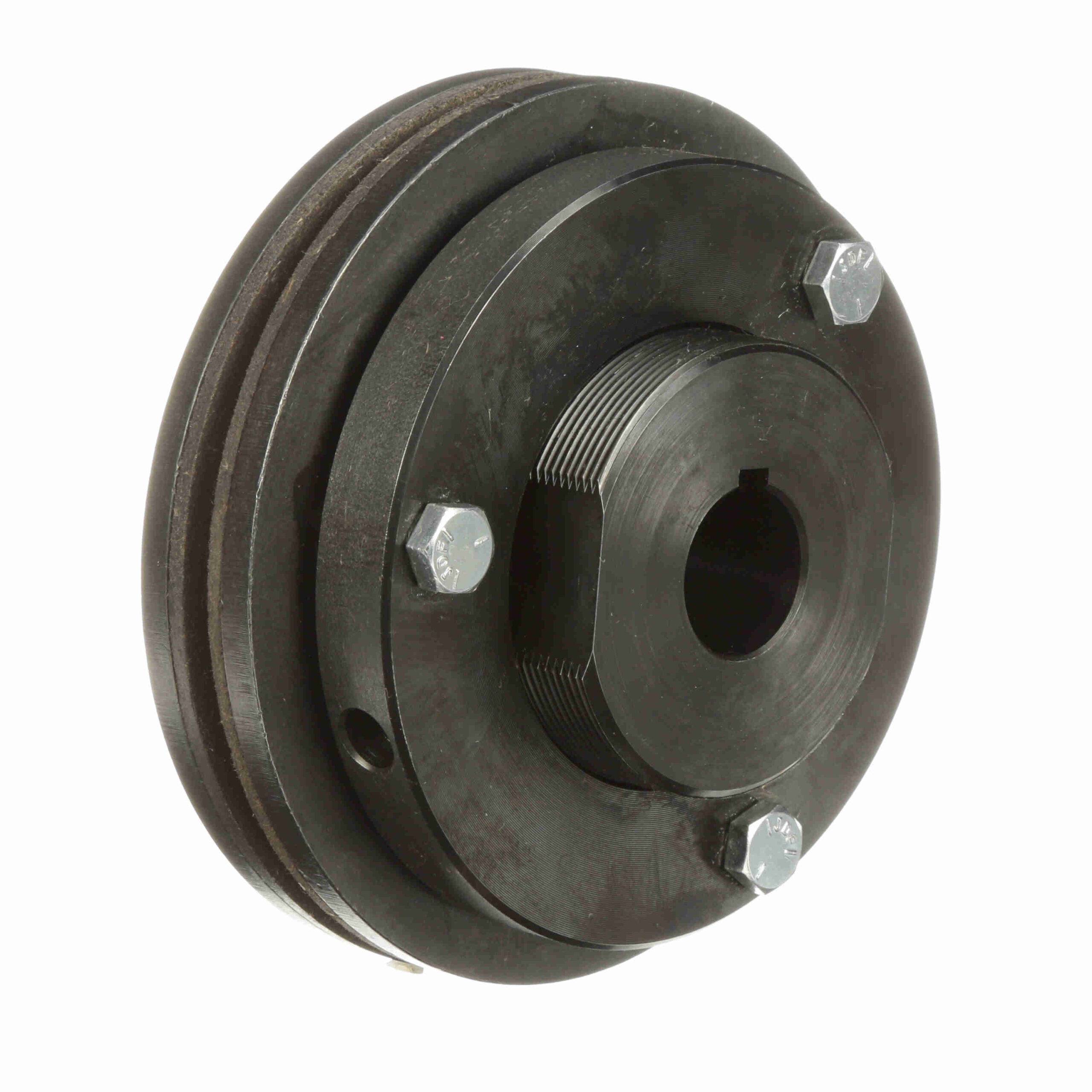

Browning Torque Limiter Model – T55L – T55LX1
$1,079.54
Out of stock
Out of stock
| Total Length (mm): | 82.55 mm | Detection Method: | Friction Pad |
|---|---|---|---|
| Bore Size (in): | 1 in | Total Length (in): | 3.25 in |
| Bore Size (mm): | 25.4 mm | F (2 Spring): | 1.375 |
| Disconnect Method: | Friction Pad | Torque [Max] (in-Ibs) (1 Spring): | 3, 800 |
| Backlash: | Zero | Bore Shape: | Straight Bore |
| Sprocket: | T55L | Outside Diameter (mm): | 139.7 mm |
| F (1 Spring): | 1.25 | Torque [Max] (in-Ibs) (2 Spring): | 6, 800 |
| Recovery Style: | Automatic | Type: | Torque Overload Devices |
| Unit Accuracy: | 0.25 | Series / Model: | T55L |
| Sensor Plate: | No | Outside Diameter (in): | 5.5 in |
| Reset Type: | Automatic | Torque [Max] (N-m): | 429.4 |
| Product Type: | Torque Limiter | Max RPM: | 1, 000 |
| Bore (Max) (in): | 1 in | Torque Capacity [Max] (in-lb): | 3, 800 |
| Bore (Min) (in): | 1 in | Torque Capacity [Min] (lb-ft): | 0 |
| Torque Capacity [Max] (lb-ft): | 566.666666666667 | Minimum Sprocket Teeth: | #50 (32 Teeth) |
