- Morse and Browning offer a complete line of Torque Overload Devices to protect machinery from overloads or jams
- Browning torque limiters slip under excessive load but automatically carry the desired load after the excess has been removed
- Browning torque limiters are friction type devices that reset to any position

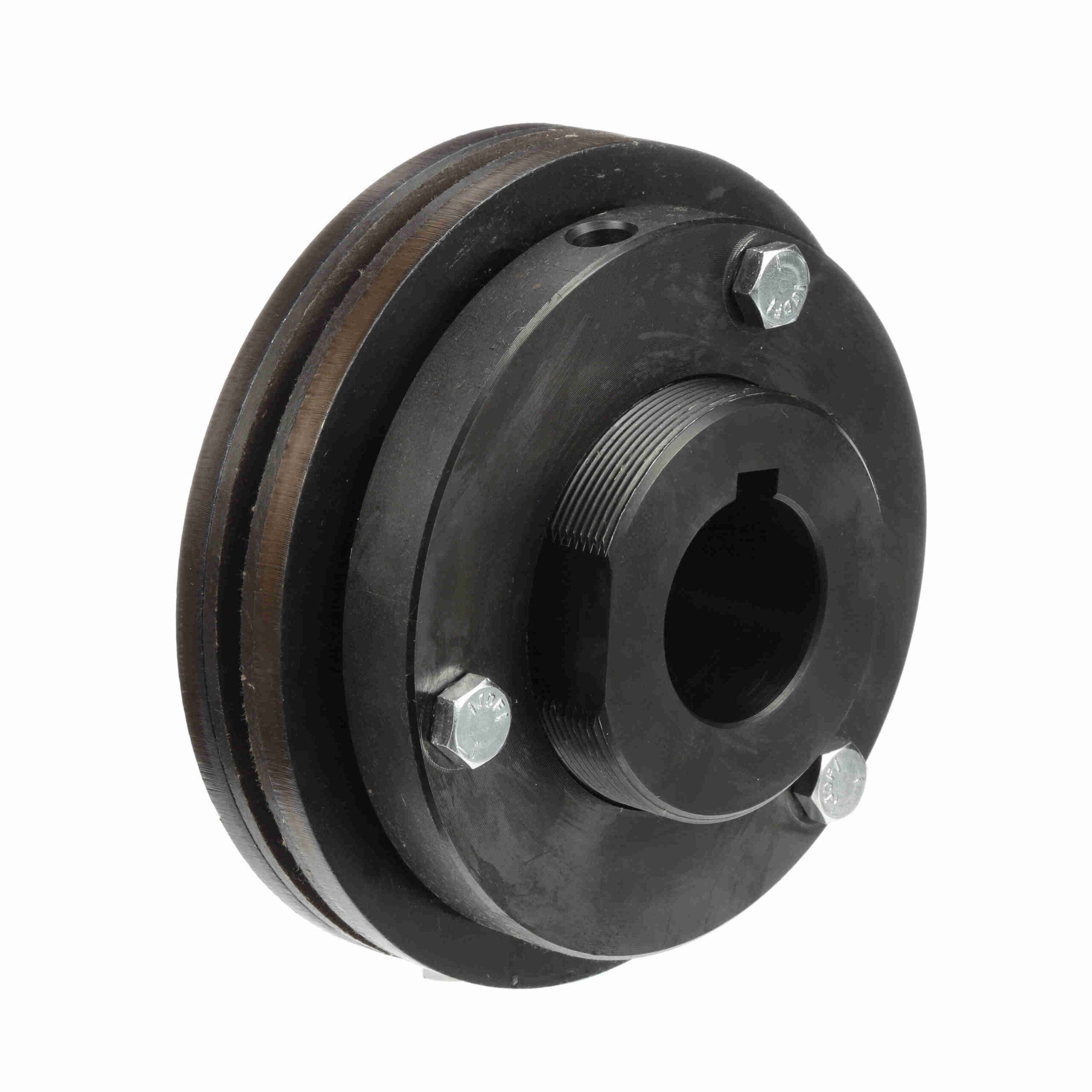

T55LX 1 7/16
Browning Torque Limiter Model – T55L – T55LX 1 7/16
$842.05
Out of stock
Out of stock
| Outside Diameter (in): | 5.5 in | Series / Model: | T55L |
|---|---|---|---|
| Torque [Max] (in-Ibs) (2 Spring): | 6, 800 | Bore Size (mm): | 36.5125 mm |
| Backlash: | Zero | Outside Diameter (mm): | 139.7 mm |
| Torque [Max] (in-Ibs) (1 Spring): | 3, 800 | Reset Type: | Automatic |
| Sprocket: | T55L | Disconnect Method: | Friction Pad |
| Bore Shape: | Straight Bore | Total Length (mm): | 82.55 mm |
| Total Length (in): | 3.25 in | Recovery Style: | Automatic |
| F (1 Spring): | 1.25 | Unit Accuracy: | 0.25 |
| F (2 Spring): | 1.375 | Detection Method: | Friction Pad |
| Sensor Plate: | No | Type: | Torque Overload Devices |
| Bore Size (in): | 1.4375 in | Product Type: | Torque Limiter |
| Max RPM: | 1, 000 | Torque [Max] (N-m): | 429.4 |
| Bore (Max) (in): | 1.4375 in | Bore (Min) (in): | 1.4375 in |
| Torque Capacity [Min] (lb-ft): | 0 | Torque Capacity [Max] (in-lb): | 3, 800 |
| Torque Capacity [Max] (lb-ft): | 566.666666666667 | Bore Type: | Finished w/ Keyway |
| Minimum Sprocket Teeth: | #50 (32 Teeth) | 1 | 0 |
