- Morse and Browning offer a complete line of Torque Overload Devices to protect machinery from overloads or jams
- Browning torque limiters slip under excessive load but automatically carry the desired load after the excess has been removed
- Browning torque limiters are friction type devices that reset to any position
T55LX 1 5/8

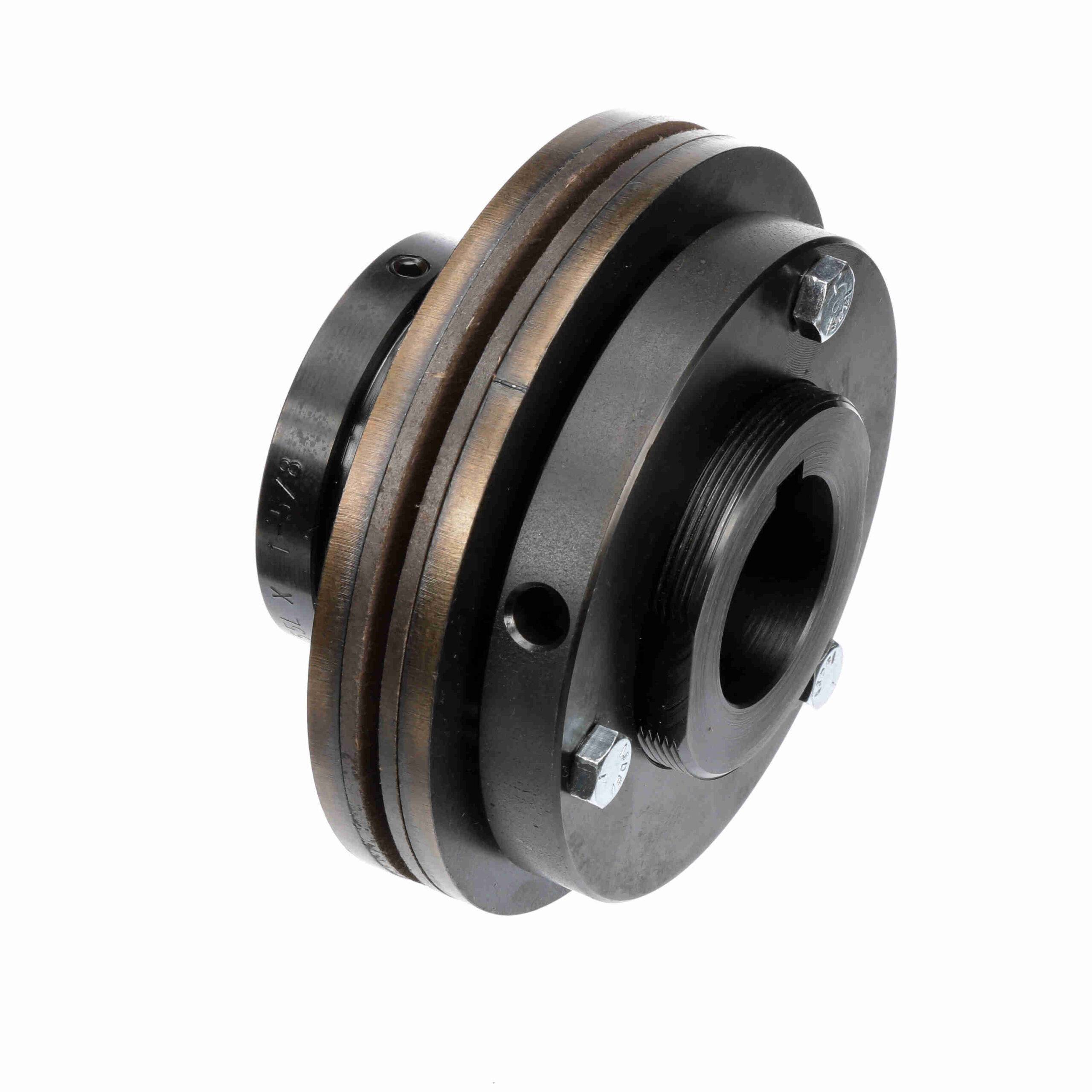

Browning Torque Limiter Model – T55L – T55LX 1 5/8
$1,016.21
Out of stock
Out of stock
| Bore Shape: | Straight Bore | Total Length (mm): | 82.55 mm |
|---|---|---|---|
| Sensor Plate: | No | F (2 Spring): | 1.375 |
| Backlash: | Zero | Series / Model: | T55L |
| Reset Type: | Automatic | Torque [Max] (in-Ibs) (2 Spring): | 6, 800 |
| Detection Method: | Friction Pad | Torque [Max] (in-Ibs) (1 Spring): | 3, 800 |
| Outside Diameter (mm): | 139.7 mm | Outside Diameter (in): | 5.5 in |
| Bore Size (in): | 1.625 in | Bore Size (mm): | 41.275 mm |
| Sprocket: | T55L | Total Length (in): | 3.25 in |
| Recovery Style: | Automatic | Type: | Torque Overload Devices |
| Unit Accuracy: | 0.25 | F (1 Spring): | 1.25 |
| Disconnect Method: | Friction Pad | Torque [Max] (N-m): | 429.4 |
| Max RPM: | 1, 000 | Product Type: | Torque Limiter |
| Torque Capacity [Max] (lb-ft): | 566.666666666667 | Torque Capacity [Max] (in-lb): | 3, 800 |
| Torque Capacity [Min] (lb-ft): | 0 | Bore (Max) (in): | 1.625 in |
| Bore (Min) (in): | 1.625 in | Minimum Sprocket Teeth: | #50 (32 Teeth) |
| 1 | 0 |
