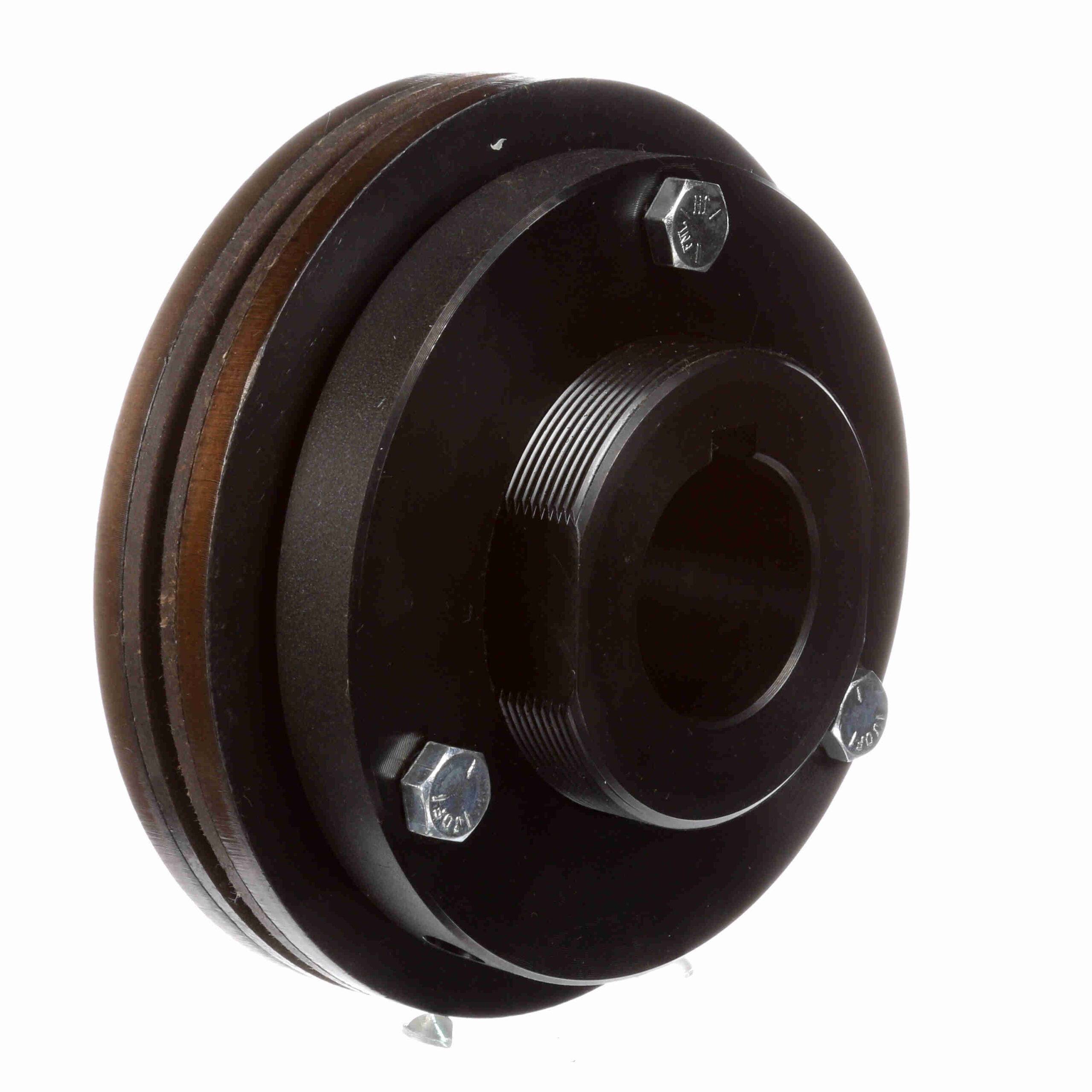

Browning Torque Limiter Model – T55L – T55LX 1 1/2

SKU: 1296540 Category: Mechanical Clutches

$842.05

Out of stock

Out of stock

Product Information
Specifications

Morse and Browning offer a complete line of Torque Overload Devices to protect machinery from overloads or jams
Browning torque limiters slip under excessive load but automatically carry the desired load after the excess has been removed
Browning torque limiters are friction type devices that reset to any position

Unit Accuracy:	0.25	Torque [Max] (in-Ibs) (2 Spring):	6, 800
Bore Shape:	Straight Bore	Outside Diameter (in):	5.5 in
Sensor Plate:	No	Total Length (mm):	82.55 mm
Sprocket:	T55L	Outside Diameter (mm):	139.7 mm
Detection Method:	Friction Pad	Series / Model:	T55L
F (1 Spring):	1.25	Disconnect Method:	Friction Pad
F (2 Spring):	1.375	Reset Type:	Automatic
Type:	Torque Overload Devices	Bore Size (in):	1.5 in
Torque [Max] (in-Ibs) (1 Spring):	3, 800	Bore Size (mm):	38.1 mm
Total Length (in):	3.25 in	Recovery Style:	Automatic
Backlash:	Zero	Max RPM:	1, 000
Product Type:	Torque Limiter	Torque [Max] (N-m):	429.4
Bore (Min) (in):	1.5 in	Torque Capacity [Min] (lb-ft):	0
Bore (Max) (in):	1.5 in	Torque Capacity [Max] (in-lb):	3, 800
Torque Capacity [Max] (lb-ft):	566.666666666667	Bore Type:	Finished w/ Keyway
Minimum Sprocket Teeth:	#50 (32 Teeth)	1	0
