- Morse and Browning offer a complete line of Torque Overload Devices to protect machinery from overloads or jams
- Browning torque limiters slip under excessive load but automatically carry the desired load after the excess has been removed
- Browning torque limiters are friction type devices that reset to any position
T45LX1

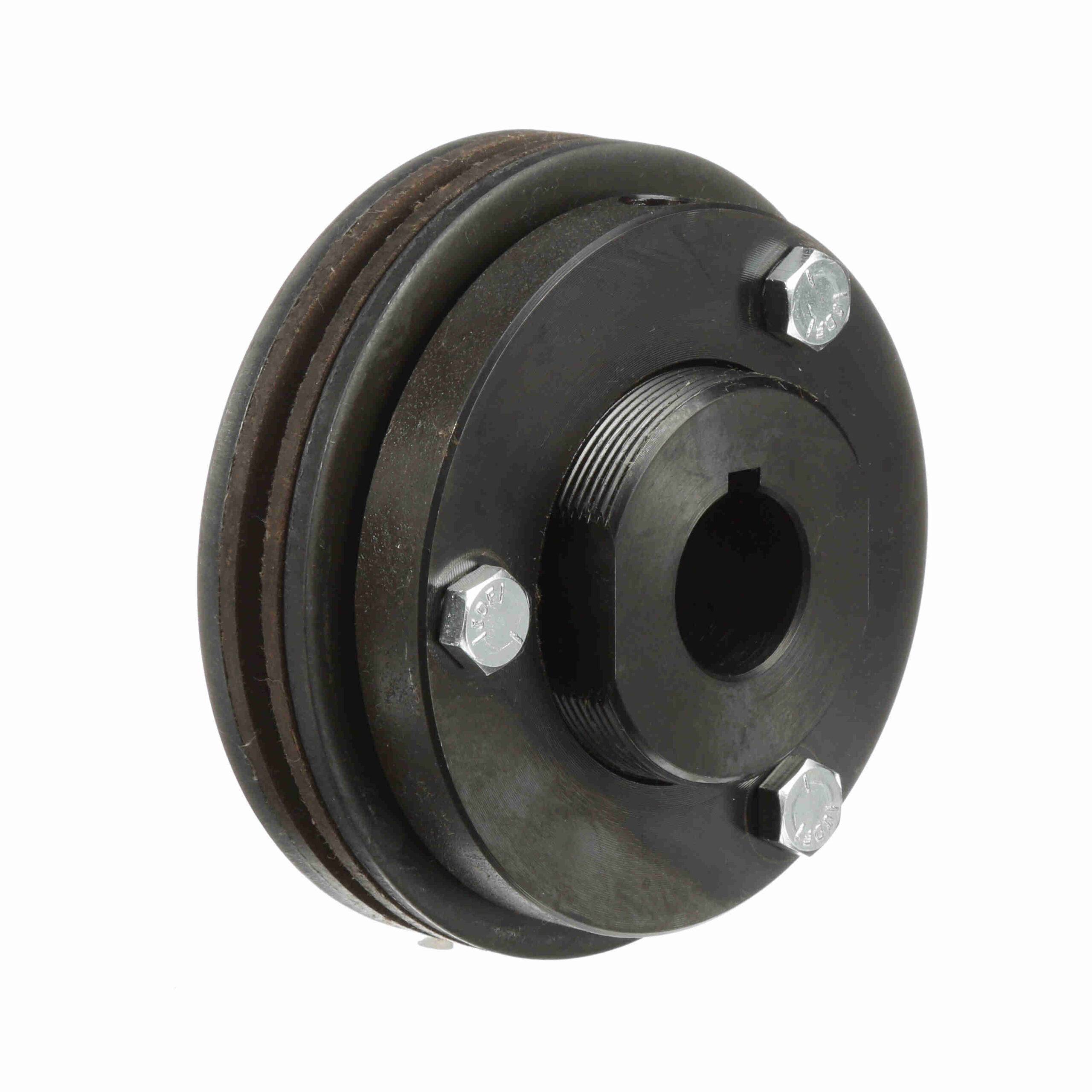

Browning Torque Limiter Model – T45L – T45LX1
$790.27
Out of stock
Out of stock
| Bore Size (mm): | 25.4 mm | Backlash: | Zero |
|---|---|---|---|
| Torque [Max] (in-Ibs) (2 Spring): | 4, 900 | Series / Model: | T45L |
| Outside Diameter (mm): | 114.3 mm | F (1 Spring): | 1.0625 |
| Unit Accuracy: | 0.25 | Type: | Torque Overload Devices |
| Total Length (in): | 2.75 in | Recovery Style: | Automatic |
| F (2 Spring): | 1.21875 | Torque [Max] (in-Ibs) (1 Spring): | 2, 800 |
| Total Length (mm): | 69.85 mm | Sensor Plate: | No |
| Detection Method: | Friction Pad | Sprocket: | T45L |
| Disconnect Method: | Friction Pad | Bore Size (in): | 1 in |
| Reset Type: | Automatic | Bore Shape: | Straight Bore |
| Outside Diameter (in): | 4.5 in | Torque [Max] (N-m): | 316.4 |
| Product Type: | Torque Limiter | Max RPM: | 1, 000 |
| Bore (Min) (in): | 1 in | Bore (Max) (in): | 1 in |
| Torque Capacity [Max] (in-lb): | 2, 800 | Torque Capacity [Max] (lb-ft): | 408.333333333333 |
| Torque Capacity [Min] (lb-ft): | 0 | Bore Type: | Finished w/ Keyway |
| Minimum Sprocket Teeth: | #40 (32 Teeth) | 1 | 0 |
