- Morse and Browning offer a complete line of Torque Overload Devices to protect machinery from overloads or jams
- Browning torque limiters slip under excessive load but automatically carry the desired load after the excess has been removed
- Browning torque limiters are friction type devices that reset to any position
T45LX 1 1/8

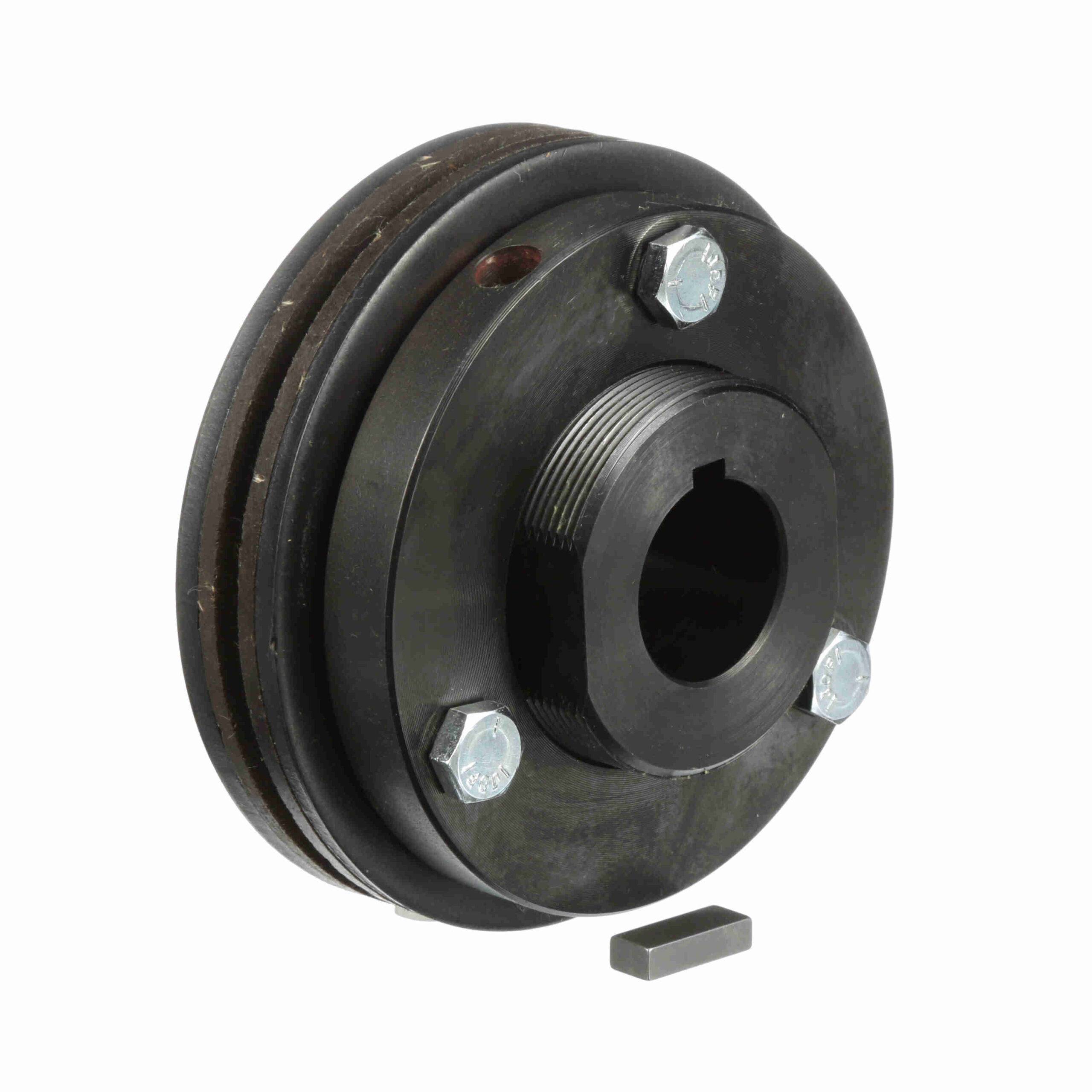

Browning Torque Limiter Model – T45L – T45LX 1 1/8
$790.27
Out of stock
Out of stock
| Outside Diameter (mm): | 114.3 mm | Sprocket: | T45L |
|---|---|---|---|
| Detection Method: | Friction Pad | Type: | Torque Overload Devices |
| Series / Model: | T45L | Unit Accuracy: | 0.25 |
| Disconnect Method: | Friction Pad | Outside Diameter (in): | 4.5 in |
| Total Length (mm): | 69.85 mm | Reset Type: | Automatic |
| F (2 Spring): | 1.21875 | Bore Size (in): | 1.125 in |
| Backlash: | Zero | Torque [Max] (in-Ibs) (2 Spring): | 4, 900 |
| Recovery Style: | Automatic | Bore Shape: | Straight Bore |
| Bore Size (mm): | 28.575 mm | Torque [Max] (in-Ibs) (1 Spring): | 2, 800 |
| Sensor Plate: | No | Total Length (in): | 2.75 in |
| F (1 Spring): | 1.0625 | Max RPM: | 1, 000 |
| Product Type: | Torque Limiter | Torque [Max] (N-m): | 316.4 |
| Bore (Max) (in): | 1.125 in | Torque Capacity [Max] (lb-ft): | 408.333333333333 |
| Torque Capacity [Min] (lb-ft): | 0 | Bore (Min) (in): | 1.125 in |
| Torque Capacity [Max] (in-lb): | 2, 800 | Minimum Sprocket Teeth: | #40 (32 Teeth) |
| 1 | 0 |
