- Morse and Browning offer a complete line of Torque Overload Devices to protect machinery from overloads or jams
- Browning torque limiters slip under excessive load but automatically carry the desired load after the excess has been removed
- Browning torque limiters are friction type devices that reset to any position
T35LX7/8

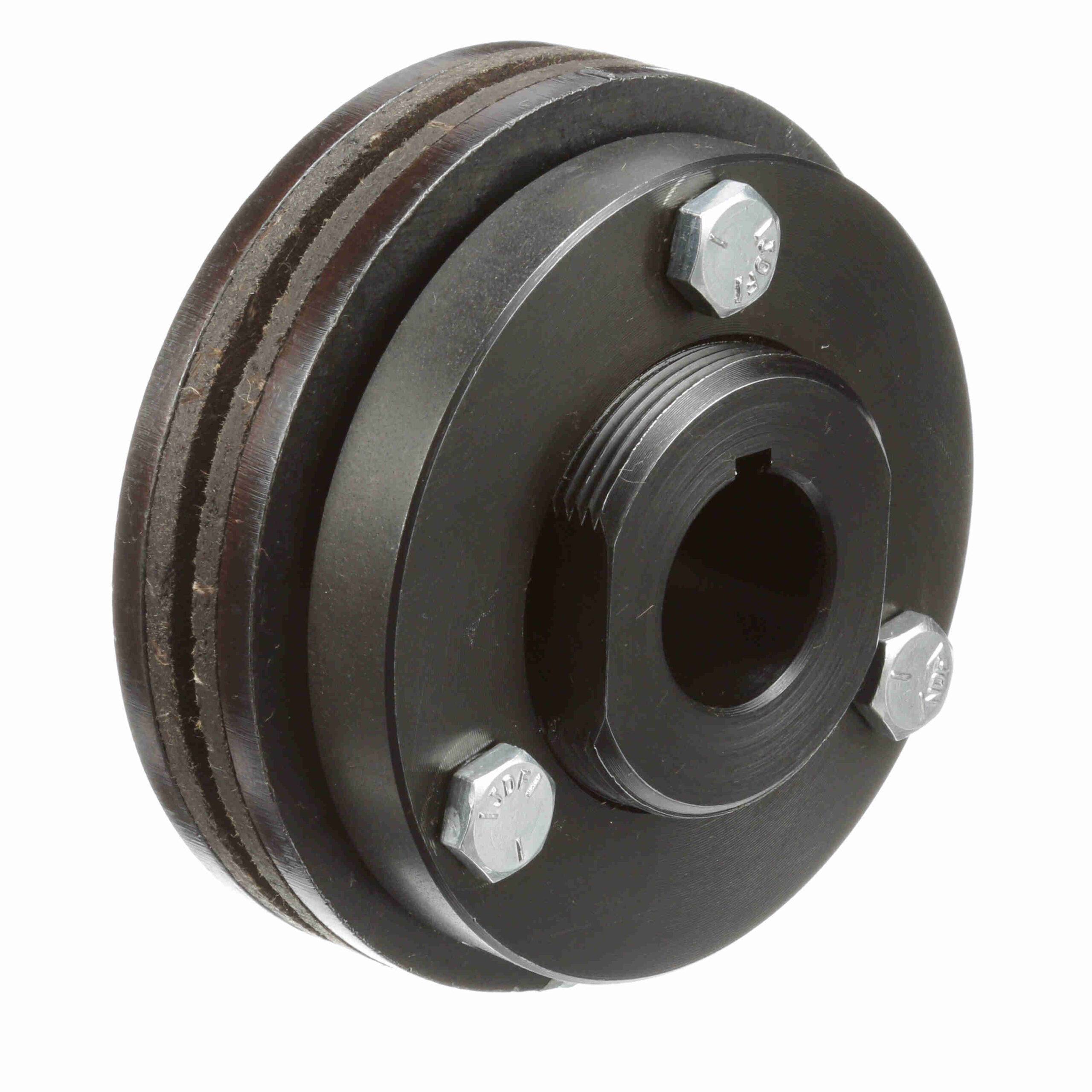

Browning Torque Limiter Model – T35L – T35LX7/8
$558.37
Out of stock
Out of stock
| Sensor Plate: | No | Sprocket: | T35L |
|---|---|---|---|
| Bore Shape: | Straight Bore | Type: | Torque Overload Devices |
| Torque [Max] (in-Ibs) (2 Spring): | 3, 000 | Backlash: | Zero |
| Outside Diameter (mm): | 88.9 mm | Unit Accuracy: | 0.25 |
| Disconnect Method: | Friction Pad | Total Length (mm): | 57.15 mm |
| F (1 Spring): | 0.875 | F (2 Spring): | 0.9375 |
| Bore Size (mm): | 22.225 mm | Series / Model: | T35L |
| Bore Size (in): | 0.875 in | Detection Method: | Friction Pad |
| Torque [Max] (in-Ibs) (1 Spring): | 1, 800 | Outside Diameter (in): | 3.5 in |
| Reset Type: | Automatic | Recovery Style: | Automatic |
| Total Length (in): | 2.25 in | Torque [Max] (N-m): | 203.4 |
| Product Type: | Torque Limiter | Max RPM: | 1, 400 |
| Bore (Min) (in): | 0.875 in | Torque Capacity [Max] (in-lb): | 1, 800 |
| Torque Capacity [Max] (lb-ft): | 250 | Bore (Max) (in): | 0.875 in |
| Torque Capacity [Min] (lb-ft): | 0 | Minimum Sprocket Teeth: | #40 (26 Teeth) |
| 1 | 0 |
