- Morse and Browning offer a complete line of Torque Overload Devices to protect machinery from overloads or jams
- Browning torque limiters slip under excessive load but automatically carry the desired load after the excess has been removed
- Browning torque limiters are friction type devices that reset to any position
T35LX1

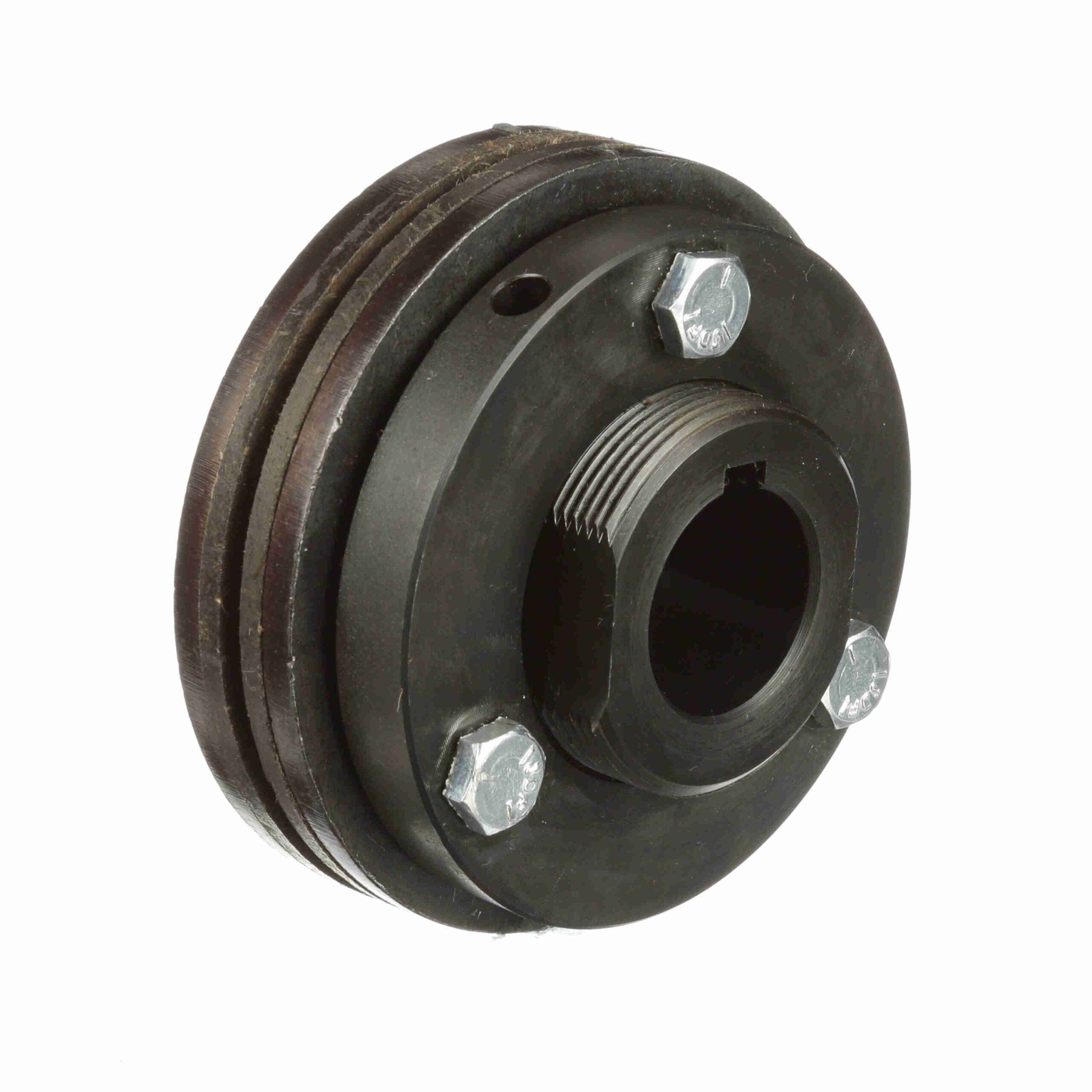

Browning Torque Limiter Model – T35L – T35LX1
$414.77
Out of stock
Out of stock
| Series / Model: | T35L | Bore Shape: | Straight Bore |
|---|---|---|---|
| Type: | Torque Overload Devices | Outside Diameter (mm): | 88.9 mm |
| Recovery Style: | Automatic | Torque [Max] (in-Ibs) (2 Spring): | 3, 000 |
| Bore Size (in): | 1 in | Total Length (mm): | 57.15 mm |
| Reset Type: | Automatic | Detection Method: | Friction Pad |
| Sprocket: | T35L | Outside Diameter (in): | 3.5 in |
| Backlash: | Zero | Total Length (in): | 2.25 in |
| Bore Size (mm): | 25.4 mm | F (1 Spring): | 0.875 |
| Unit Accuracy: | 0.25 | Torque [Max] (in-Ibs) (1 Spring): | 1, 800 |
| Sensor Plate: | No | Disconnect Method: | Friction Pad |
| F (2 Spring): | 0.9375 | Max RPM: | 1, 400 |
| Product Type: | Torque Limiter | Torque [Max] (N-m): | 203.4 |
| Torque Capacity [Min] (lb-ft): | 0 | Bore (Min) (in): | 1 in |
| Torque Capacity [Max] (in-lb): | 1, 800 | Torque Capacity [Max] (lb-ft): | 250 |
| Bore (Max) (in): | 1 in | Bore Type: | Finished w/ Keyway |
| Minimum Sprocket Teeth: | #40 (26 Teeth) | 1 | 0 |
