- Cast iron housed, extended inner ring bearing with ball riding nylon retainer
- Designed to accommodate optional closed or open end to allow users to better conform OSHA requirements for personal protection
- Skwezloc® Concentric locking for near perfect concentricity
- Single lip contact seal and flinger
- Supplied sealed for life with optional lubrication fitting in the box
STMH-23T

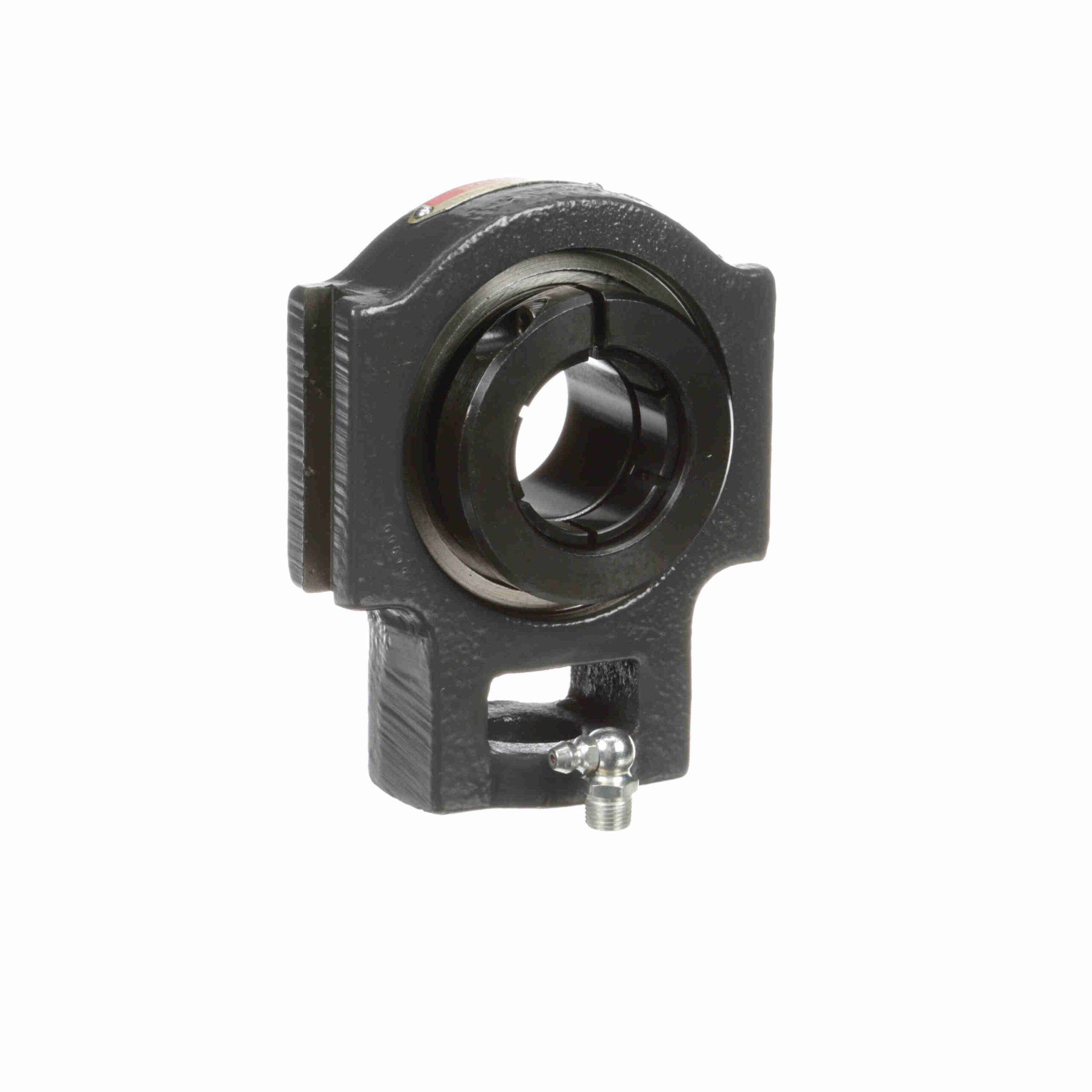

Sealmaster Mounted Cast Iron Wide Slot Take Up Housing & Frame Assembly Ball Bearing – 52100 Bearing Steel, Black Oxided – Concentric Lock – STMH-23T
$167.66
Availability: 15 in stock
Availability: 15 in stock
| Seal Type: | Single Lip Contact Seal with Flinger | Housing Material: | Cast Iron |
|---|---|---|---|
| Housing Type: | Take-Up Assembly, Wide Slot | Insert Material: | 52100 Bearing Steel, Black Oxided |
| Rolling Element: | Ball Bearing | Measure Units: | Inch |
| Speed (Max): | 4000 | Insert No.: | MH-23T |
| Expansion: | No | Duty Series: | Standard Duty |
| Maximum Operating Temperature: | 220 °F | Retainer Type: | Land Riding Retainer |
| Relubricatable: | Yes | Locking Type: | Concentric |
| Internal Clearance: | Standard | Bore Shape: | Straight |
| Lubrication: | Lithium Complex NLGI 2 Grease | Frame Type: | Center Pull Wide Slot |
| Inner-Race Heat-Treat Method: | Zone-Hardened | Housing Construction: | One Piece |
| Radial Dynamic Load Capacity (lb): | 5, 782 | Misalignment: | ±2.0° Misalignment - Static Only |
| Replaceable Insert: | Yes | Bearing Insert Coating: | Black Oxide Coated |
| Misalignment Type: | Static Only | Housing Color: | Gray |
| Outer Ring Land Profile: | Standard | End Cap: | No |
| Platform: | Gold Line Ball Bearing | Radial Static Load Capacity (lb): | 3, 493 |
| Series: | ST | Unit Type: | Side Mount |
| Component Description: | Take Up Unit with Frame | UPC: | 662461340875 |
| Weight: | 3.90 LB | Packaged Length: | 4.6 Inches |
| Packaged Width: | 7.1 Inches | Packaged Height: | 2 Inches |
| HTC: | 8483.20.4040 | Country of Origin: | Mexico |
