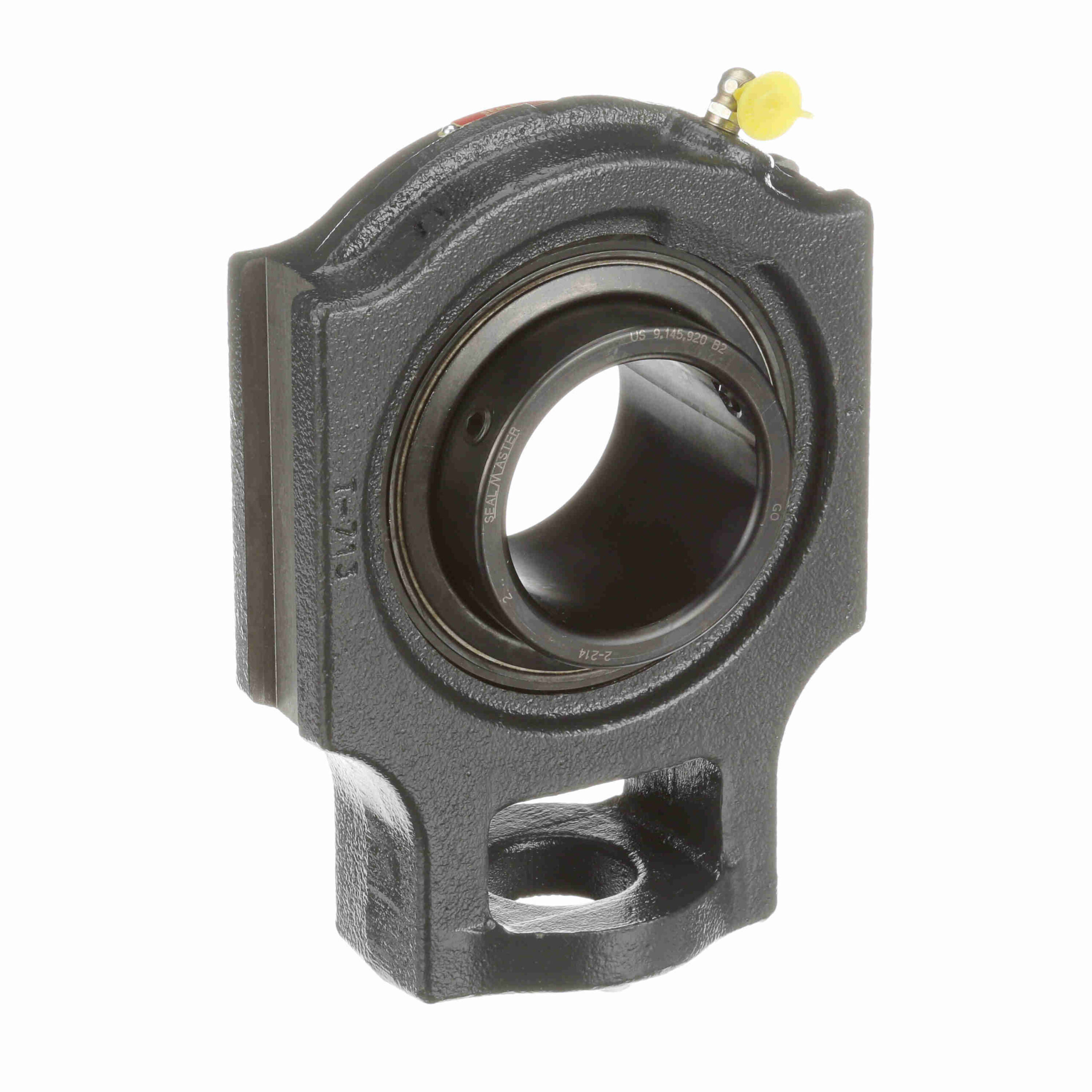

ST-46

Powder coated epoxy cast iron housing with extended inner ring bearings
Zone hardened inner ring with 120° spacing setscrew with diamond faceted setscrews
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Expansion:	No	Speed (Max):	2450
Retainer Type:	Land Riding Retainer	Duty Series:	Standard Duty
Housing Material:	Cast Iron	Insert No.:	2-214
Measure Units:	Inch	Housing Type:	Take-Up Block, Wide Slot
Insert Material:	52100 Bearing Steel, Black Oxided	Rolling Element:	Ball Bearing
Seal Type:	Felt Labyrinth Seal	Maximum Operating Temperature:	220 °F
Internal Clearance:	Standard	Locking Type:	Setscrew
Relubricatable:	Yes	Bore Shape:	Straight
Housing Construction:	One Piece	Inner-Race Heat-Treat Method:	Zone-Hardened
Radial Dynamic Load Capacity (lb):	14, 839	Lubrication:	Lithium Complex NLGI 2 Grease
Frame Type:	Center Pull Wide Slot	Misalignment:	±2.0° Misalignment - Static Only
Housing Color:	Gray	Platform:	Gold Line Ball Bearing
Outer Ring Land Profile:	Standard	Replaceable Insert:	Yes
Misalignment Type:	Static Only	End Cap:	No
Bearing Insert Coating:	Black Oxide Coated	Series:	ST
Unit Type:	Side Mount	Component Description:	Take Up Bearing Only
UPC:	662461006382	Weight:	18.27 LB
Packaged Length:	12.38 Inches	Packaged Width:	7.13 Inches
Packaged Height:	3.56 Inches	HTC:	8483.20.4040
Country of Origin:	United States of America
