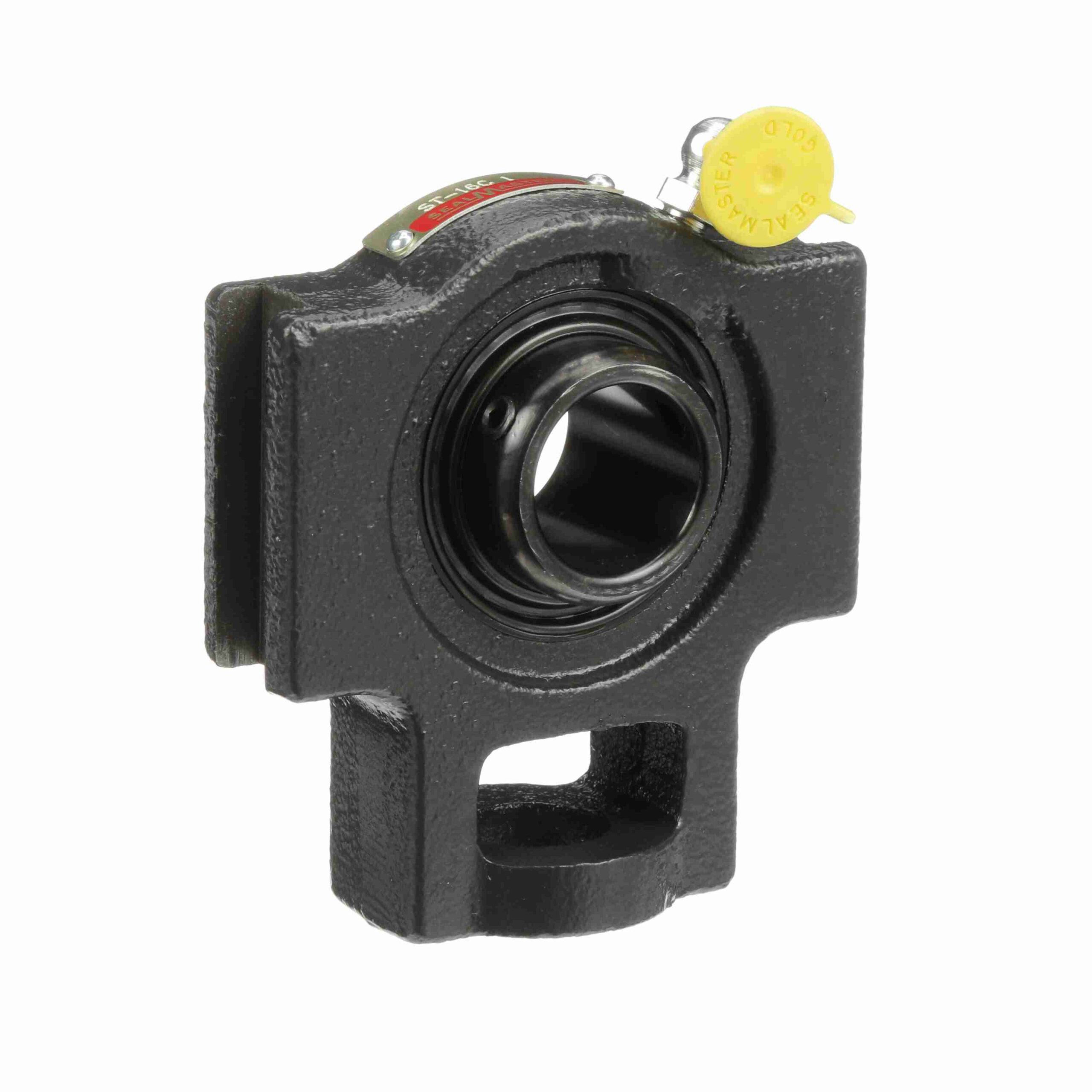

ST-205C

Powder coated epoxy cast iron housing with extended inner ring bearings
Zone hardened inner ring with 120° spacing setscrew with diamond faceted setscrews
Single lip contact seal
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Seal Type:	Single Lip Contact Seal	Insert Material:	52100 Bearing Steel, Black Oxided
Rolling Element:	Ball Bearing	Measure Units:	Metric
Bore Shape:	Straight	Internal Clearance:	Standard
Misalignment:	±2.0° Misalignment - Static Only	Housing Construction:	One Piece
Radial Dynamic Load Capacity (lb):	2, 801 lb	End Cap:	No
Replaceable Insert:	Yes	Bearing Insert Coating:	Black Oxide Coated
Outer Ring Land Profile:	Standard	Misalignment Type:	Static Only
Platform:	Gold Line Ball Bearing	Housing Color:	Gray
Series:	ST	Unit Type:	Side Mount
Component Description:	Take Up Bearing Only	Housing Style:	Take-up Blocks
Fixed vs. Expansion:	Fixed	Maximum Speed (RPM):	6350 rpm
Housing Material:	Cast Iron	Duty/Series:	Standard Duty
Locking Type:	Setscrew	Retainer Type:	Land Riding Retainer
Housing Type:	Take-Up Block, Wide Slot	Lubrication Type:	Lithium Complex NLGI 2 Grease
Maximum Operating Temperature (F):	220 °F	Inner Race Heat Treat Method:	Zone-Hardened
Ability to Relubricate:	Yes	Insert Number:	5205C
UPC:	662461000000	Weight:	2.10 LB
Packaged Length:	4.5 Inches	Packaged Width:	1.69 Inches
Packaged Height:	4.56 Inches	HTC:	8483.20.4040
Country of Origin:	United States of America
