- Cylindrical O.D. narrow inner ring bearing insert with no lubrication
- Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
- Single lip contact seal
SLS-118

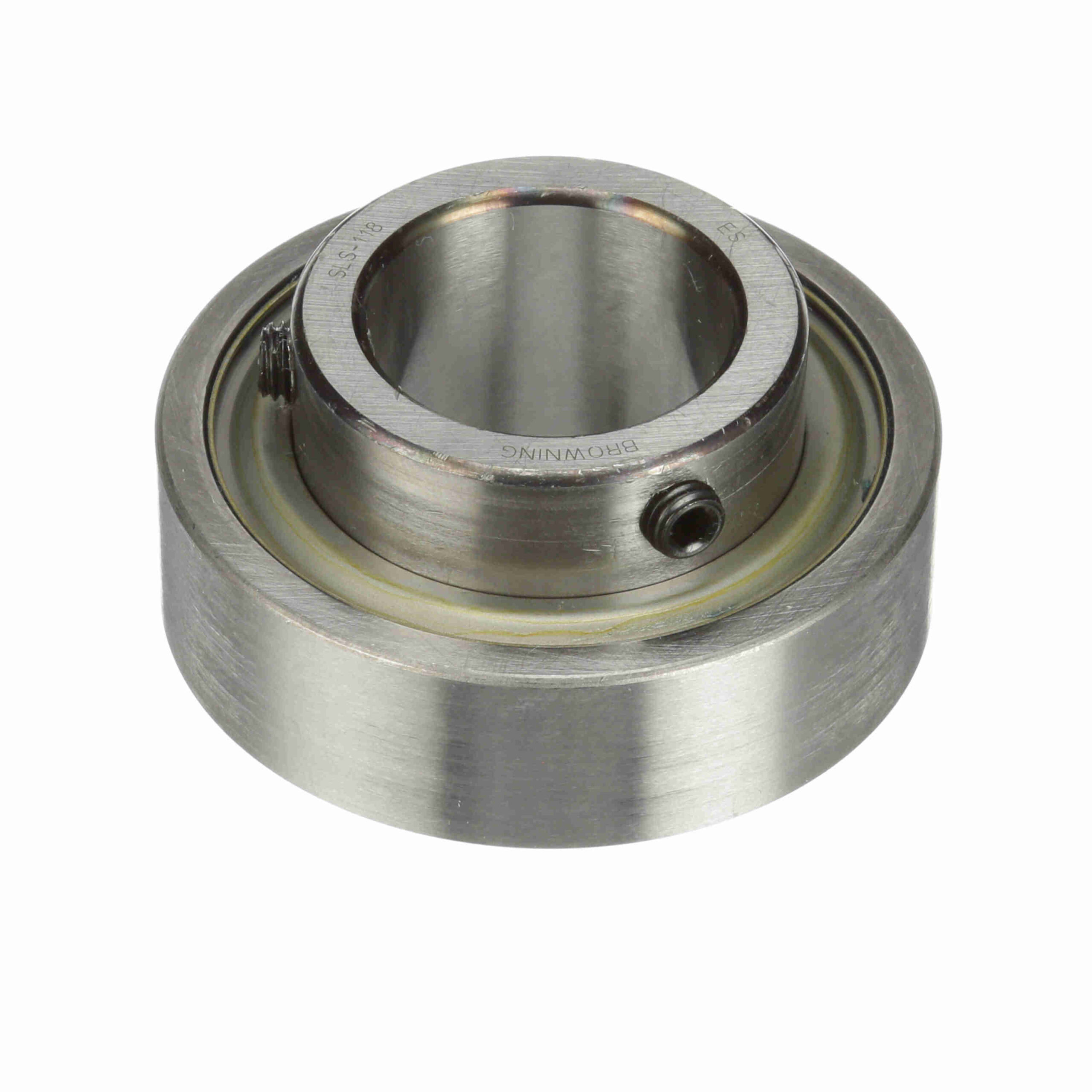

Browning Mounted Insert Only Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – SLS-118
$41.10
Out of stock
Out of stock
| Insert Material: | 52100 Bearing Steel, Black Oxided | Measure Units: | Inch |
|---|---|---|---|
| Rolling Element: | Ball Bearing | Maximum Operating Temperature: | 200 °F |
| Radius: | 0.08 | Seal Type: | Single Lip Contact Seal |
| Set Screw Thread: | 1/4-28 | Housing Type: | Insert Only |
| Bore Shape: | Straight | Inner-Race Heat-Treat Method: | Zone-Hardened |
| Duty Series: | Light | Retainer Type: | Ball Riding Retainer |
| Misalignment: | None | Internal Clearance: | Standard |
| Relubricatable: | No | Locking Type: | Setscrew |
| Lubrication: | Lithium Complex NLGI 2 Grease | Radial Dynamic Load Capacity (lb): | 4, 381 |
| Expansion: | No | Speed (Max): | 3000 |
| Outer Ring Land Profile: | Standard | End Cap: | No |
| Misalignment Type: | Static Only | Bearing Insert Coating: | Black Oxide Coated |
| Retainer Material: | Molded fiber glass reinforced nylon | Radial Static Load Capacity (lb): | 2, 567 |
| Precision Rating: | ABEC 1 | Inner Race Profile: | Narrow Inner Ring |
| Outer Race Profile: | Cylindrical | UPC: | 662460343969 |
| Weight: | 0.69 LB | Packaged Length: | 3 Inches |
| Packaged Width: | 2.7 Inches | Packaged Height: | 1.6 Inches |
| HTC: | 8482.10.5052 | Country of Origin: | Mexico |
