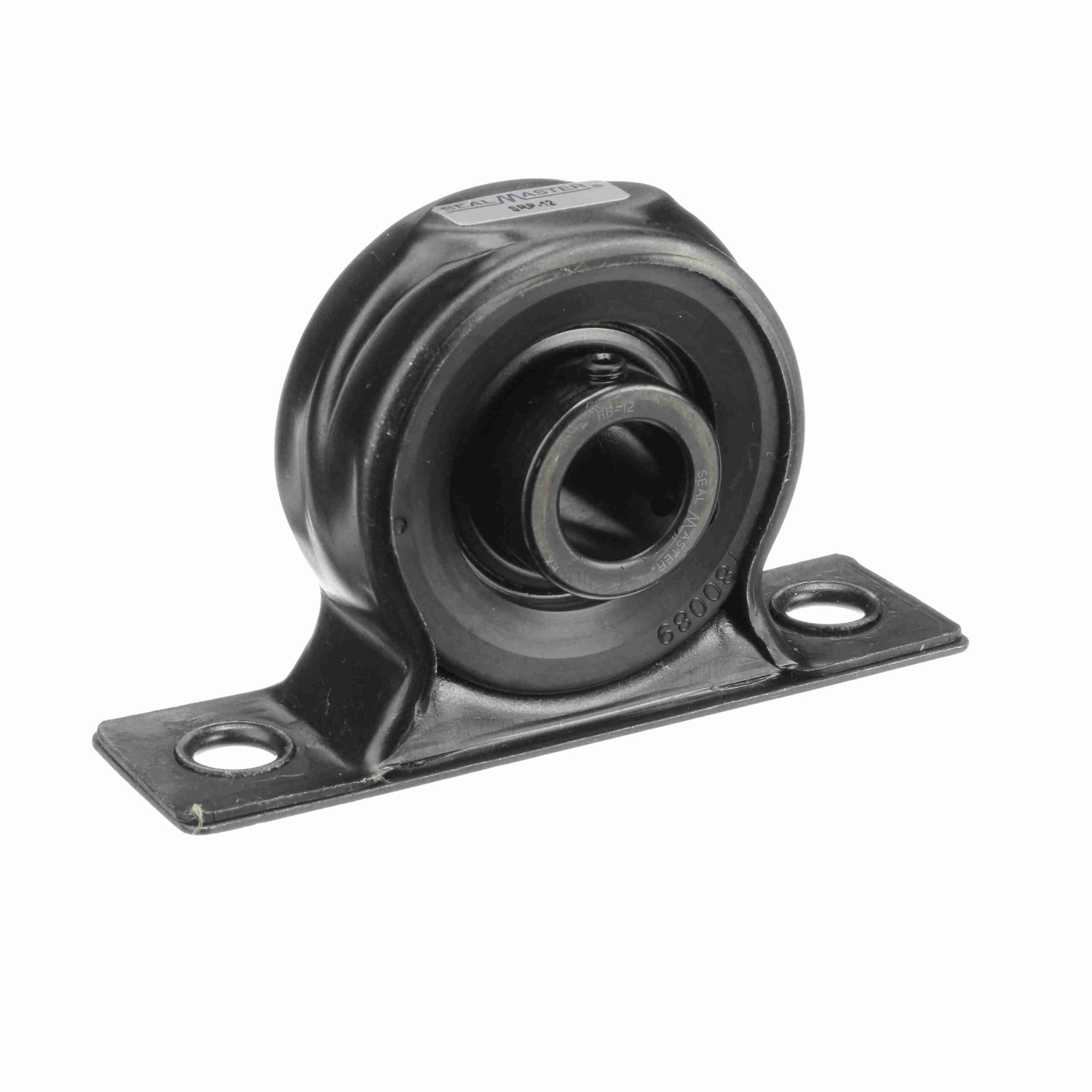

SRP-12

Powder coated epoxy cast iron housing with extended inner ring bearings
Zone hardened inner ring with 120? spacing setscrew locking with diamond faceted setscrews
Unique land riding retainer design provides superior pocket clearance that allows for 360? grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster? exclusive lock pin , dimple for direct lubrication and anti-rotation

Housing Type:	Pillow Block; Two Bolt	Measure Units:	Inch
Internal Clearance:	Standard	Duty Series:	Standard Duty
Insert Material:	52100 Bearing Steel; Black Oxided	Seal Type:	Felt Labyrinth Seal
Maximum Operating Temperature:	220 °F	Rolling Element:	Ball Bearing
Retainer Type:	Land Riding Retainer	Expansion:	No
Speed (Max):	7300	Insert No.:	SRC-12
Housing Material:	Stamped Steel	Bore Shape:	Straight
Misalignment:	Limited - Static Only	Inner-Race Heat-Treat Method:	Zone-Hardened
Housing Construction:	One Piece	Locking Type:	Setscrew
Relubricatable:	No	Lubrication:	Lithium Complex NLGI 2 Grease
End Cap:	No	Replaceable Insert:	Yes
Misalignment Type:	Static Only	Platform:	Gold Line Ball Bearing
Outer Ring Land Profile:	Standard	Bearing Insert Coating:	Black Oxide Coated
Pilot Configuration:	No Pilot	Housing Color:	Black Oxided
UPC:	662461005576	Weight:	0.89 LB
Packaged Length:	3.19 Inches	Packaged Width:	1.69 Inches
Packaged Height:	5.25 Inches	HTC:	8483.20.8040
Country of Origin:	United States of America
