- Powder coated epoxy cast iron housing with extended inner ring bearings
- Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
SP-52

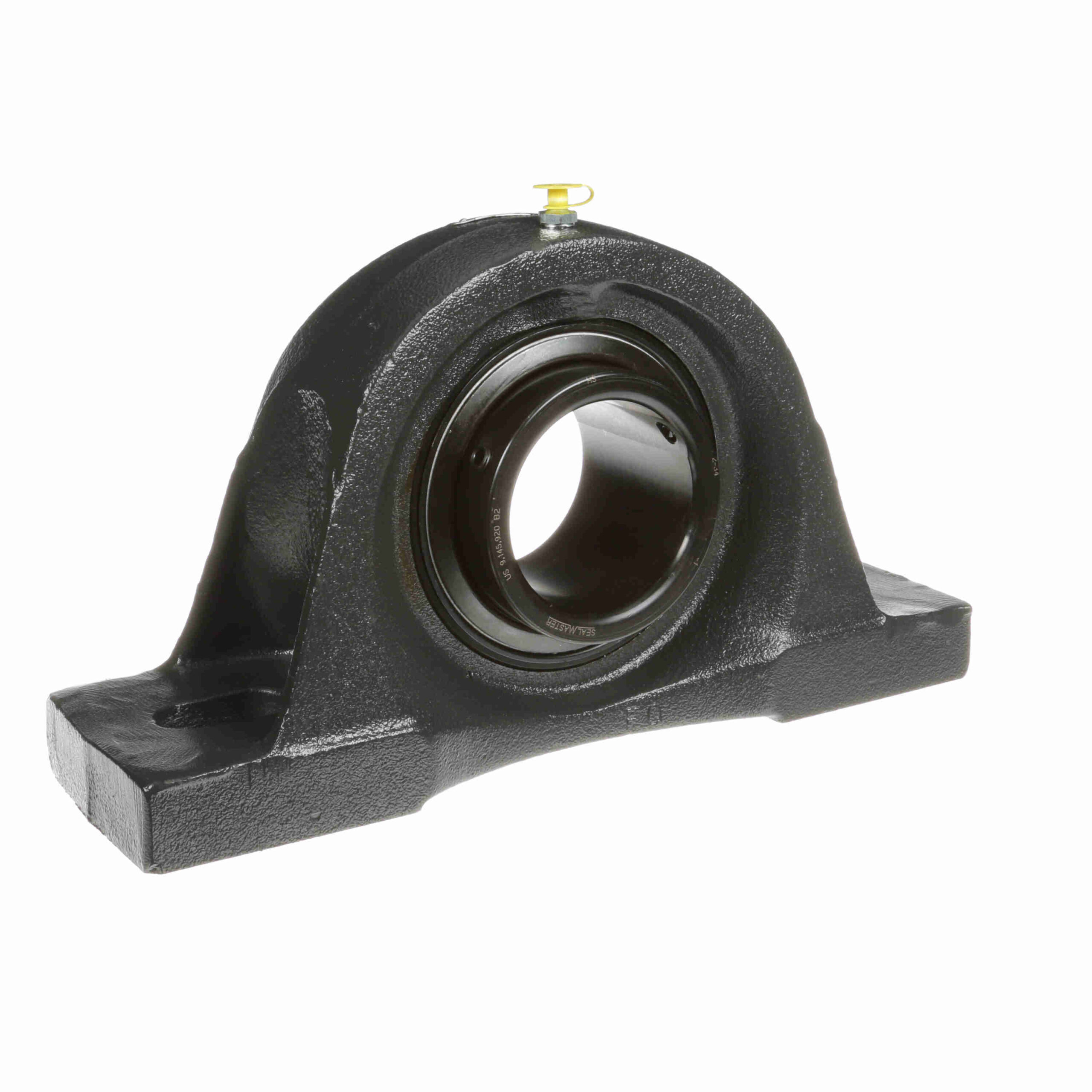

Sealmaster Mounted Cast Iron Two Bolt Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – SP-52
$1,821.88
Out of stock
Out of stock
| Measure Units: | Inch | Rolling Element: | Ball Bearing |
|---|---|---|---|
| Insert Material: | 52100 Bearing Steel, Black Oxided | Internal Clearance: | Standard |
| Housing Base: | Solid | Seal Type: | Felt Labyrinth Seal |
| Bore Shape: | Straight | Misalignment: | ±2.0° Misalignment - Static Only |
| Housing Construction: | One Piece | Outer Ring Land Profile: | Standard |
| Bearing Insert Coating: | Black Oxide Coated | Replaceable Insert: | Yes |
| End Cap: | No | Misalignment Type: | Static Only |
| Housing Color: | Gray | Platform: | Air Handling |
| Maximum Speed (RPM): | 2125 rpm | Fixed vs. Expansion: | Fixed |
| Lubrication Type: | Lithium Complex NLGI 2 Grease | Housing Style: | Pillow Block |
| Locking Type: | Setscrew | Retainer Type: | Land Riding Retainer |
| Duty/Series: | Standard Duty | Housing Material: | Cast Iron |
| Housing Type: | Pillow Block, Two Bolt | Ability to Relubricate: | Yes |
| Maximum Operating Temperature (F): | 220 °F | Inner Race Heat Treat Method: | Zone-Hardened |
| Insert Number: | 12451 | UPC: | 662461000000 |
| Weight: | 44.46 LB | Packaged Length: | 9.88 Inches |
| Packaged Width: | 17.25 Inches | Packaged Height: | 4.88 Inches |
| HTC: | 8483.20.8040 | Country of Origin: | United States of America |
