- Powder coated epoxy cast iron housing with extended inner ring bearings
- Skwezloc® concentric locking for near perfect concentricity
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

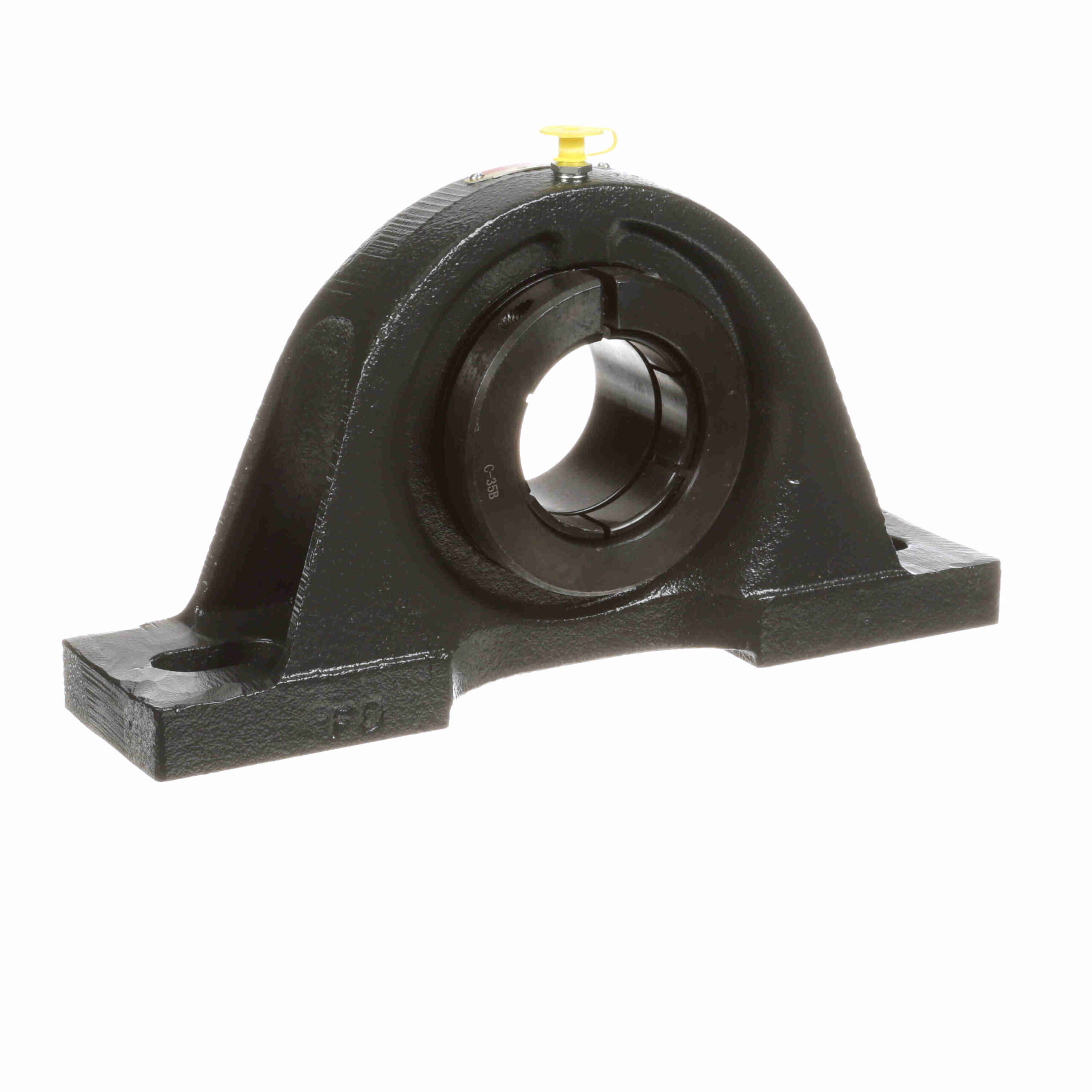

SP-35T
Sealmaster Mounted Cast Iron Two Bolt Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided – Concentric Lock – SP-35T
$569.29
Out of stock
Out of stock
| Insert Material: | 52100 Bearing Steel, Black Oxided | Housing Base: | Solid |
|---|---|---|---|
| Internal Clearance: | Standard | Seal Type: | Felt Labyrinth Seal |
| Rolling Element: | Ball Bearing | Measure Units: | Inch |
| Bore Shape: | Straight | Radial Dynamic Load Capacity (lb): | 9, 752 lb |
| Misalignment: | ±2.0° Misalignment - Static Only | Housing Construction: | One Piece |
| Misalignment Type: | Static Only | Replaceable Insert: | Yes |
| End Cap: | No | Housing Color: | Gray |
| Bearing Insert Coating: | Black Oxide Coated | Outer Ring Land Profile: | Standard |
| Platform: | Air Handling | Radial Static Load Capacity (lb): | 6, 601 lb |
| Locking Type: | Concentric | Housing Material: | Cast Iron |
| Fixed vs. Expansion: | Fixed | Retainer Type: | Land Riding Retainer |
| Maximum Speed (RPM): | 4500 rpm | Lubrication Type: | Lithium Complex NLGI 2 Grease |
| Housing Style: | Pillow Block | Duty/Series: | Standard Duty |
| Housing Type: | Pillow Block, Two Bolt | Maximum Operating Temperature (F): | 220 °F |
| Inner Race Heat Treat Method: | Zone-Hardened | Ability to Relubricate: | Yes |
| Insert Number: | 2-23T | UPC: | 662461000000 |
| Weight: | 14.70 LB | Packaged Length: | 11.44 Inches |
| Packaged Width: | 7.5 Inches | Packaged Height: | 3.25 Inches |
| HTC: | 8483.20.8040 | Country of Origin: | United States of America |
