- Powder coated epoxy cast iron housing with extended inner ring bearings
- Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
SP-206

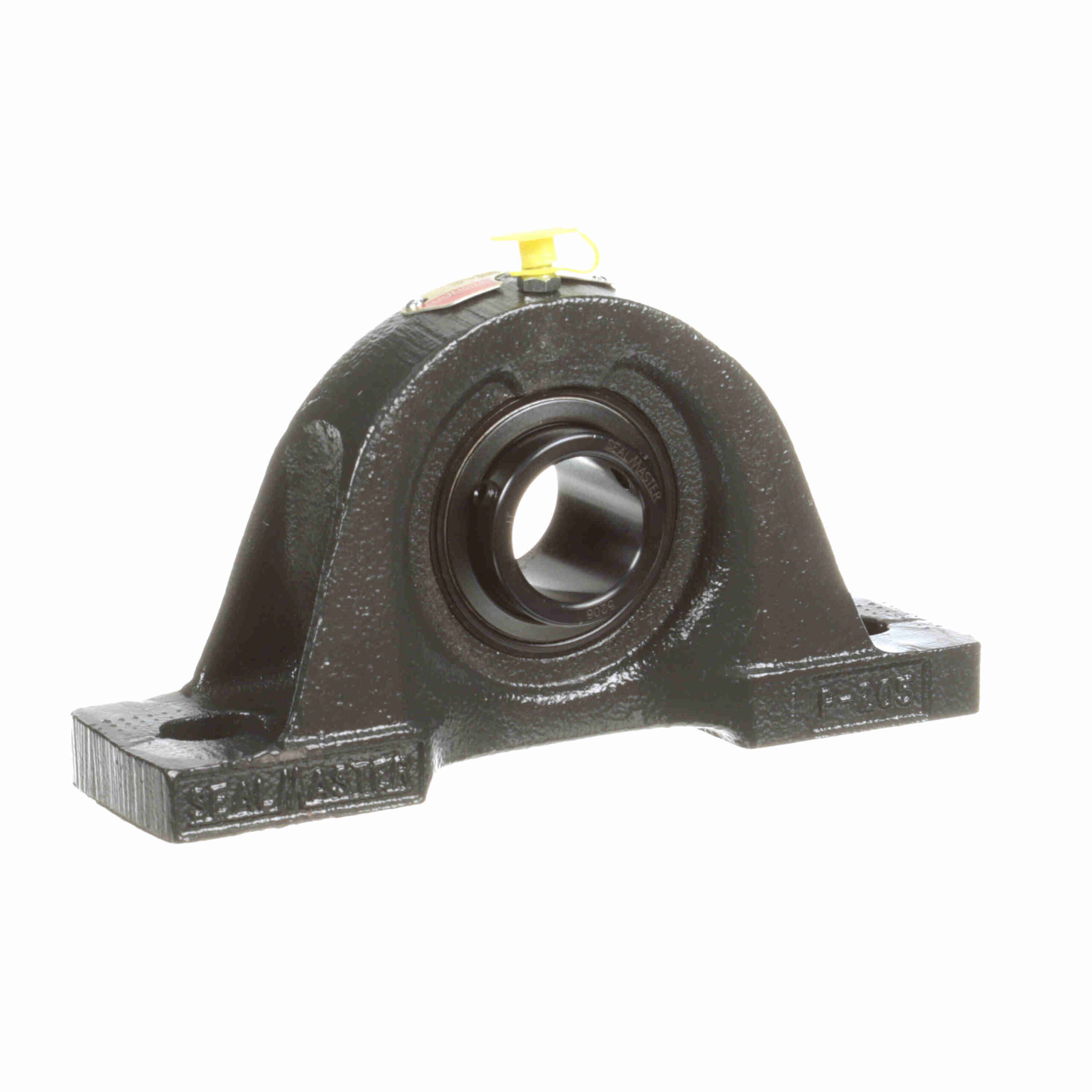

Sealmaster Mounted Cast Iron Two Bolt Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – SP-206
$288.94
Out of stock
Out of stock
| Expansion: | No | Housing Type: | Pillow Block, Two Bolt |
|---|---|---|---|
| Insert No.: | 5206 | Housing Base: | Solid |
| Housing Material: | Cast Iron | Seal Type: | Felt Labyrinth Seal |
| Retainer Type: | Land Riding Retainer | Insert Material: | 52100 Bearing Steel, Black Oxided |
| Rolling Element: | Ball Bearing | Internal Clearance: | Standard |
| Maximum Operating Temperature: | 220 °F | Duty Series: | Standard Duty |
| Measure Units: | Metric | Speed (Max): | 5450 |
| Bore Shape: | Straight | Radial Dynamic Load Capacity (lb): | 4, 381 |
| Misalignment: | ±2.0° Misalignment - Static Only | Locking Type: | Setscrew |
| Lubrication: | Lithium Complex NLGI 2 Grease | Housing Construction: | One Piece |
| Inner-Race Heat-Treat Method: | Zone-Hardened | Relubricatable: | Yes |
| Housing Color: | Gray | End Cap: | No |
| Bearing Insert Coating: | Black Oxide Coated | Replaceable Insert: | Yes |
| Outer Ring Land Profile: | Standard | Misalignment Type: | Static Only |
| Platform: | Air Handling | Radial Static Load Capacity (lb): | 2, 567 |
| UPC: | 662461052648 | Weight: | 5.00 LB |
| Packaged Length: | 2.13 Inches | Packaged Width: | 5.19 Inches |
| Packaged Height: | 7.81 Inches | HTC: | 8483.20.8040 |
| Country of Origin: | United States of America |
