- Powder coated epoxy cast iron housing with extended inner ring bearings
- Zone hardened inner ring with 120? spacing setscrew locking with diamond faceted setscrews
- Unique land riding retainer design provides superior pocket clearance that allows for 360? grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster? exclusive lock pin , dimple for direct lubrication and anti-rotation
SP-16

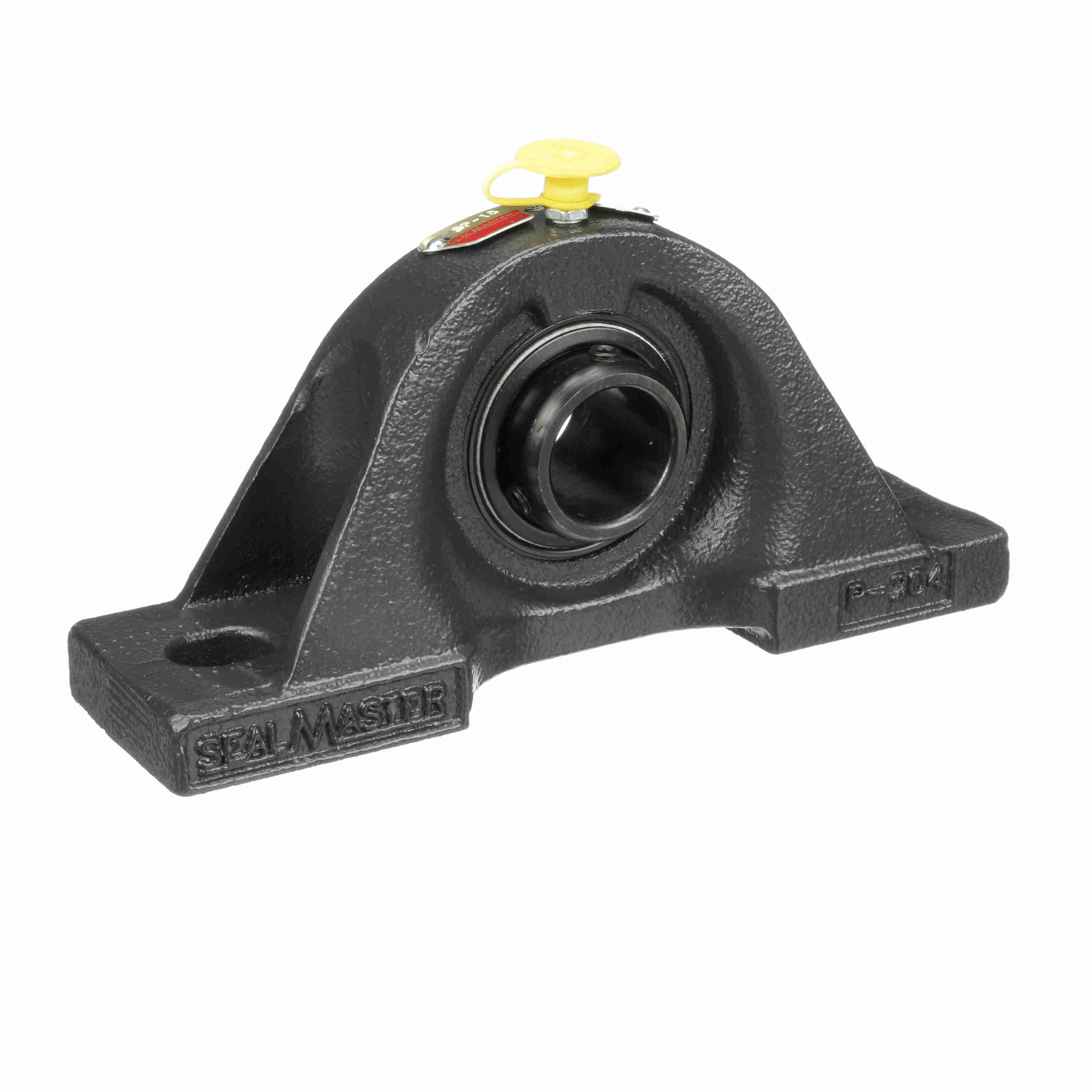

Sealmaster Mounted Cast Iron Two Bolt Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – SP-16
$193.45
Out of stock
Out of stock
| Housing Base: | Solid | Duty Series: | Standard Duty |
|---|---|---|---|
| Insert No.: | 2-1 | Housing Type: | Pillow Block; Two Bolt |
| Internal Clearance: | Standard | Retainer Type: | Land Riding Retainer |
| Insert Material: | 52100 Bearing Steel; Black Oxided | Measure Units: | Inch |
| Expansion: | No | Speed (Max): | 6350 |
| Maximum Operating Temperature: | 220 °F | Housing Material: | Cast Iron |
| Rolling Element: | Ball Bearing | Seal Type: | Felt Labyrinth Seal |
| Bore Shape: | Straight | Radial Dynamic Load Capacity (lb): | 2, 801 |
| Locking Type: | Setscrew | Housing Construction: | One Piece |
| Inner-Race Heat-Treat Method: | Zone-Hardened | Relubricatable: | Yes |
| Lubrication: | Lithium Complex NLGI 2 Grease | Misalignment: | ±2.0° Misalignment - Static Only |
| Misalignment Type: | Static Only | End Cap: | No |
| Replaceable Insert: | Yes | Outer Ring Land Profile: | Standard |
| Bearing Insert Coating: | Black Oxide Coated | Platform: | Air Handling |
| Housing Color: | Gray | Radial Static Load Capacity (lb): | 1, 651 |
| UPC: | 662461004845 | Weight: | 3.62 LB |
| Packaged Length: | 2.31 Inches | Packaged Width: | 4.63 Inches |
| Packaged Height: | 7.5 Inches | HTC: | 8483.20.8040 |
| Country of Origin: | United States of America |
