- Custom Sealmaster® mounted bearing insert with application specific features
SK-2262

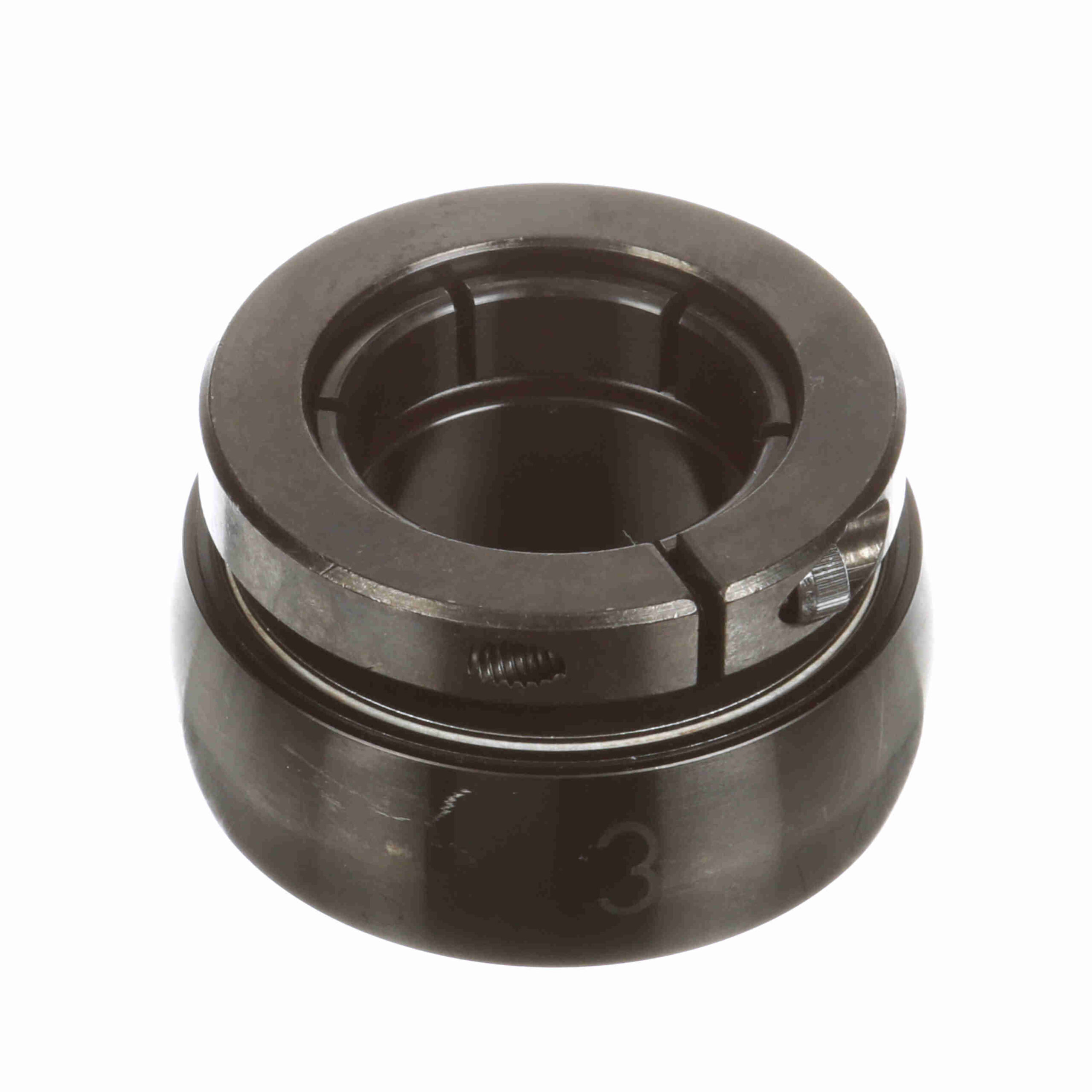

Sealmaster Mounted Insert Only Ball Bearing – 52100 Bearing Steel, Black Oxided – Concentric Lock – SK-2262
Out of stock
| Measure Units: | Inch | Torx Cap Screw: | 1/4-20 X .75 |
|---|---|---|---|
| Rolling Element: | Ball Bearing | Bore Shape: | Straight |
| Insert Material: | 52100 Bearing Steel, Black Oxided | Housing Type: | Insert Only |
| Misalignment: | ±2.0° Misalignment - Static Only | Internal Clearance: | Standard |
| Radial Dynamic Load Capacity (lb): | 7, 901 lb | Speed (Max) (RPM): | 5300 rpm |
| Misalignment Type: | Static Only | Replaceable Insert: | Yes |
| Platform: | Gold Line Ball Bearing | Outer Ring Land Profile: | Standard |
| End Cap: | No | Bearing Insert Coating: | Black Oxide Coated |
| Maximum Operating Temperature (F): | 220 °F | Lubrication Type: | Lithium Complex NLGI 2 Grease |
| Retainer Type: | Land Riding Retainer | Ability to Relubricate: | Yes |
| Fixed vs. Expansion: | No | Inner Race Heat Treat Method: | Zone-Hardened |
| Type of Seal: | Felt Labyrinth Seal | Duty/Series: | Standard |
| Locking Type: | Concentric | UPC: | 662461295229 |
| Weight: | 2.63 LB | Packaged Length: | 3.63 Inches |
| Packaged Width: | 2 Inches | Packaged Height: | 3.63 Inches |
| HTC: | 8482.10.5052 | Country of Origin: | Mexico |
