- Reverse mounting ability – This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face.
- 3/4″/ft. Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
SK 1 11/16

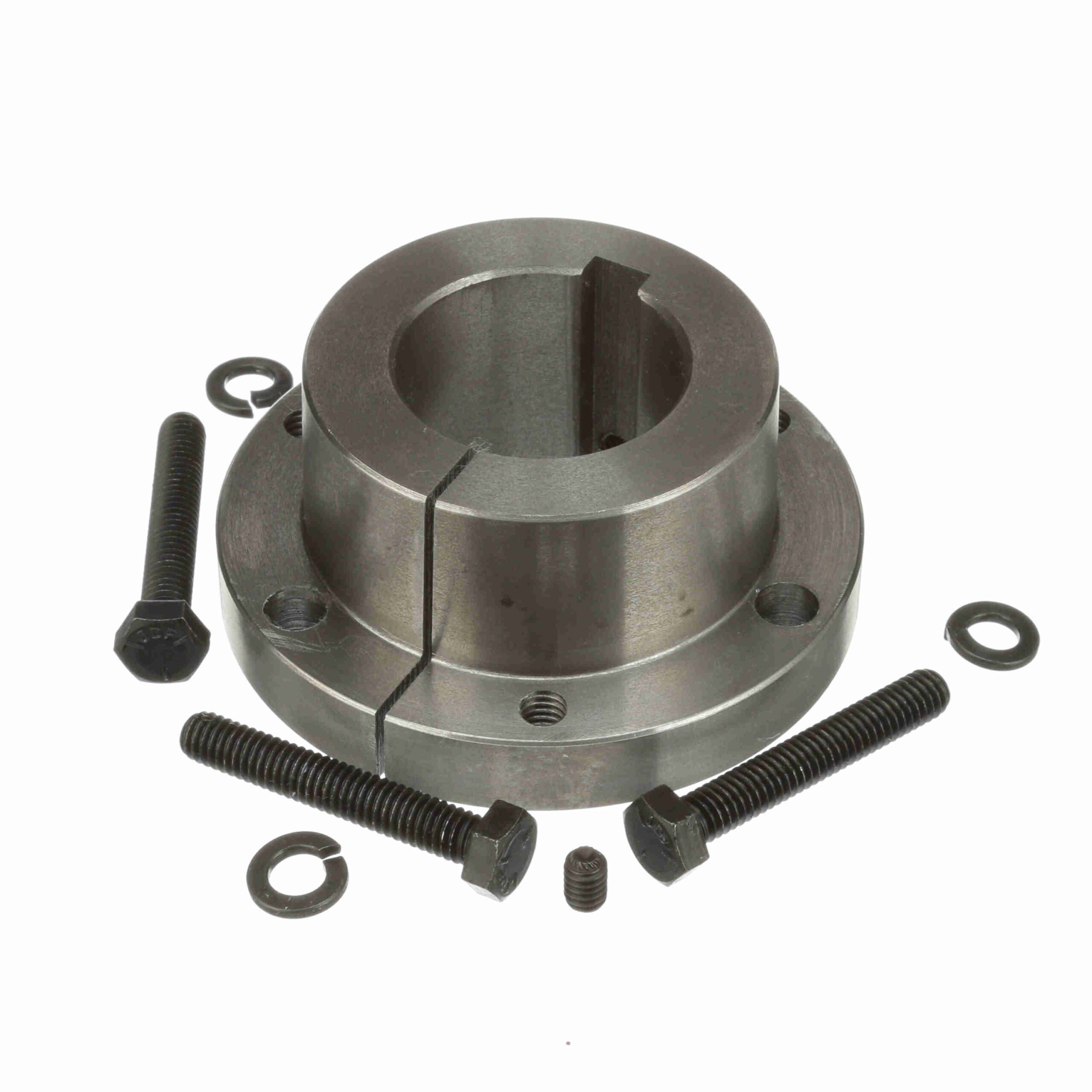

Browning Q-D Bushing – Inch Bore Type – SK 1 11/16
$86.43
Out of stock
Out of stock
| Bore Type: | Inch | Compatible Bore Size [Max] (in): | 1.6875 in |
|---|---|---|---|
| Total Length (in): | 1.75 in | Cap Screws (Size): | 5/16-18 x 2 |
| Bushing Type: | SK | Torque Capacity (in-lb): | 7, 000 |
| Mounting Type: | Conventional | Cap Screws (Bolt Circle): | 3.3125 |
| Keyway: | 3/8 x 3/16 | Product Type: | Q-D Bushing |
| Model Name: | QD-SK_Bushing_Master | Outside Diameter (in): | 3.875 in |
| Length Through Bore (in): | 1.75 in | Wrench Torque (ft.-lbs.): | 15 |
| Cap Screws (No.): | 3 | Bore Size (in): | 1.6875 in |
| Material: | Ductile Iron - 65-45-38 | Barrel Length: | 1.1875 in |
| Flange Thickness: | 0.5625 in | Barrel Diameter: | 2.8125 in |
| UPC: | 662289415793 | Weight: | 2.68 LB |
| Packaged Length: | 4.3 Inches | Packaged Width: | 4.4 Inches |
| Packaged Height: | 2.6 Inches | HTC: | 8483.90.8080 |
| Country of Origin: | Mexico |
