- Reverse mounting ability – This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face.
- 3/4″/ft. Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
SH 35 MM

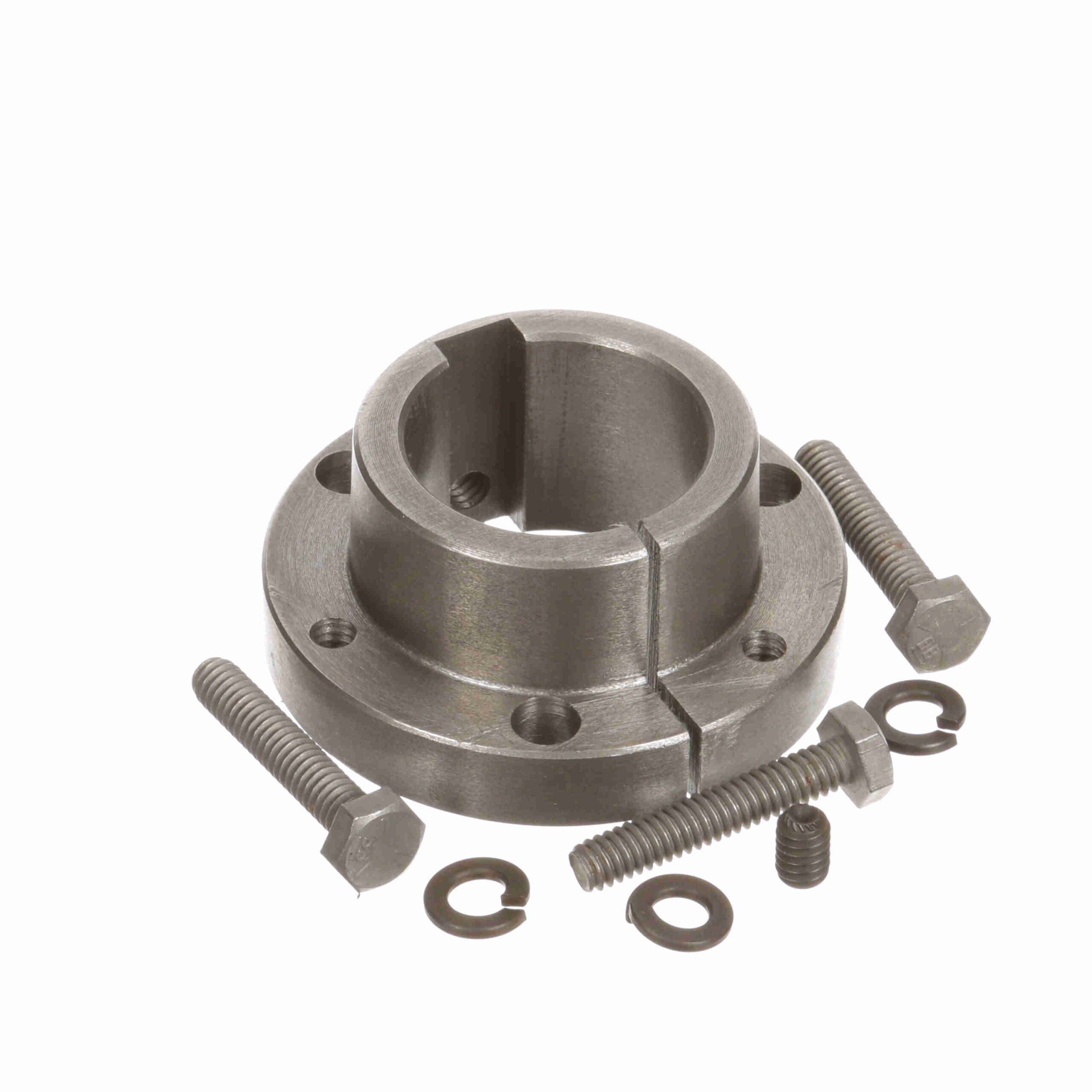

Browning Q-D Bushing – Metric Bore Type – SH 35 MM
$99.21
Out of stock
Out of stock
| Bore Type: | Metric | Bushing Type: | SH |
|---|---|---|---|
| Product Type: | Q-D Bushing | Mounting Type: | Conventional |
| Cap Screws (Bolt Circle): | 2.25 | Outside Diameter (mm): | 68.2625 mm |
| Length Through Bore (mm): | 30.48 mm | Model Name: | QD-SH_Bushing_Master |
| Compatible Bore Size [Max] (mm): | 35 mm | Total Length (in): | 1.2 in |
| Outside Diameter (in): | 2.6875 in | Cap Screws (Size): | 1/4-20 x 1 3/8 |
| Torque Capacity (in-lb): | 3, 500 | Total Length (mm): | 30.48 mm |
| Keyway: | 10mm x 4mm | Cap Screws (No.): | 3 |
| Wrench Torque (ft.-lbs.): | 9 | Bore Size (mm): | 35 mm |
| Barrel Diameter: | 1.871 in | Material: | Ductile Iron - 65-45-32 |
| Flange Thickness: | 0.45 in | Barrel Length: | 0.75 in |
| UPC: | 662289616343 | Weight: | 1.20 LB |
| Packaged Length: | 3.9 Inches | Packaged Width: | 3.7 Inches |
| Packaged Height: | 1.5 Inches | HTC: | 8483.90.8080 |
| Country of Origin: | Mexico |
