- Reverse mounting ability – This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face.
- 3/4″/ft. Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
SH 1 1/2

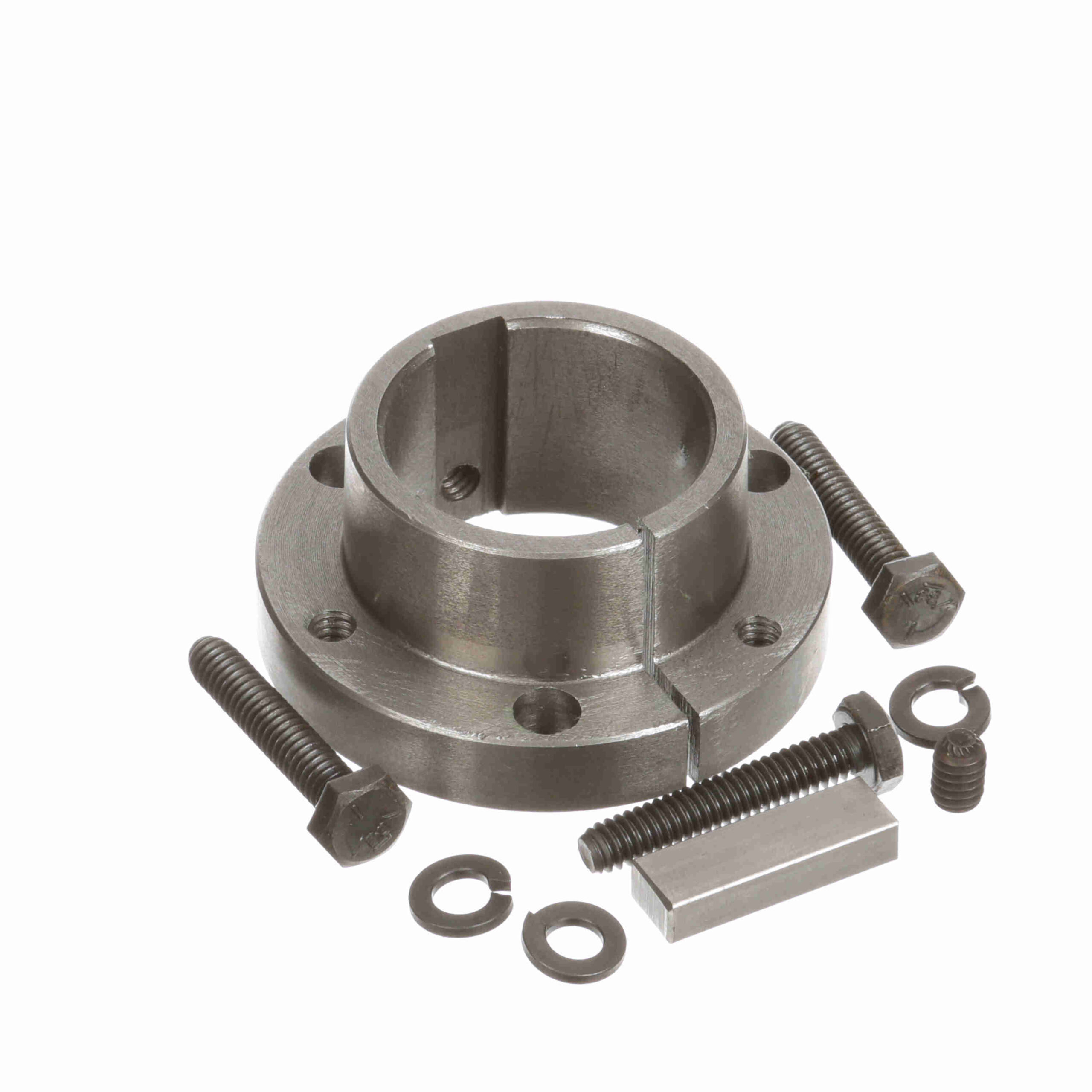

Browning Q-D Bushing – Inch Bore Type – SH 1 1/2
$70.46
Out of stock
Out of stock
| Model Name: | QD-SH_Bushing_Master | Cap Screws (Size): | 1/4-20 x 1 3/8 |
|---|---|---|---|
| Product Type: | Q-D Bushing | Total Length (in): | 1.2 in |
| Bushing Type: | SH | Compatible Bore Size [Max] (in): | 1.5 in |
| Wrench Torque (ft.-lbs.): | 9 | Outside Diameter (in): | 2.6875 in |
| Length Through Bore (in): | 1.2 in | Torque Capacity (in-lb): | 3, 500 |
| Bore Type: | Inch | Keyway: | 3/8 x 3/16 |
| Cap Screws (Bolt Circle): | 2.25 | Mounting Type: | Conventional |
| Cap Screws (No.): | 3 | Bore Size (in): | 1.5 in |
| Barrel Length: | 0.75 in | Flange Thickness: | 0.45 in |
| Material: | Ductile Iron - 65-45-13 | Barrel Diameter: | 1.871 in |
| UPC: | 662289385539 | Weight: | 0.74 LB |
| Packaged Length: | 3.7 Inches | Packaged Width: | 3.8 Inches |
| Packaged Height: | 1.5 Inches | HTC: | 8483.90.8080 |
| Country of Origin: | Mexico |
