- Cast iron housed, extended inner ring bearing with ball riding nylon retainer
- Designed to accommodate optional closed or open end to allow users to better conform OSHA requirements for personal protection
- Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
- Single lip contact seal and flinger
- Supplied sealed for life with optional lubrication fitting in the box
SFTMH-16

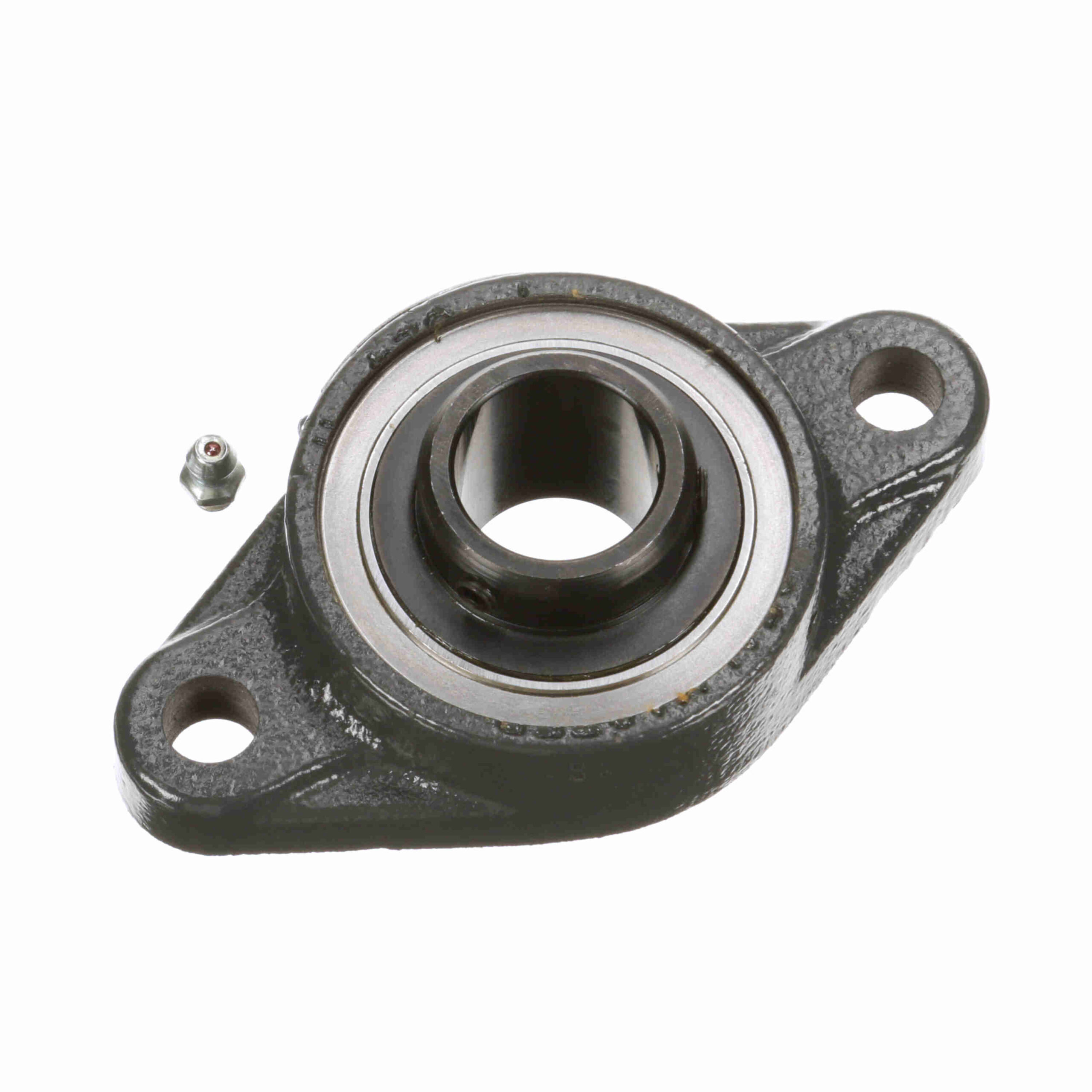

Sealmaster Mounted Cast Iron Two Bolt Flange Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – SFTMH-16
$99.23
Availability: 93 in stock
Availability: 93 in stock
| Seal Type: | Single Lip Contact Seal | Rolling Element: | Ball Bearing |
|---|---|---|---|
| Measure Units: | Inch | Insert Material: | 52100 Bearing Steel, Black Oxided |
| Housing Base: | Solid | Pilot Configuration: | No Pilot |
| Internal Clearance: | Standard | Housing Construction: | One Piece |
| Misalignment: | ±1.5° Misalignment - Static Only | Radial Dynamic Load Capacity (lb): | 2, 801 lb |
| Bore Shape: | Straight | Bearing Insert Coating: | Black Oxide Coated |
| Outer Ring Land Profile: | Standard | Housing Color: | Gray |
| Platform: | Gold Line Ball Bearing | Misalignment Type: | Static Only |
| End Cap: | No | Replaceable Insert: | Yes |
| Radial Static Load Capacity (lb): | 1, 651 lb | Locking Type: | Setscrew |
| Housing Type: | Flange, Two Bolt | Fixed vs. Expansion: | Fixed |
| Duty/Series: | Standard Duty | Retainer Type: | Land Riding Retainer |
| Maximum Speed (RPM): | 5500 rpm | Housing Material: | Cast Iron |
| Lubrication Type: | Lithium Complex NLGI 2 Grease | Housing Style: | Flange Block |
| Inner Race Heat Treat Method: | Zone-Hardened | Insert Number: | MH-16 |
| Maximum Operating Temperature (F): | 220 °F | Ability to Relubricate: | Yes |
| UPC: | 662461342756 | Weight: | 1.35 LB |
| Packaged Length: | 4 Inches | Packaged Width: | 1.5 Inches |
| Packaged Height: | 3.94 Inches | HTC: | 8483.20.4040 |
| Country of Origin: | Mexico |
