- Powder coated epoxy cast iron housing with extended inner ring bearings
- Skwezloc® concentric locking for near perfect concentricity
- Air Handling noise check for quiet operation
- Looser than standard housing fit for ease of alignment on lightweight frames
- Felt labyrinth seal and flinger for dusty and dirty environment
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
SFT-23T CXU

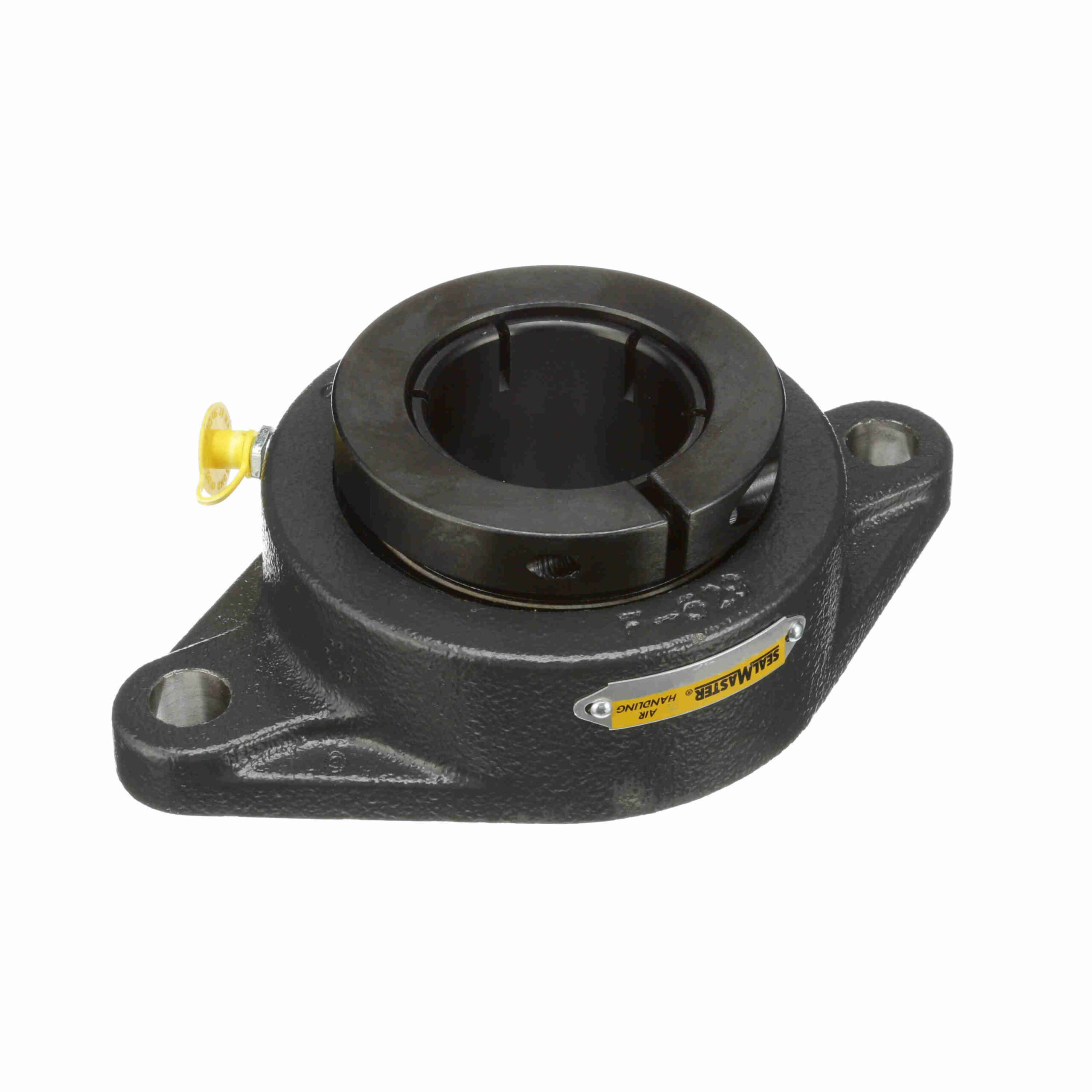

Sealmaster Mounted Cast Iron Two Bolt Flange Ball Bearing – 52100 Bearing Steel, Black Oxided – Concentric Lock – Air Handling Housing Fit, Noise Tested – SFT-23T CXU
$214.91
Out of stock
Out of stock
| Seal Type: | Felt Labyrinth Seal | Duty Series: | Standard Duty |
|---|---|---|---|
| Rolling Element: | Ball Bearing | Insert Material: | 52100 Bearing Steel, Black Oxided |
| Expansion: | No | Inner-Race Heat-Treat Method: | Zone-Hardened |
| Measure Units: | Inch | Maximum Operating Temperature: | 220 °F |
| Insert No.: | 2-17T CXU | Retainer Type: | Land Riding Retainer |
| Housing Base: | Solid | Housing Material: | Cast Iron |
| Relubricatable: | Yes | Pilot Configuration: | No Pilot |
| Misalignment: | ±2.0° Misalignment - Static Only | Speed (Max): | 6500 |
| Radial Dynamic Load Capacity (lb): | 5, 782 | Housing Construction: | One Piece |
| Lubrication: | Lithium Complex NLGI 2 Grease | Bore Shape: | Straight |
| Locking Type: | Concentric | Housing Type: | Flange, Two Bolt |
| Internal Clearance: | Standard | End Cap: | No |
| Misalignment Type: | Static Only | Replaceable Insert: | Yes |
| Outer Ring Land Profile: | Standard | Platform: | Air Handling |
| Bearing Insert Coating: | Black Oxide Coated | Housing Color: | Gray |
| Options: | Air Handling Housing Fit, Noise Tested | Radial Static Load Capacity (lb): | 3, 493 |
| UPC: | 662461235959 | Weight: | 3.50 LB |
| Packaged Length: | 5 Inches | Packaged Width: | 2 Inches |
| Packaged Height: | 5 Inches | HTC: | 8483.20.4040 |
| Country of Origin: | United States of America |
