- Powder coated epoxy cast iron housing with extended inner ring bearings
- Skwezloc® concentric locking for near perfect concentricity
- Single lip contact seal with black oxide bearing races
- Metric fitting and mounting bolts
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

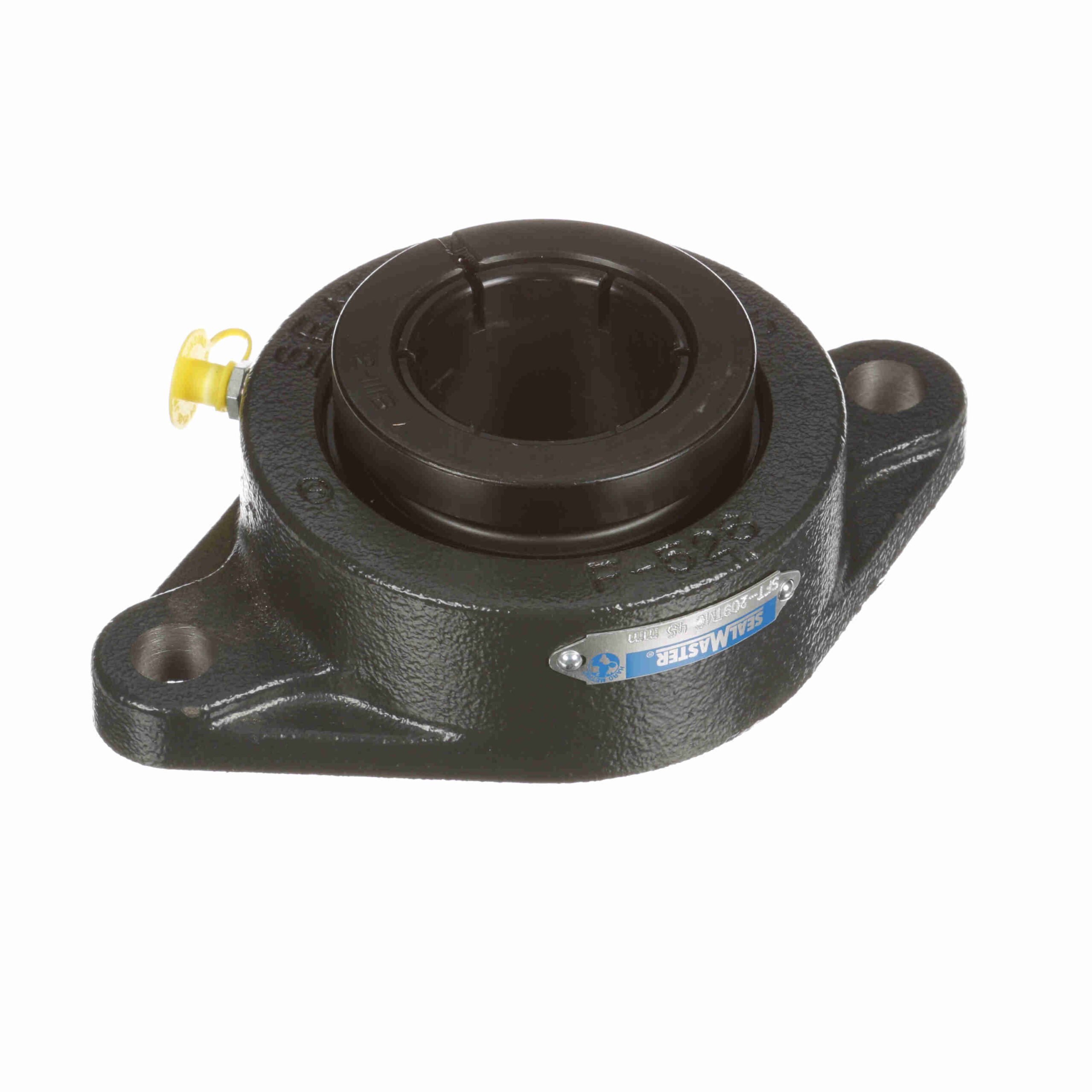

SFT-207TMC
Sealmaster Mounted Cast Iron Two Bolt Flange Ball Bearing – 52100 Bearing Steel, Black Oxided – Concentric Lock – SFT-207TMC
$238.74
Out of stock
Out of stock
| Inner-Race Heat-Treat Method: | Zone-Hardened | Insert No.: | 5207TMC |
|---|---|---|---|
| Measure Units: | Metric | Maximum Operating Temperature: | 220 °F |
| Insert Material: | 52100 Bearing Steel, Black Oxided | Expansion: | No |
| Retainer Type: | Land Riding Retainer | Housing Material: | Cast Iron |
| Rolling Element: | Ball Bearing | Duty Series: | Standard Duty |
| Seal Type: | Single Lip Contact Seal | Housing Base: | Solid |
| Relubricatable: | Yes | Pilot Configuration: | No Pilot |
| Housing Construction: | One Piece | Misalignment: | ±2.0° Misalignment - Static Only |
| Internal Clearance: | Standard | Lubrication: | Lithium Complex NLGI 2 Grease |
| Bore Shape: | Straight | Speed (Max): | 6500 |
| Housing Type: | Flange, Two Bolt | Locking Type: | Concentric |
| End Cap: | No | Outer Ring Land Profile: | Standard |
| Bearing Insert Coating: | Black Oxide Coated | Housing Color: | Gray |
| Replaceable Insert: | Yes | Platform: | Gold Line Ball Bearing |
| Misalignment Type: | Static Only | UPC: | 662461253939 |
| Weight: | 3.20 LB | Packaged Length: | 5 Inches |
| Packaged Width: | 2 Inches | Packaged Height: | 5 Inches |
| HTC: | 8483.20.4040 | Country of Origin: | United States of America |
