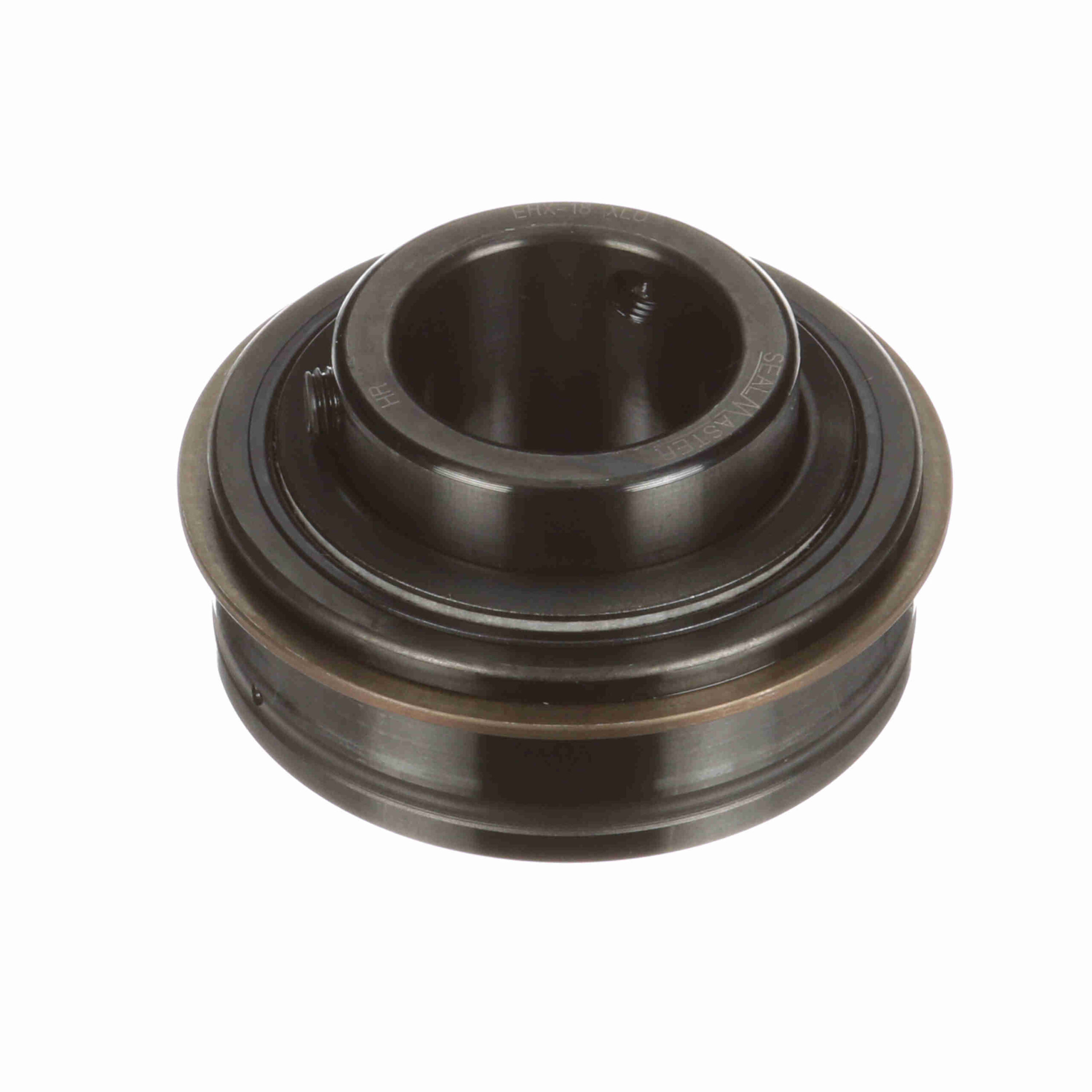

ERX-18 XLO

ER style cylindrical OD bearing with snap and with black oxided bearing rings
Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
Extra low drag seal cut down felt labyrinth seal and flinger
Oil lubricated for reduced internal friction
Nylon retainer to reduce overall drag

Seal Type:	Cut Down Felt Labyrinth	Insert Material:	52100 Bearing Steel, Black Oxided
Housing Type:	Insert (ER Style)	Bore Shape:	Straight
Radius:	0.04	Rolling Element:	Ball Bearing
Measure Units:	Inch	Radial Dynamic Load Capacity (lb):	4, 381 lb
Misalignment:	None	Speed (Max) (rpm):	2150 rpm
Expansion:	No	Internal Clearance:	Standard
Bearing Insert Coating:	Black Oxide Coated	Platform:	Gold Line Ball Bearing
Options:	Extra Low Drag	Misalignment Type:	Static Only
Outer Ring Land Profile:	Tapered Lands	End Cap:	No
Radial Static Load Capacity (lb):	2, 567 lb	Cage Material:	Molded Nylon
Precision Rating:	ABEC 1	Outer Race Profile:	Cylindrical
Inner Race Profile:	Wide Inner Ring	Retainer Type:	Land Riding Retainer
Duty/Status:	Standard	Lubrication Type:	Oil Coated Only - No Factory Grease Fill
Maximum Operating Temperature (F):	220 °F	Locking Type:	Setscrew
Ability to Relubricate:	Yes	Inner Race Heat Treat Method:	Zone-Hardened
UPC:	662461259115	Weight:	0.93 LB
Packaged Length:	2.75 Inches	Packaged Width:	1.56 Inches
Packaged Height:	2.75 Inches	HTC:	8482.10.5052
Country of Origin:	Mexico
