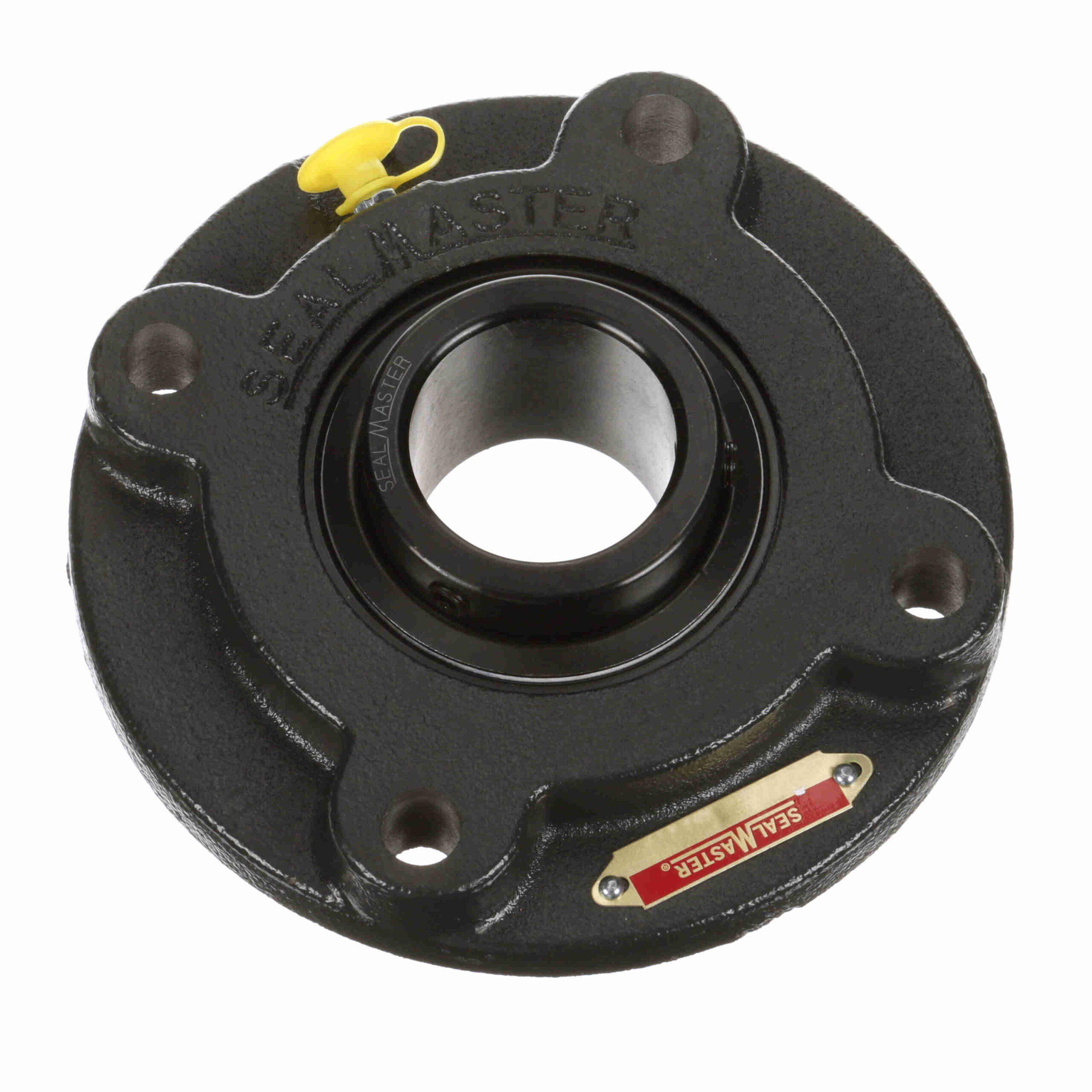

SFC-25

Powder coated epoxy cast iron housing with extended inner ring bearings
Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
Felt labyrinth seal and flinger for dry and dusty environment
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Bore Shape:	Straight	Housing Type:	Flange, Piloted
Retainer Type:	Land Riding Retainer	Maximum Operating Temperature:	220 °F
Rolling Element:	Ball Bearing	Duty Series:	Standard Duty
Insert No.:	2-19 SFB ATO	Housing Material:	Cast Iron
Seal Type:	Felt Labyrinth Seal	Measure Units:	Inch
Insert Material:	52100 Bearing Steel, Black Oxided	Housing Base:	Solid
Expansion:	No	Relubricatable:	Yes
Pilot Configuration:	No Pilot	Internal Clearance:	Standard
Misalignment:	±2.0° Misalignment - Static Only	Lubrication:	Lithium Complex NLGI 2 Grease
Speed (Max):	4150	Locking Type:	Setscrew
Housing Construction:	One Piece	Inner-Race Heat-Treat Method:	Zone-Hardened
End Cap:	No	Misalignment Type:	Static Only
Replaceable Insert:	Yes	Housing Color:	Gray
Bearing Insert Coating:	Black Oxide Coated	Outer Ring Land Profile:	Standard
Platform:	Gold Line Ball Bearing	UPC:	662461003992
Weight:	4.70 LB	Packaged Length:	5.5 Inches
Packaged Width:	2.13 Inches	Packaged Height:	5.5 Inches
HTC:	8483.20.4040	Country of Origin:	United States of America
