- Powder coated epoxy cast iron housing with extended inner ring bearings
- Skwezloc? concentric locking for near perfect concentricity
- Felt labyrinth seal and flinger for dry , dusty environment
- Unique land riding retainer design provides superior pocket clearance that allows for 360? grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster? exclusive lock pin , dimple for direct lubrication and anti-rotation
SFC-24T

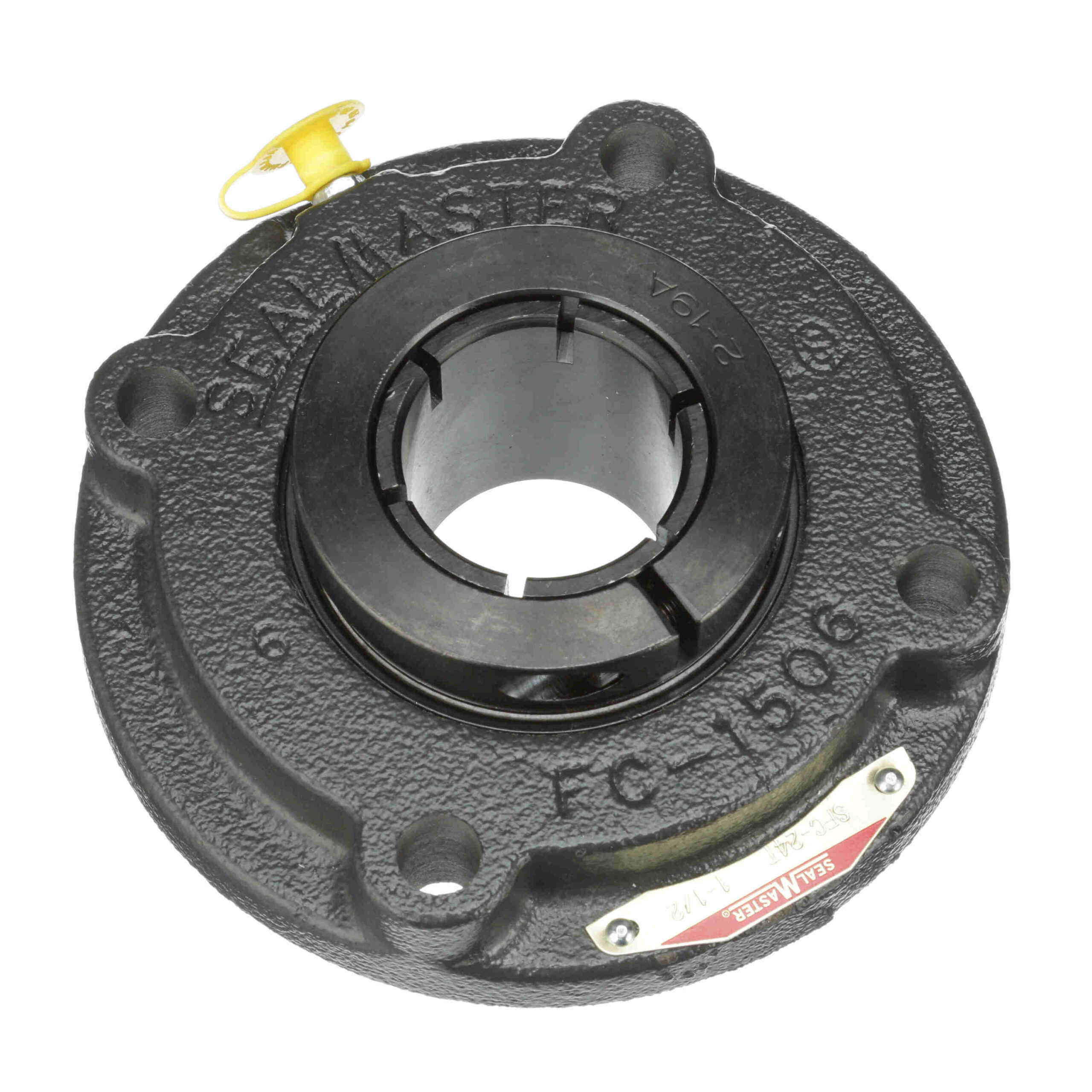

Sealmaster Mounted Cast Iron Flange Cartridge Ball Bearing – 52100 Bearing Steel, Black Oxided – Concentric Lock – SFC-24T
$218.85
Availability: 17 in stock
Availability: 17 in stock
| Retainer Type: | Land Riding Retainer | Expansion: | No |
|---|---|---|---|
| Rolling Element: | Ball Bearing | Maximum Operating Temperature: | 400 °F |
| Insert No.: | 2-18T SFB | Housing Base: | Solid |
| Housing Type: | Flange; Piloted | Bore Shape: | Straight |
| Insert Material: | 52100 Bearing Steel; Black Oxided | Seal Type: | Felt Labyrinth Seal |
| Measure Units: | Inch | Duty Series: | Standard Duty |
| Housing Material: | Cast Iron | Pilot Configuration: | No Pilot |
| Relubricatable: | Yes | Radial Dynamic Load Capacity (lb): | 7, 340 |
| Inner-Race Heat-Treat Method: | Zone-Hardened | Speed (Max): | 1800 |
| Misalignment: | ±2.0° Misalignment - Static Only | Internal Clearance: | Standard |
| Housing Construction: | One Piece | Lubrication: | Lithium Complex NLGI 2 Grease |
| Locking Type: | Concentric | Outer Ring Land Profile: | Standard |
| Housing Color: | Gray | Bearing Insert Coating: | Black Oxide Coated |
| Platform: | Gold Line Ball Bearing | Misalignment Type: | Static Only |
| End Cap: | No | Replaceable Insert: | Yes |
| Radial Static Load Capacity (lb): | 4, 467 | UPC: | 662461030219 |
| Weight: | 4.91 LB | Packaged Length: | 5.5 Inches |
| Packaged Width: | 2.13 Inches | Packaged Height: | 5.5 Inches |
| HTC: | 8483.20.4040 | Country of Origin: | United States of America |
