- Powder coated epoxy cast iron housing with extended inner ring bearings
- Skwezloc® concentric locking for near perfect concentricity
- Single lip contact seal
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
SF-32TC

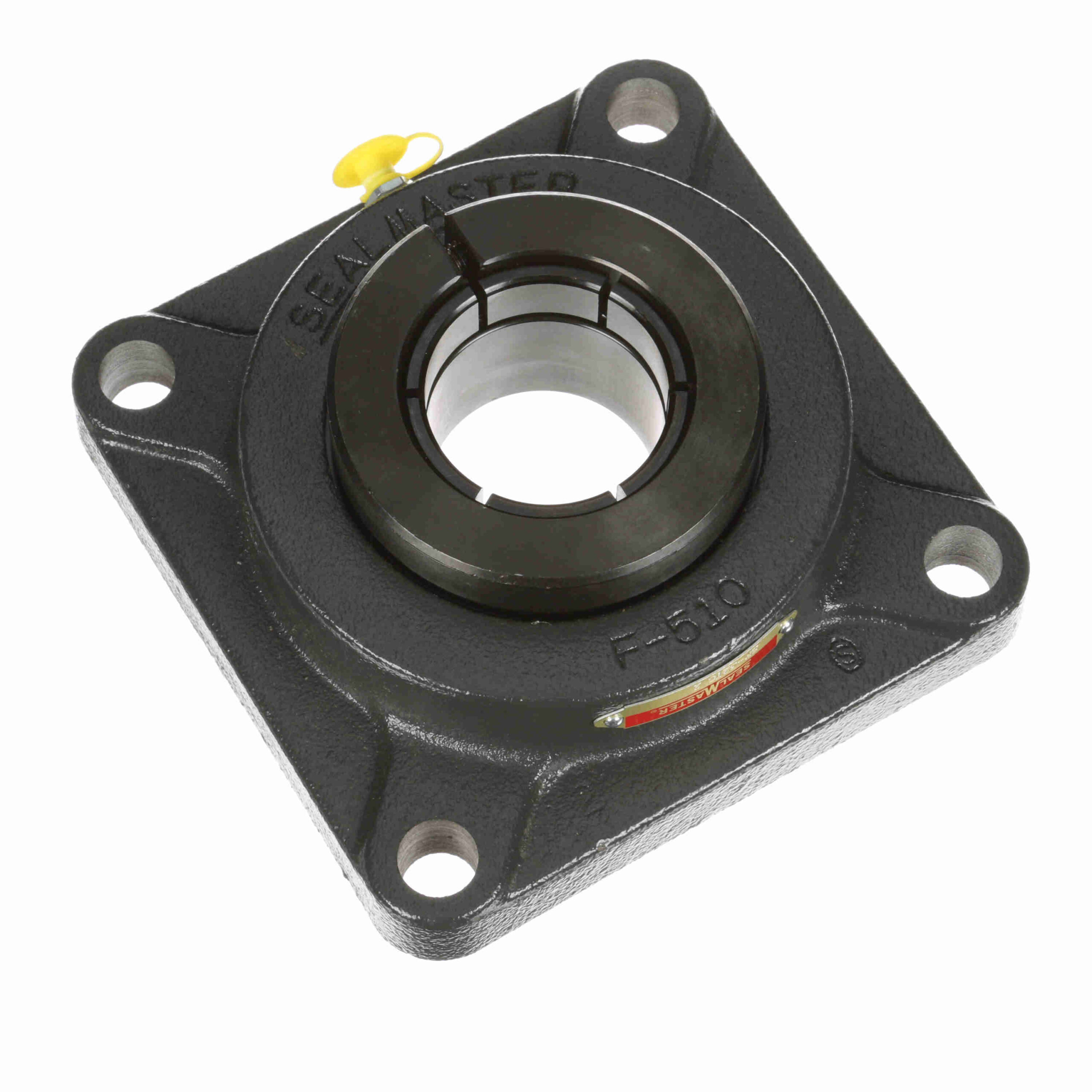

Sealmaster Mounted Cast Iron Four Bolt Flange Ball Bearing – 52100 Bearing Steel, Black Oxided – Concentric Lock – SF-32TC
$344.47
Out of stock
Out of stock
| Insert No.: | 2-2TC | Maximum Operating Temperature: | 220 °F |
|---|---|---|---|
| Inner-Race Heat-Treat Method: | Zone-Hardened | Measure Units: | Inch |
| Insert Material: | 52100 Bearing Steel, Black Oxided | Seal Type: | Single Lip Contact Seal |
| Retainer Type: | Land Riding Retainer | Bore Shape: | Straight |
| Rolling Element: | Ball Bearing | Duty Series: | Standard Duty |
| Housing Base: | Solid | Expansion: | No |
| Housing Type: | Flange, Four Bolt | Housing Material: | Cast Iron |
| Relubricatable: | Yes | Pilot Configuration: | No Pilot |
| Speed (Max): | 3250 | Lubrication: | Lithium Complex NLGI 2 Grease |
| Misalignment: | ±2.0° Misalignment - Static Only | Housing Construction: | One Piece |
| Internal Clearance: | Standard | Locking Type: | Concentric |
| Replaceable Insert: | Yes | Platform: | Gold Line Ball Bearing |
| Housing Color: | Gray | Misalignment Type: | Static Only |
| Outer Ring Land Profile: | Standard | Bearing Insert Coating: | Black Oxide Coated |
| End Cap: | No | T Core: | 4.25 |
| UPC: | 662461033142 | Weight: | 11.00 LB |
| Packaged Length: | 6.75 Inches | Packaged Width: | 6.5 Inches |
| Packaged Height: | 2.44 Inches | HTC: | 8483.20.4040 |
| Country of Origin: | United States of America |
