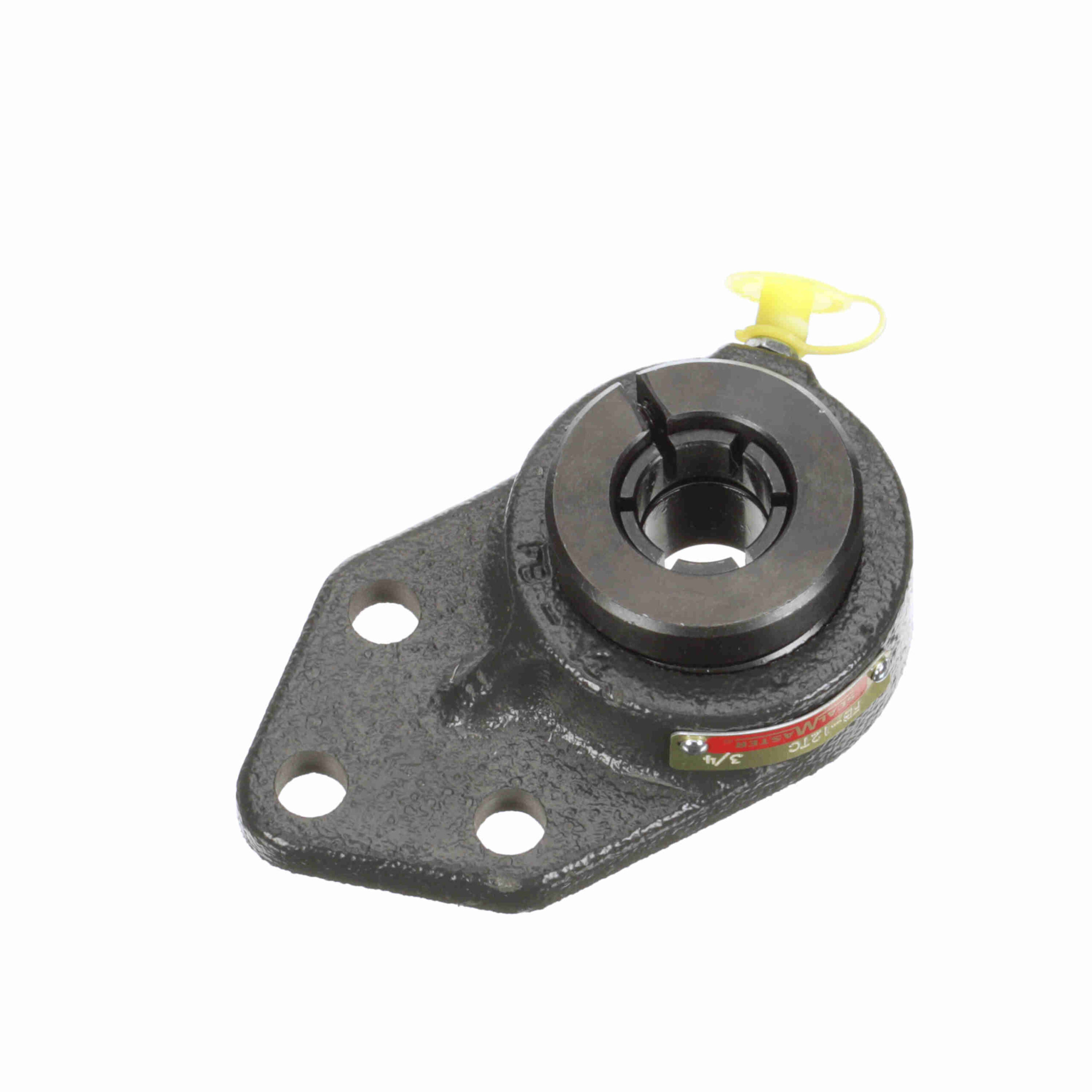

FB-12TC

Powder coated epoxy cast iron housing with extended inner ring bearings
Skwezloc® concentric locking for near perfect concentricity
Single lip contact seal
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Housing Material:	Cast Iron	Expansion:	No
Measure Units:	Inch	Bore Shape:	Straight
Inner-Race Heat-Treat Method:	Zone-Hardened	Insert No.:	2-012TC
Retainer Type:	Land Riding Retainer	Housing Type:	Flange, Bracket, Three Bolt
Housing Base:	Solid	Rolling Element:	Ball Bearing
Maximum Operating Temperature:	220 °F	Insert Material:	52100 Bearing Steel, Black Oxided
Speed (Max):	6450	Seal Type:	Single Lip Contact Seal
Duty Series:	Standard Duty	Relubricatable:	Yes
Pilot Configuration:	No Pilot	Internal Clearance:	Standard
Misalignment:	±2.0° Misalignment - Static Only	Lubrication:	Lithium Complex NLGI 2 Grease
Housing Construction:	One Piece	Locking Type:	Concentric
Bearing Insert Coating:	Black Oxide Coated	Housing Color:	Gray
Misalignment Type:	Static Only	Replaceable Insert:	Yes
Outer Ring Land Profile:	Standard	End Cap:	No
Platform:	Gold Line Ball Bearing	UPC:	662461034545
Weight:	1.50 LB	Packaged Length:	4 Inches
Packaged Width:	1.5 Inches	Packaged Height:	3.94 Inches
HTC:	8483.20.4040	Country of Origin:	United States of America
