- Powder coated epoxy cast iron housed, extended inner ring bearings in expansion ring allowing for axial expansion
- Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
- High temperature felt labyrinth seal and flinger
- Increased internal clearance
- Krytox® high temperature grease
- Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
SF-32 HI

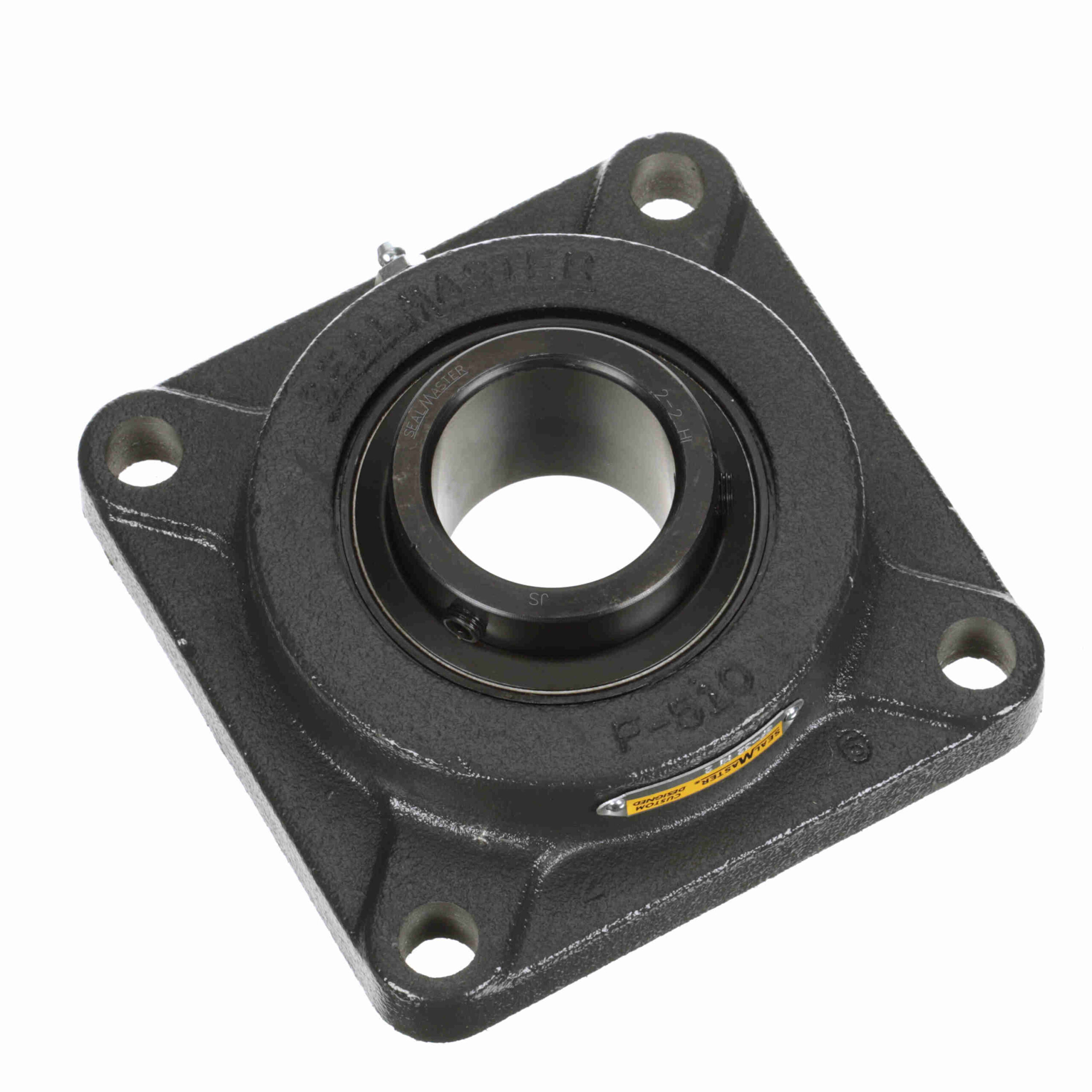

Sealmaster Mounted Cast Iron Four Bolt Flange Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – High Temperature – SF-32 HI
$828.90
Out of stock
Out of stock
| Rolling Element: | Ball Bearing | Measure Units: | Inch |
|---|---|---|---|
| Seal Type: | High Temp Labyrinth | Bore Shape: | Straight |
| Insert Material: | 52100 Bearing Steel, Black Oxided | Housing Base: | Solid |
| Pilot Configuration: | No Pilot | Misalignment: | ±2.0° Misalignment - Static Only |
| Housing Construction: | One Piece | Internal Clearance: | Increased |
| Housing Color: | Gray | Options: | High Temperature |
| Bearing Insert Coating: | Black Oxide Coated | Replaceable Insert: | Yes |
| Platform: | Gold Line Ball Bearing | End Cap: | No |
| Misalignment Type: | Static Only | Outer Ring Land Profile: | Standard |
| T Core: | 4.25 | Fixed vs. Expansion: | Fixed |
| Locking Type: | Setscrew | Maximum Speed (RPM): | 1400 rpm |
| Housing Material: | Cast Iron | Retainer Type: | Land Riding Retainer |
| Lubrication Type: | PTFE thickened Grease | Duty/Series: | Standard Duty |
| Housing Type: | Flange, Four Bolt | Housing Style: | Flange Block |
| Ability to Relubricate: | Yes | Maximum Operating Temperature (F): | 400 °F |
| Insert Number: | 2-2 HI | Operating Temperature Range (F): | Max. +400°F °F |
| Inner Race Heat Treat Method: | Zone-Hardened | UPC: | 662461270813 |
| Weight: | 10.50 LB | Packaged Length: | 6.75 Inches |
| Packaged Width: | 6.5 Inches | Packaged Height: | 2.44 Inches |
| HTC: | 8483.20.4040 | Country of Origin: | United States of America |
