- Metric stud type cam follower
- Crowned outside diameter
- Needle rolling elements
- Slot hole
- LUBRI-DISC® seal
- Jam nuts and lube fitting included

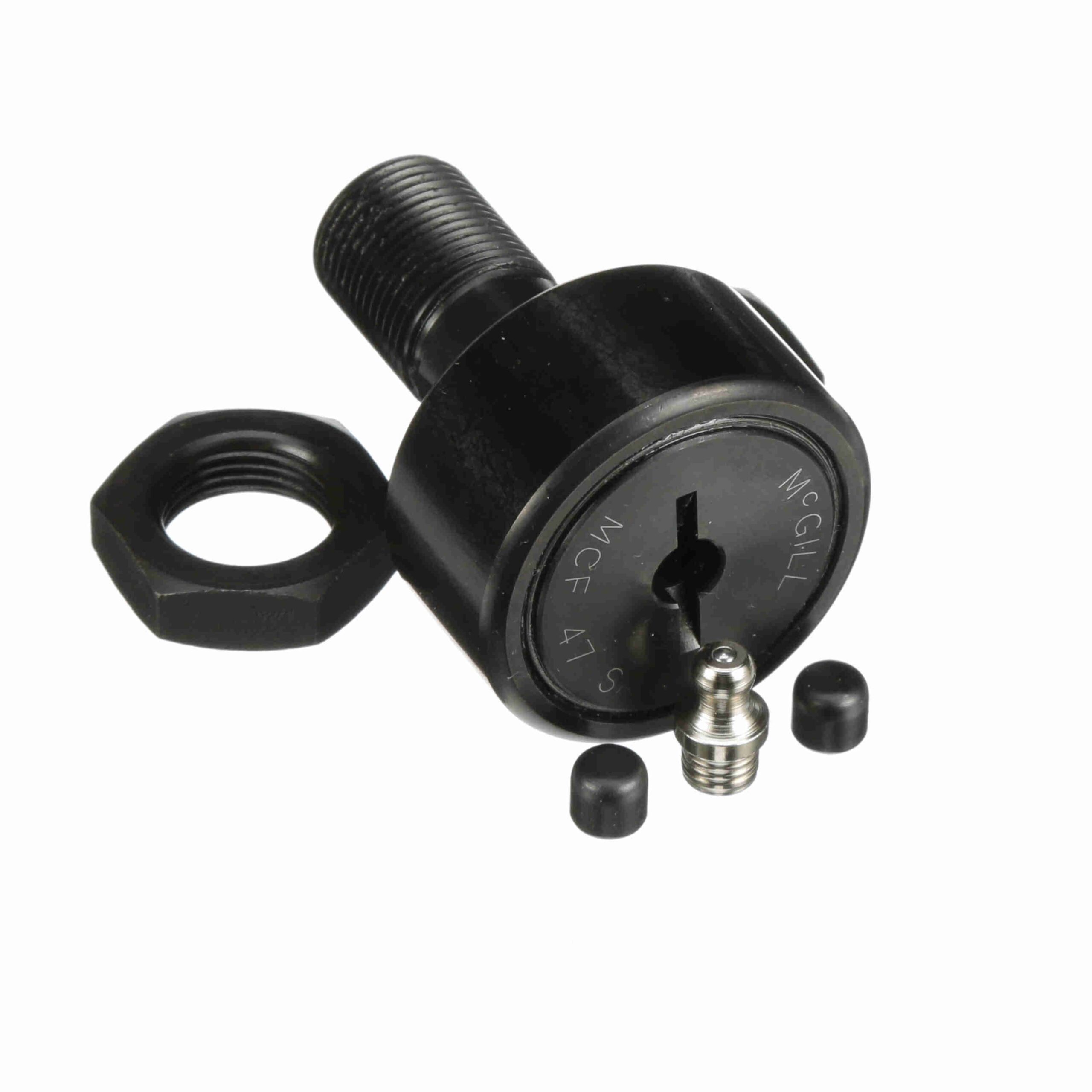

MCF 47 S
McGill CAMROL® Crowned Metric Cam Follower – Stud Mount Roller – Screwdriver Slot – Sealed – MCF 47 S
$65.03
Out of stock
Out of stock
| O.D. Configuration: | Crowned | Series: | Metric CAMROL® |
|---|---|---|---|
| Hex/Slot: | Screwdriver Slot | Dynamic Radial Rating: | 6 |
| Rolling Element: | Needle Roller - Full Complement | Sealing: | Sealed |
| Limiting Speed: | 3 | Adjustment: | None |
| Dynamic Track Roller Load Rating (N): | 25, 690 N | Material: | Bearing Steel, Black Oxide Finish |
| Platform: | CAMROL® | Tolerance Class: | P0 Equivalent |
| Industry Standard: | DIN | Static Load Rating: | 47 |
| Static Track Roller Load Rating: | 47 | Roller Shape: | Crowned |
| Stud Type: | Standard Stud | Ability to Relubricate: | Yes |
| Clamping Torque (Nm): | 118 N·m | Dynamic Load Rating (N): | 30, 790 N |
| UPC: | 726166022143 | Weight: | 1.01 LB |
| Packaged Length: | 2.2 Inches | Packaged Width: | 2.2 Inches |
| Packaged Height: | 2.8 Inches | Country of Origin: | China |
