- Reverse mounting ability – This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face.
- 3/4″/ft. Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
SF 2 1/16

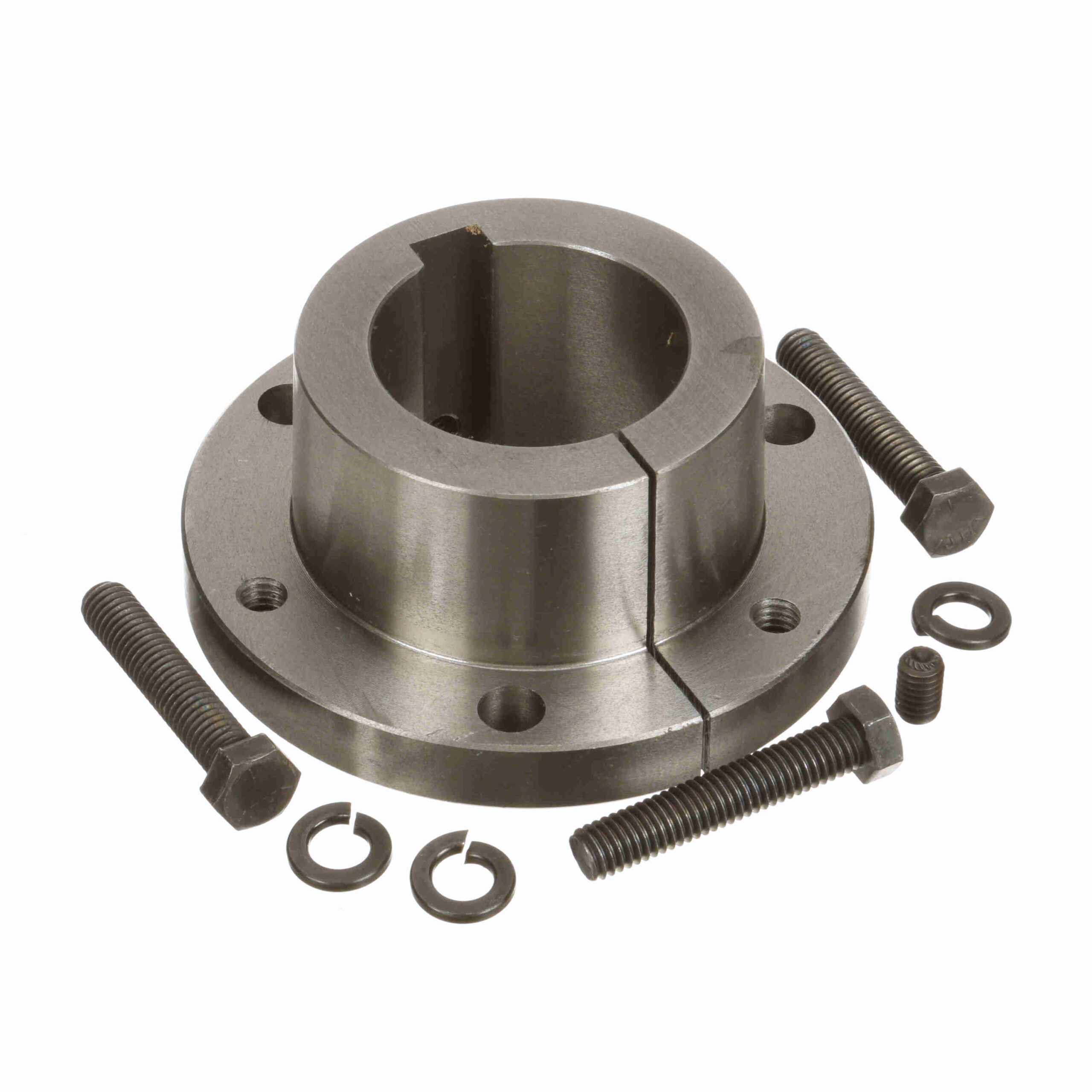

Browning Q-D Bushing – Inch Bore Type – SF 2 1/16
Out of stock
| Bore Type: | Inch | Total Length (in): | 1.995 in |
|---|---|---|---|
| Mounting Type: | Conventional | Torque Capacity (in-lb): | 11, 000 |
| Length Through Bore (in): | 1.995 in | Cap Screws (Bolt Circle): | 3.875 |
| Compatible Bore Size [Max] (in): | 2.0625 in | Model Name: | QD-SF_Bushing_Master |
| Bushing Type: | SF | Cap Screws (Size): | 3/8-16 x 2 |
| Outside Diameter (in): | 4.625 in | Product Type: | Q-D Bushing |
| Wrench Torque (ft.-lbs.): | 30 | Keyway: | 1/4 x 1/8 |
| Cap Screws (No.): | 3 | Bore Size (in): | 2.0625 in |
| Material: | Gray Iron - G3021 | Flange Thickness: | 0.5625 in |
| Barrel Length: | 1.4375 in | Barrel Diameter: | 3.125 in |
| UPC: | 662289375233 | Weight: | 3.58 LB |
| Packaged Length: | 5 Inches | Packaged Width: | 5.2 Inches |
| Packaged Height: | 2.4 Inches | HTC: | 8483.90.8080 |
| Country of Origin: | Mexico |
