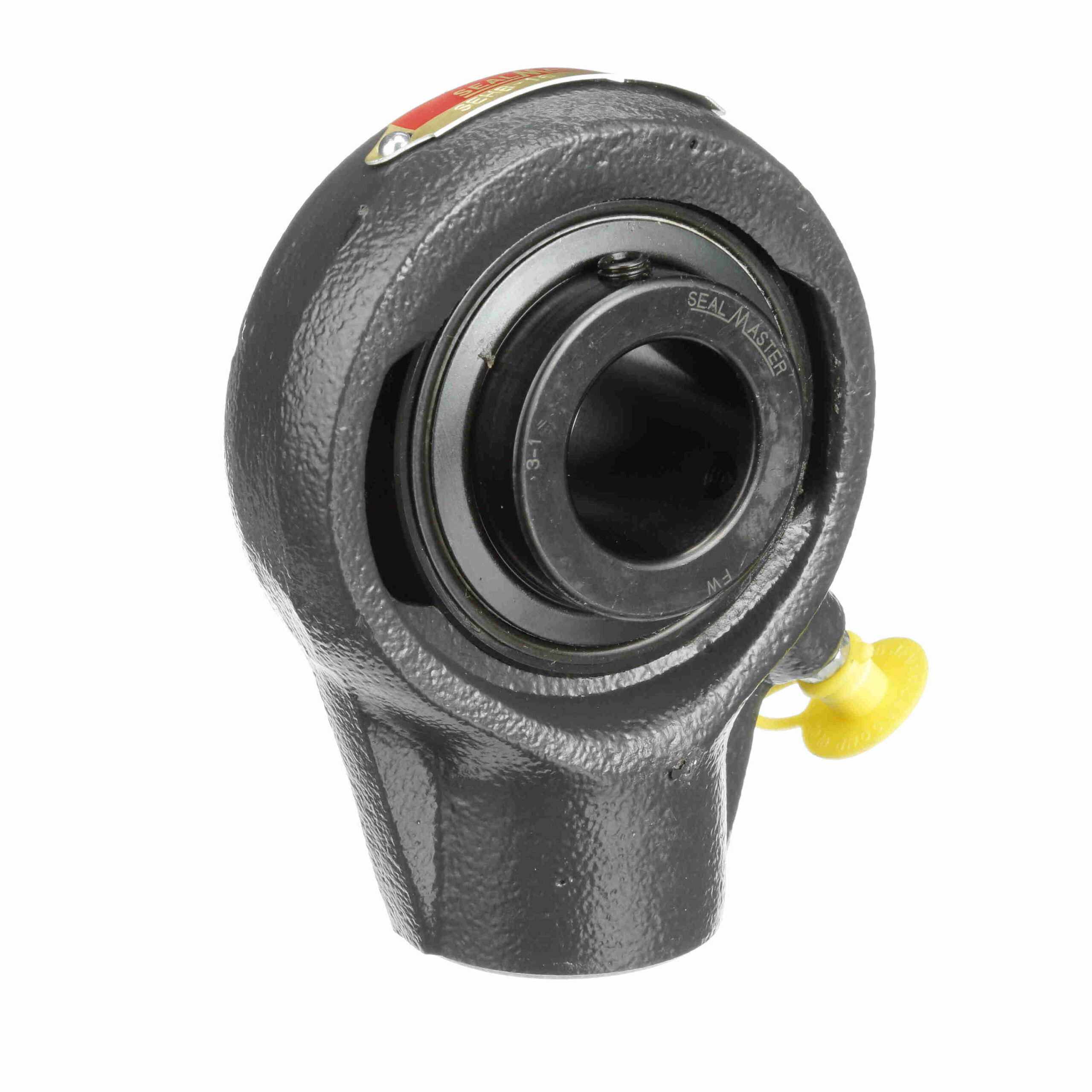

SEHB-17

Powder coated epoxy cast iron housing with extended inner ring bearings
Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
Felt labyrinth seal and flinger for dry and dusty environment
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Measure Units:	Inch	Bore Shape:	Straight
Rolling Element:	Ball Bearing	Seal Type:	Felt Labyrinth Seal
Insert Material:	52100 Bearing Steel, Black Oxided	Misalignment:	±2.0° Misalignment - Static Only
Internal Clearance:	Standard	Housing Construction:	One Piece
Platform:	Gold Line Ball Bearing	Replaceable Insert:	Yes
Housing Color:	Gray	Bearing Insert Coating:	Black Oxide Coated
Outer Ring Land Profile:	Standard	Misalignment Type:	Static Only
End Cap:	No	Series:	SEHB
Finish/Coating:	Uncoated	Maximum Speed (RPM):	5450 rpm
Housing Type:	Hanger Unit	Fixed vs. Expansion:	Fixed
Duty/Series:	Standard Duty	Locking Type:	Setscrew
Retainer Type:	Land Riding Retainer	Lubrication Type:	Lithium Complex NLGI 2 Grease
Housing Material:	Cast Iron	Housing Style:	Hanger Block
Insert Number:	45232	Inner Race Heat Treat Method:	Zone-Hardened
Maximum Operating Temperature (F):	220 °F	Ability to Relubricate:	Yes
Housing Thread Size:	41732	UPC:	662461000000
Weight:	2.20 LB	Packaged Length:	4.5 Inches
Packaged Width:	1.69 Inches	Packaged Height:	4.56 Inches
HTC:	8483.20.4040	Country of Origin:	United States of America
