- Reverse mounting ability – This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face.
- 3/4″/ft. Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
SDS 24 MM

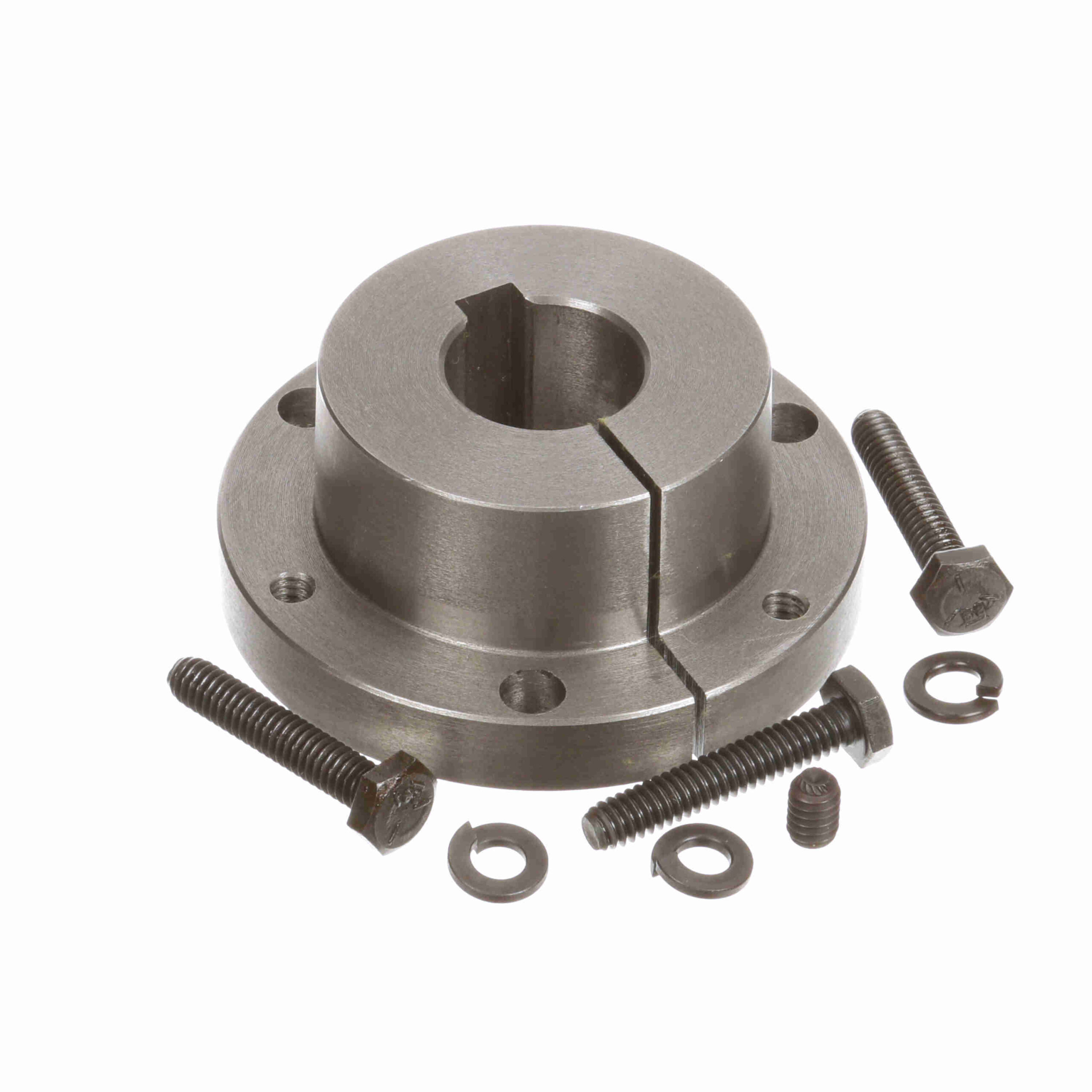

Browning Q-D Bushing – Metric Bore Type – SDS 24 MM
$115.22
Out of stock
Out of stock
| Wrench Torque (ft.-lbs.): | 9 | Bushing Type: | SDS |
|---|---|---|---|
| Bore Type: | Metric | Outside Diameter (in): | 3.125 in |
| Cap Screws (No.): | 3 | Outside Diameter (mm): | 79.375 mm |
| Mounting Type: | Conventional | Torque Capacity (in-lb): | 5, 000 |
| Total Length (mm): | 33.782 mm | Cap Screws (Size): | 1/4-20 x 1 3/8 |
| Cap Screws (Bolt Circle): | 2.6875 | Length Through Bore (mm): | 33.782 mm |
| Keyway: | 8mm x 3.5mm | Product Type: | Q-D Bushing |
| Total Length (in): | 1.33 in | Compatible Bore Size [Max] (mm): | 24 mm |
| Bore Size (mm): | 24 mm | Barrel Diameter: | 2.1875 in |
| Flange Thickness: | 0.45 in | Material: | Ductile Iron - 65-45-67 |
| Barrel Length: | 0.88 in | UPC: | 662289615926 |
| Weight: | 1.56 LB | Packaged Length: | 4.8 Inches |
| Packaged Width: | 4.5 Inches | Packaged Height: | 1.6 Inches |
| HTC: | 8483.90.8080 | Country of Origin: | Mexico |
