- Reverse mounting ability – This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face.
- 3/4″/ft. Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
SD 1 3/4

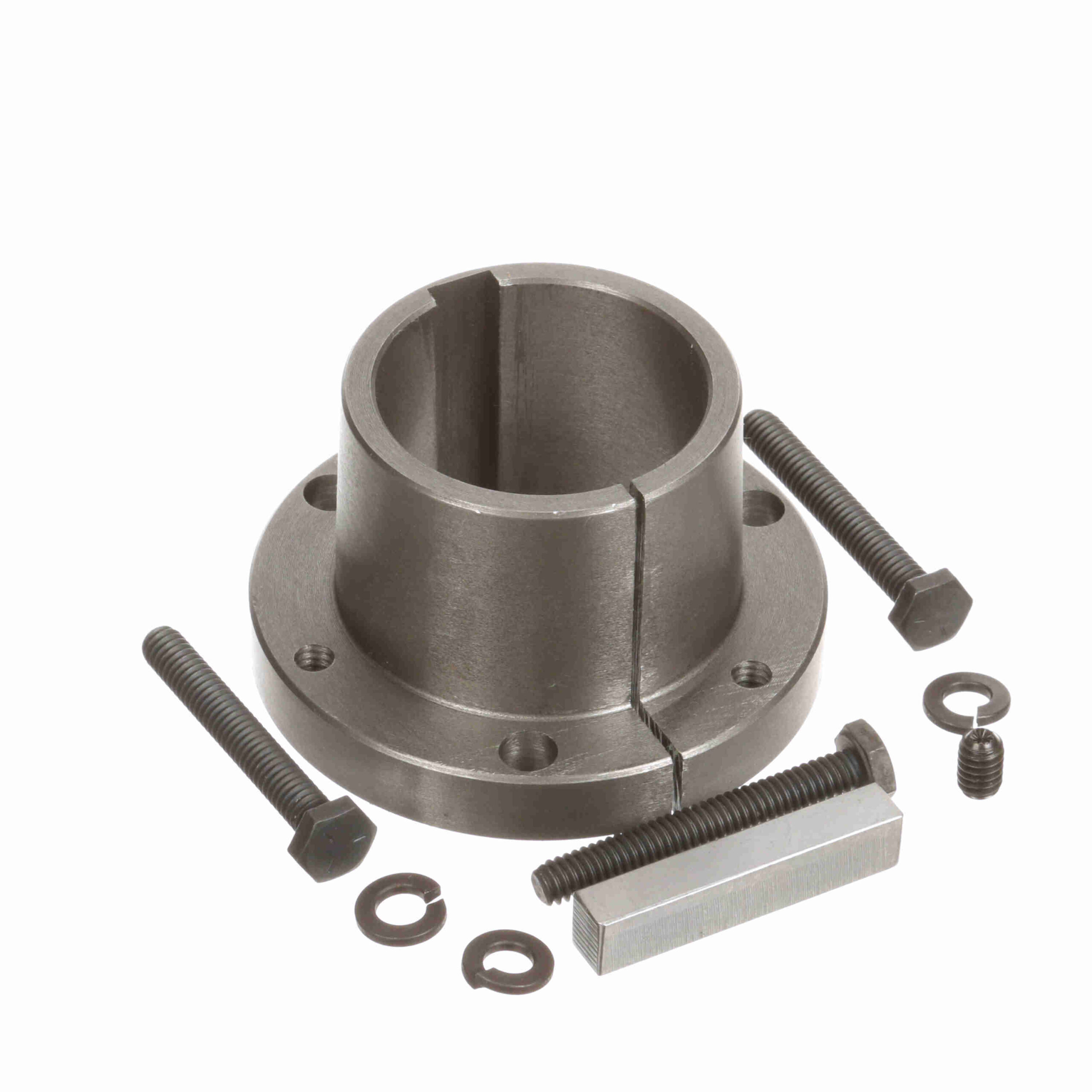

Browning Q-D Bushing – Inch Bore Type – SD 1 3/4
$101.11
Out of stock
Out of stock
| Total Length (in): | 1.83 in | Outside Diameter (in): | 3.125 in |
|---|---|---|---|
| Model Name: | QD-SD_Bushing_Master | Torque Capacity (in-lb): | 5, 000 |
| Cap Screws (No.): | 3 | Product Type: | Q-D Bushing |
| Bushing Type: | SD | Cap Screws (Bolt Circle): | 2.6875 |
| Mounting Type: | Conventional | Keyway: | 3/8 x 3/16 |
| Wrench Torque (ft.-lbs.): | 9 | Bore Type: | Inch |
| Cap Screws (Size): | 1/4-20 x 1 7/8 | Compatible Bore Size [Max] (in): | 1.75 in |
| Length Through Bore (in): | 1.83 in | Bore Size (in): | 1.75 in |
| Barrel Length: | 1.38 in | Material: | Ductile Iron - 65-45-20 |
| Flange Thickness: | 0.45 in | Barrel Diameter: | 2.1875 in |
| UPC: | 662289354757 | Weight: | 1.21 LB |
| Packaged Length: | 4.2 Inches | Packaged Width: | 4.4 Inches |
| Packaged Height: | 1.9 Inches |
