- Stud type cam follower
- Cylindrical outside diameter
- Needle rolling elements
- Slot hole
CF 1 3/4

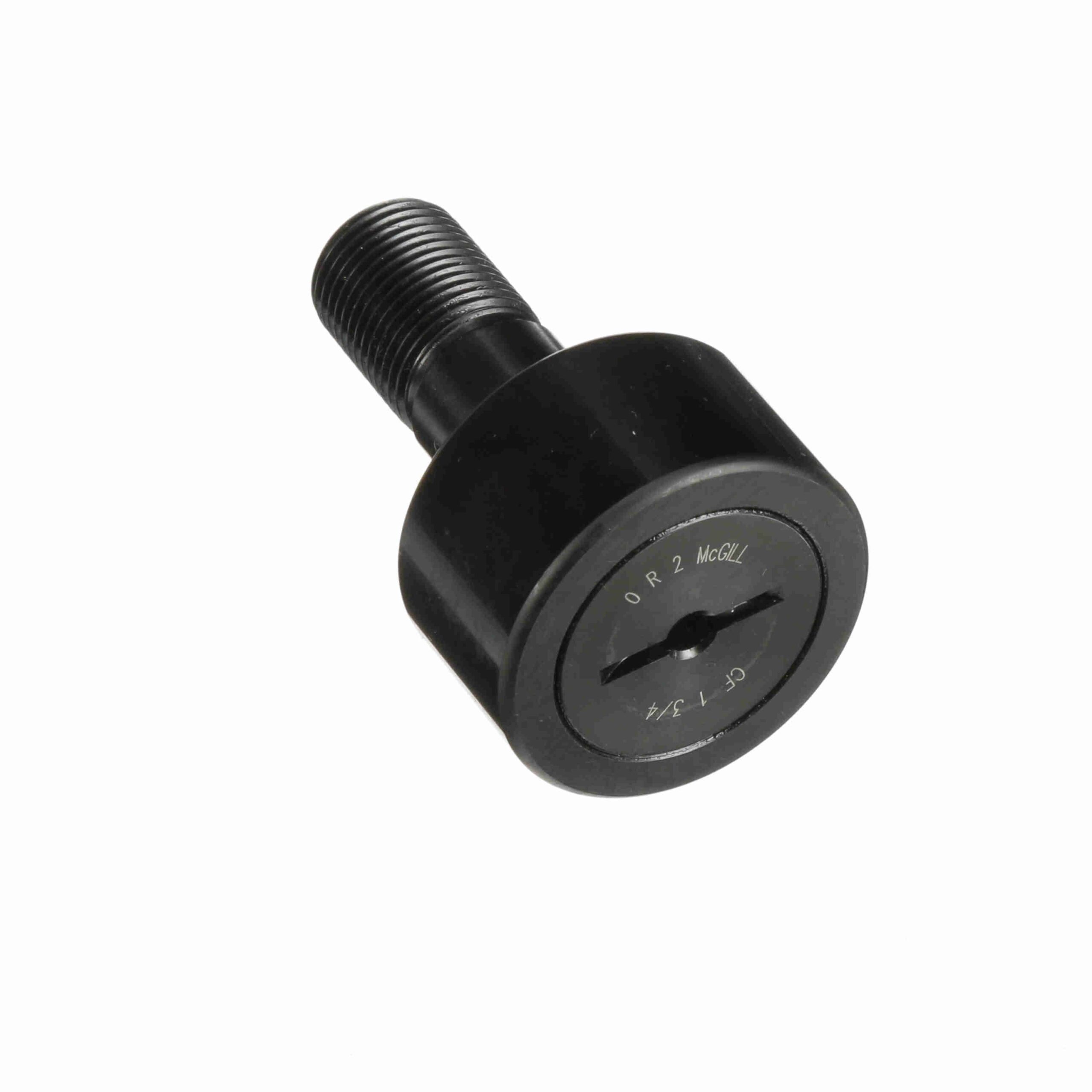

McGill CAMROL® Cylindrical Inch Cam Follower – Stud Mount Roller – Screwdriver Slot – CF 1 3/4
$38.37
Availability: 183 in stock
Availability: 183 in stock
| Rolling Element: | Needle Roller - Full Complement | Series: | Inch CAMROL® |
|---|---|---|---|
| Sealing: | Unsealed | Hex/Slot: | Screwdriver Slot |
| Dynamic Radial Rating: | 6 | Adjustment: | None |
| Limiting Speed: | 2 | O.D. Configuration: | Cylindrical |
| Material: | Bearing Steel, Black Oxide Finish | Static Load Rating: | 8 |
| Stud Type: | Standard Stud | Tolerance Class: | P0 Equivalent |
| Roller Shape: | Cylindrical | Platform: | CAMROL® |
| Dynamic Load Rating (lb): | 6, 385 lb | Lubrication Hole Location: | Stud side |
| Clamping Torque (in-lbf): | 1, 250 lbs | Ability to Relubricate: | Yes |
| UPC: | 726166036393 | Weight: | 0.87 LB |
| Packaged Length: | 2 Inches | Packaged Width: | 2 Inches |
| Packaged Height: | 2.87 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
