- Reverse mounting ability – This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face.
- 3/4″/ft. Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
SD 1 1/16

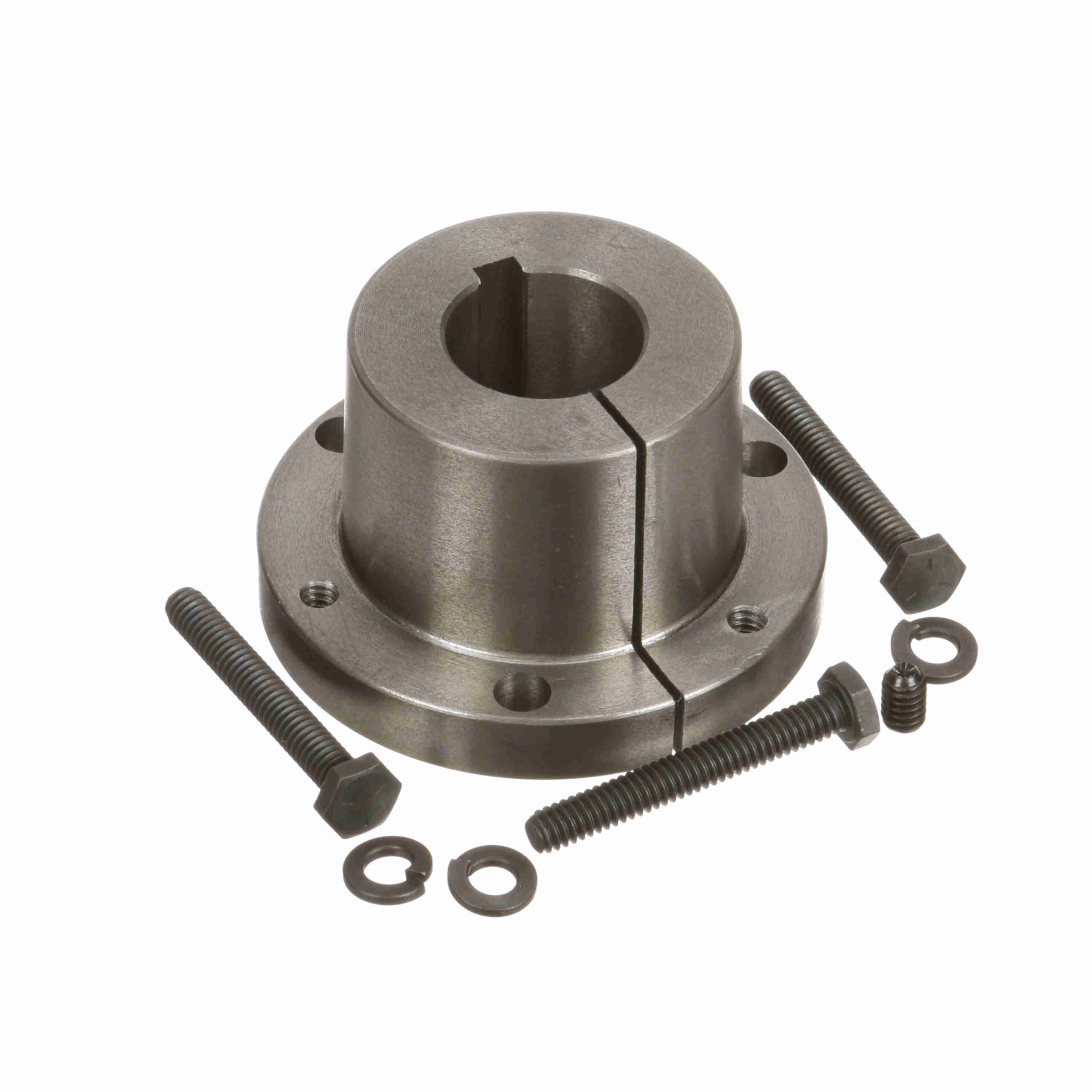

Browning Q-D Bushing – Inch Bore Type – SD 1 1/16
$123.67
Out of stock
Out of stock
| Mounting Type: | Conventional | Torque Capacity (in-lb): | 5, 000 |
|---|---|---|---|
| Total Length (in): | 1.83 in | Length Through Bore (in): | 1.83 in |
| Model Name: | QD-SD_Bushing_Master | Wrench Torque (ft.-lbs.): | 9 |
| Product Type: | Q-D Bushing | Compatible Bore Size [Max] (in): | 1.0625 in |
| Cap Screws (No.): | 3 | Bushing Type: | SD |
| Keyway: | 1/4 x 1/8 | Cap Screws (Bolt Circle): | 2.6875 |
| Outside Diameter (in): | 3.125 in | Cap Screws (Size): | 1/4-20 x 1 7/8 |
| Bore Type: | Inch | Bore Size (in): | 1.0625 in |
| Flange Thickness: | 0.45 in | Barrel Diameter: | 2.1875 in |
| Barrel Length: | 1.38 in | Material: | Ductile Iron - 65-45-13 |
| UPC: | 662289414673 | Weight: | 2.28 LB |
| Packaged Length: | 4.2 Inches | Packaged Width: | 4.2 Inches |
| Packaged Height: | 2 Inches | HTC: | 8483.90.8080 |
| Country of Origin: | Mexico |
