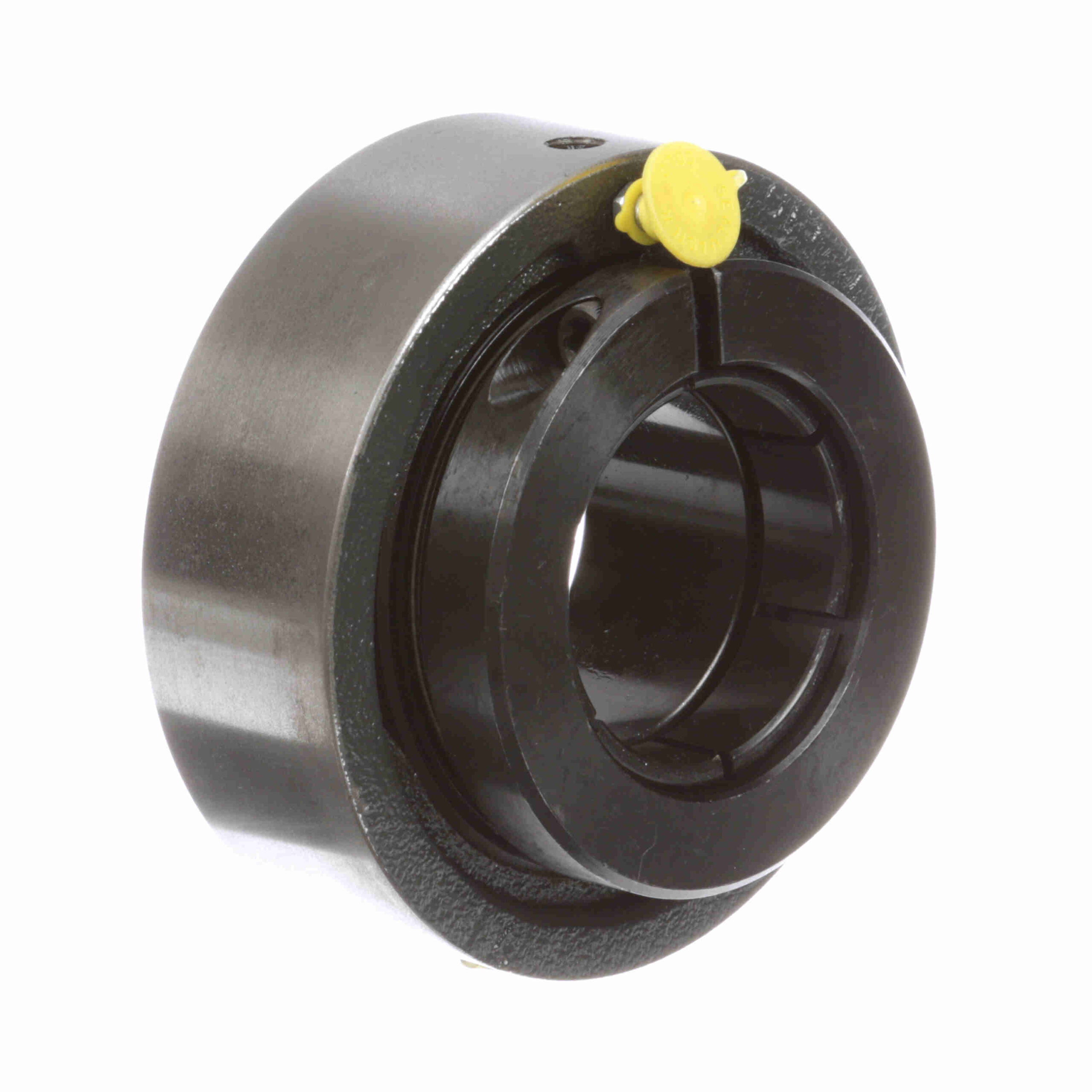

SC-35T

Powder coated epoxy cast iron cylindrical O.D. housing with extended inner ring bearings
Skwezloc® concentric locking for near perfect concentricity
Felt labyrinth seal and flinger for dry and dusty environment
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Seal Type:	Felt Labyrinth Seal	Housing Type:	Cartridge; Cylindrical
Retainer Type:	Land Riding Retainer	Inner-Race Heat-Treat Method:	Zone-Hardened
Insert No.:	2-23T	Duty Series:	Standard Duty
Housing Material:	Cast Iron	Maximum Operating Temperature:	220 °F
Rolling Element:	Ball Bearing	Expansion:	No
Insert Material:	52100 Bearing Steel; Black Oxided	Locking Type:	Concentric
Radial Dynamic Load Capacity (lb):	9, 752	Bore Shape:	Straight
Lubrication:	Lithium Complex NLGI 2 Grease	Speed (Max):	4500
Housing Construction:	One Piece	Measure Units:	Inch
Internal Clearance:	Standard	Relubricatable:	Yes
Misalignment:	±2.0° Misalignment - Static Only	Housing Color:	Gray
Outer Ring Land Profile:	Standard	End Cap:	No
Bearing Insert Coating:	Black Oxide Coated	Misalignment Type:	Static Only
Replaceable Insert:	Yes	Platform:	Gold Line Ball Bearing
Radial Static Load Capacity (lb):	6, 601	Series:	SC-T
Cage Material:	PPS	UPC:	662461029923
Weight:	6.40 LB	Packaged Length:	5.5 Inches
Packaged Width:	5.38 Inches	Packaged Height:	3.5 Inches
HTC:	8482.10.5052	Country of Origin:	Mexico
