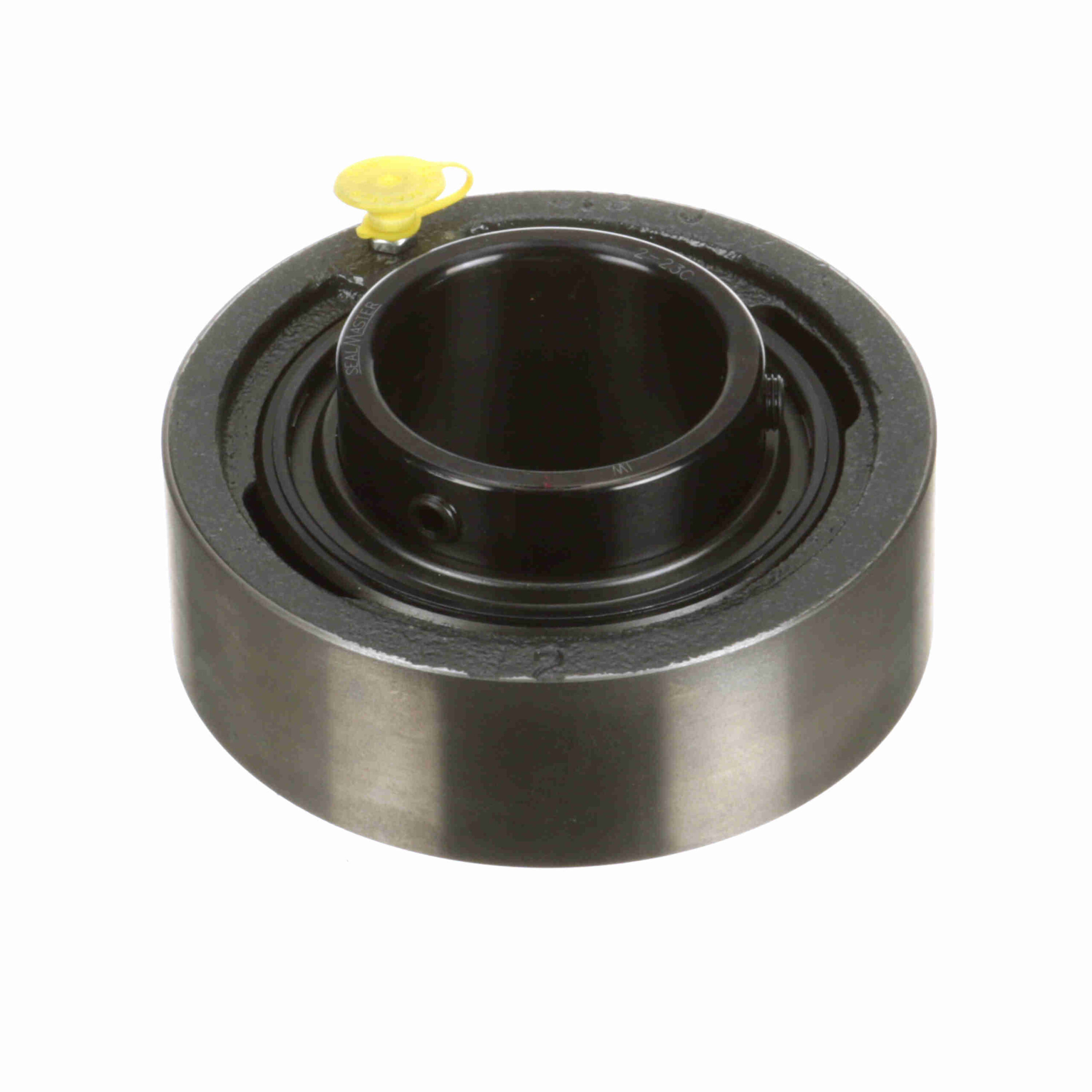

SC-35C

Powder coated epoxy cast iron housing with extended inner ring bearings
Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
Single lip contact seal
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Seal Type:	Single Lip Contact Seal	Maximum Operating Temperature:	220 °F
Insert Material:	52100 Bearing Steel, Black Oxided	Insert No.:	2-23C
Housing Material:	Cast Iron	Rolling Element:	Ball Bearing
Retainer Type:	Land Riding Retainer	Expansion:	No
Housing Type:	Cartridge, Cylindrical	Inner-Race Heat-Treat Method:	Zone-Hardened
Duty Series:	Standard Duty	Measure Units:	Inch
Lubrication:	Lithium Complex NLGI 2 Grease	Locking Type:	Setscrew
Housing Construction:	One Piece	Radial Dynamic Load Capacity (lb):	9, 752
Speed (Max):	3250	Internal Clearance:	Standard
Relubricatable:	Yes	Bore Shape:	Straight
Misalignment:	±2.0° Misalignment - Static Only	Misalignment Type:	Static Only
End Cap:	No	Bearing Insert Coating:	Black Oxide Coated
Platform:	Gold Line Ball Bearing	Replaceable Insert:	Yes
Outer Ring Land Profile:	Standard	Housing Color:	Gray
Radial Static Load Capacity (lb):	6, 601	Series:	SC
Cage Material:	PPS	UPC:	662461021200
Weight:	5.60 LB	Packaged Length:	5.5 Inches
Packaged Width:	5.38 Inches	Packaged Height:	3.5 Inches
HTC:	8482.10.5052	Country of Origin:	Mexico
