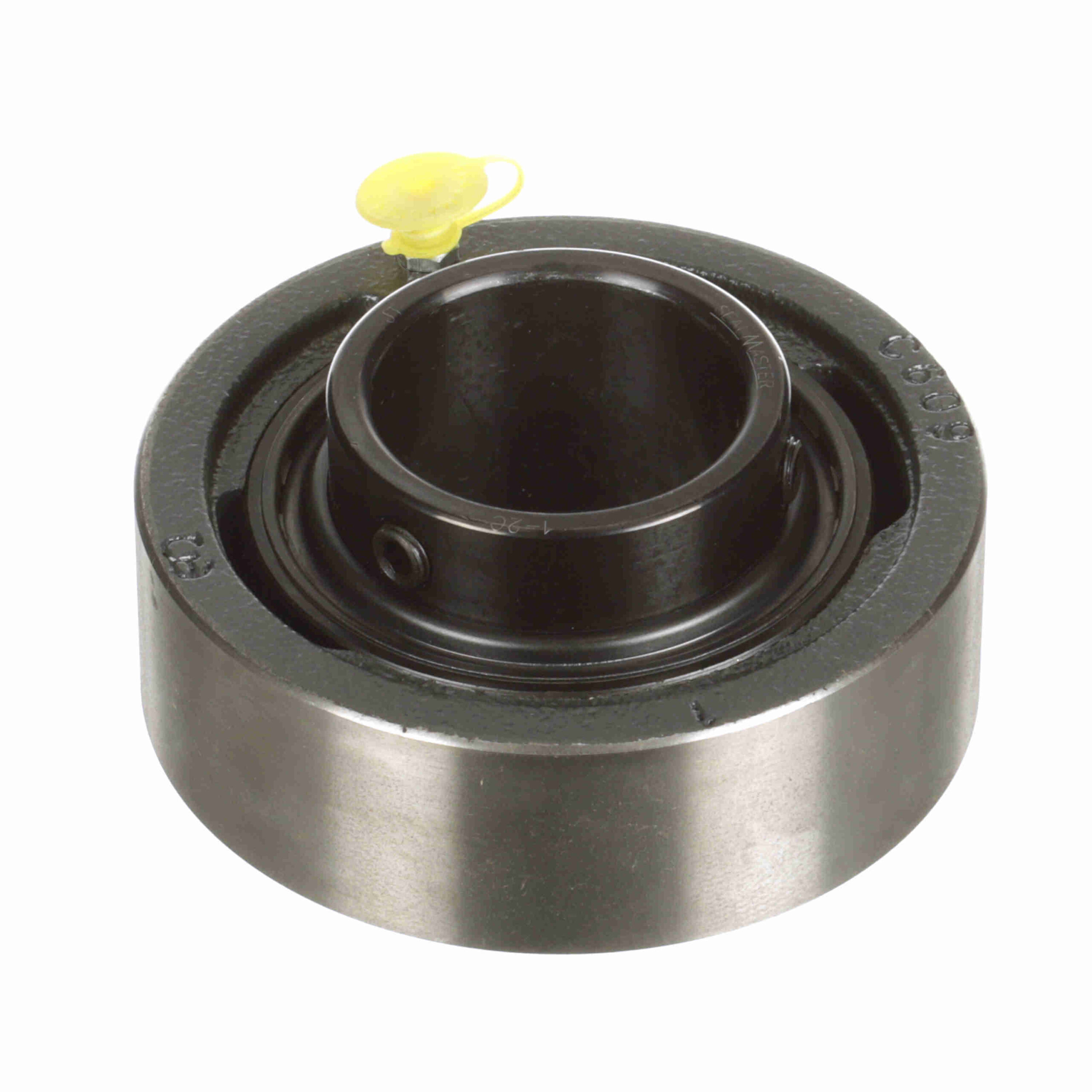

SC-32RC

Powder coated epoxy cast iron housing with extended inner ring bearings
Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
Single lip contact seal
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Retainer Type:	Land Riding Retainer	Expansion:	No
Duty Series:	Standard Duty	Insert Material:	52100 Bearing Steel, Black Oxided
Housing Type:	Cartridge, Cylindrical	Insert No.:	1-2C
Maximum Operating Temperature:	220 °F	Housing Material:	Cast Iron
Seal Type:	Single Lip Contact Seal	Inner-Race Heat-Treat Method:	Zone-Hardened
Rolling Element:	Ball Bearing	Locking Type:	Setscrew
Radial Dynamic Load Capacity (lb):	7, 889	Housing Construction:	One Piece
Bore Shape:	Straight	Relubricatable:	Yes
Lubrication:	Lithium Complex NLGI 2 Grease	Internal Clearance:	Standard
Speed (Max):	3550	Measure Units:	Inch
Misalignment:	±2.0° Misalignment - Static Only	Housing Color:	Gray
Platform:	Gold Line Ball Bearing	Bearing Insert Coating:	Black Oxide Coated
End Cap:	No	Replaceable Insert:	Yes
Outer Ring Land Profile:	Standard	Misalignment Type:	Static Only
Radial Static Load Capacity (lb):	5, 216	Series:	SC
Cage Material:	PPS	UPC:	662461021170
Weight:	4.45 LB	Packaged Length:	5 Inches
Packaged Width:	2 Inches	Packaged Height:	5 Inches
HTC:	8482.10.5052	Country of Origin:	Mexico
