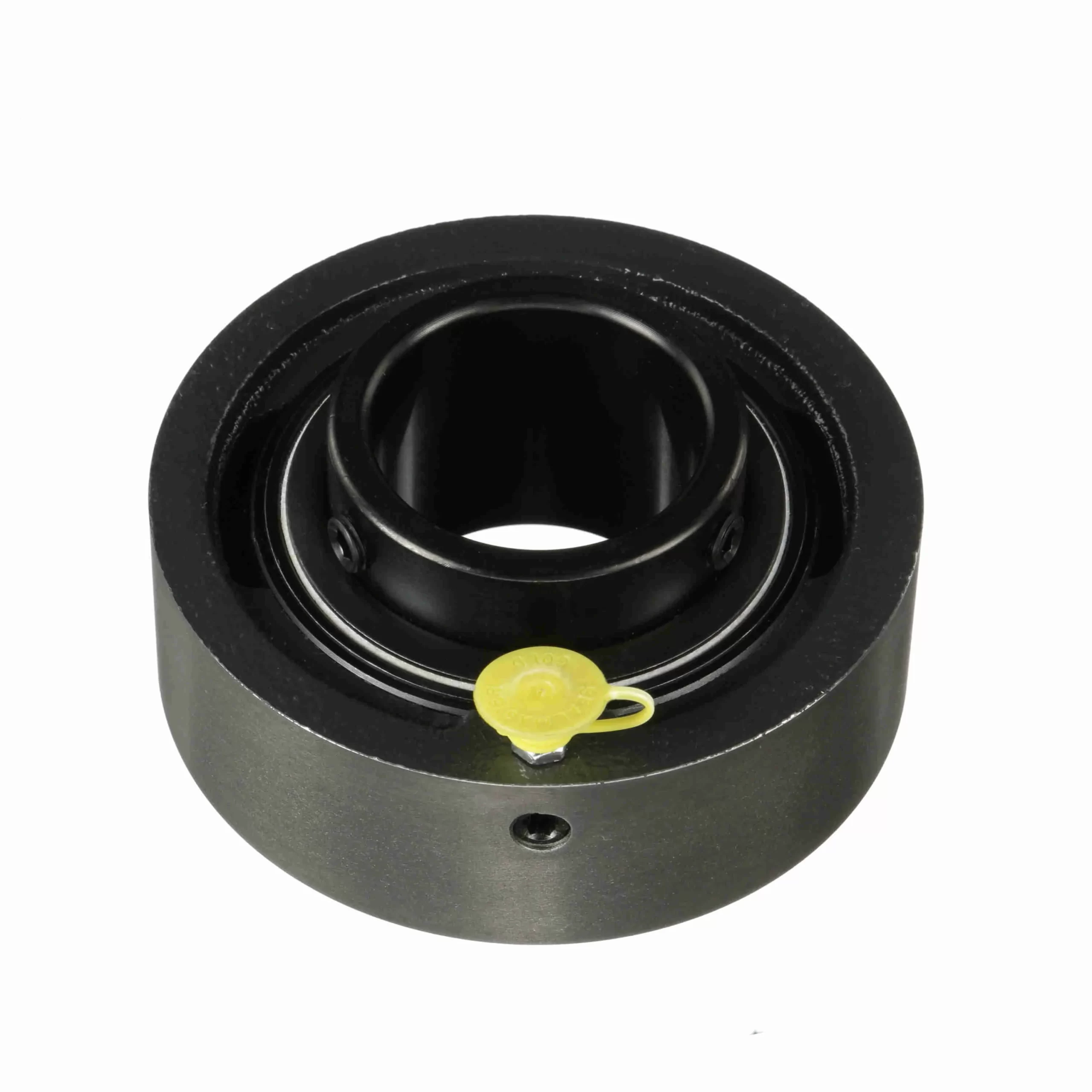

SC-29

Powder coated epoxy cast iron cylindrical O.D. housing with extended inner ring bearings
Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
Felt labyrinth seal and flinger for dry and dusty environment
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Maximum Operating Temperature:	220 °F	Insert Material:	52100 Bearing Steel, Black Oxided
Retainer Type:	Land Riding Retainer	Insert No.:	2-113
Housing Material:	Cast Iron	Seal Type:	Felt Labyrinth Seal
Expansion:	No	Rolling Element:	Ball Bearing
Inner-Race Heat-Treat Method:	Zone-Hardened	Housing Type:	Cartridge, Cylindrical
Duty Series:	Standard Duty	Locking Type:	Setscrew
Lubrication:	Lithium Complex NLGI 2 Grease	Bore Shape:	Straight
Misalignment:	±2.0° Misalignment - Static Only	Speed (Max):	3550
Internal Clearance:	Standard	Relubricatable:	Yes
Housing Construction:	One Piece	Radial Dynamic Load Capacity (lb):	7, 889
Measure Units:	Inch	Replaceable Insert:	Yes
End Cap:	No	Housing Color:	Gray
Platform:	Gold Line Ball Bearing	Misalignment Type:	Static Only
Outer Ring Land Profile:	Standard	Bearing Insert Coating:	Black Oxide Coated
Radial Static Load Capacity (lb):	5, 216	Series:	SC
Cage Material:	PPS	UPC:	662461002537
Weight:	4.90 LB	Packaged Length:	5 Inches
Packaged Width:	2 Inches	Packaged Height:	5 Inches
HTC:	8482.10.5052	Country of Origin:	Mexico
