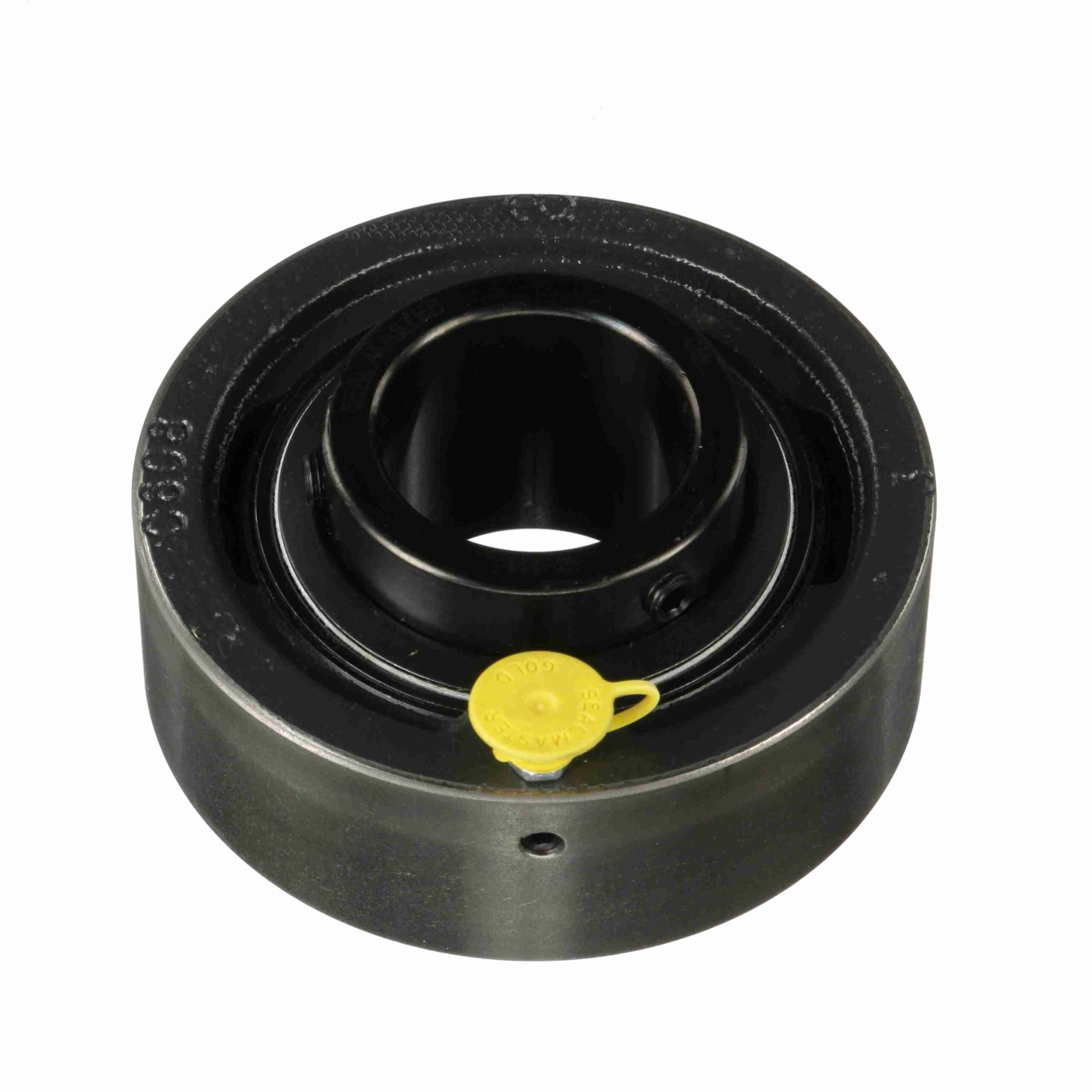

SC-27

Powder coated epoxy cast iron cylindrical O.D. housing with extended inner ring bearings
Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
Felt labyrinth seal and flinger for dry and dusty environment
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Retainer Type:	Land Riding Retainer	Rolling Element:	Ball Bearing
Expansion:	No	Housing Type:	Cartridge; Cylindrical
Insert Material:	52100 Bearing Steel; Black Oxided	Insert No.:	2-111
Housing Material:	Cast Iron	Maximum Operating Temperature:	220 °F
Duty Series:	Standard Duty	Inner-Race Heat-Treat Method:	Zone-Hardened
Seal Type:	Felt Labyrinth Seal	Radial Dynamic Load Capacity (lb):	7, 901
Housing Construction:	One Piece	Locking Type:	Setscrew
Speed (Max):	3800	Internal Clearance:	Standard
Relubricatable:	Yes	Lubrication:	Lithium Complex NLGI 2 Grease
Measure Units:	Inch	Misalignment:	±2.0° Misalignment - Static Only
Bore Shape:	Straight	Housing Color:	Gray
Misalignment Type:	Static Only	Replaceable Insert:	Yes
Outer Ring Land Profile:	Standard	End Cap:	No
Bearing Insert Coating:	Black Oxide Coated	Platform:	Gold Line Ball Bearing
Radial Static Load Capacity (lb):	5, 139	Cage Material:	PPS
Series:	SC	UPC:	662461002513
Weight:	4.25 LB	Packaged Length:	5 Inches
Packaged Width:	2 Inches	Packaged Height:	5 Inches
HTC:	8482.10.5052	Country of Origin:	Mexico
