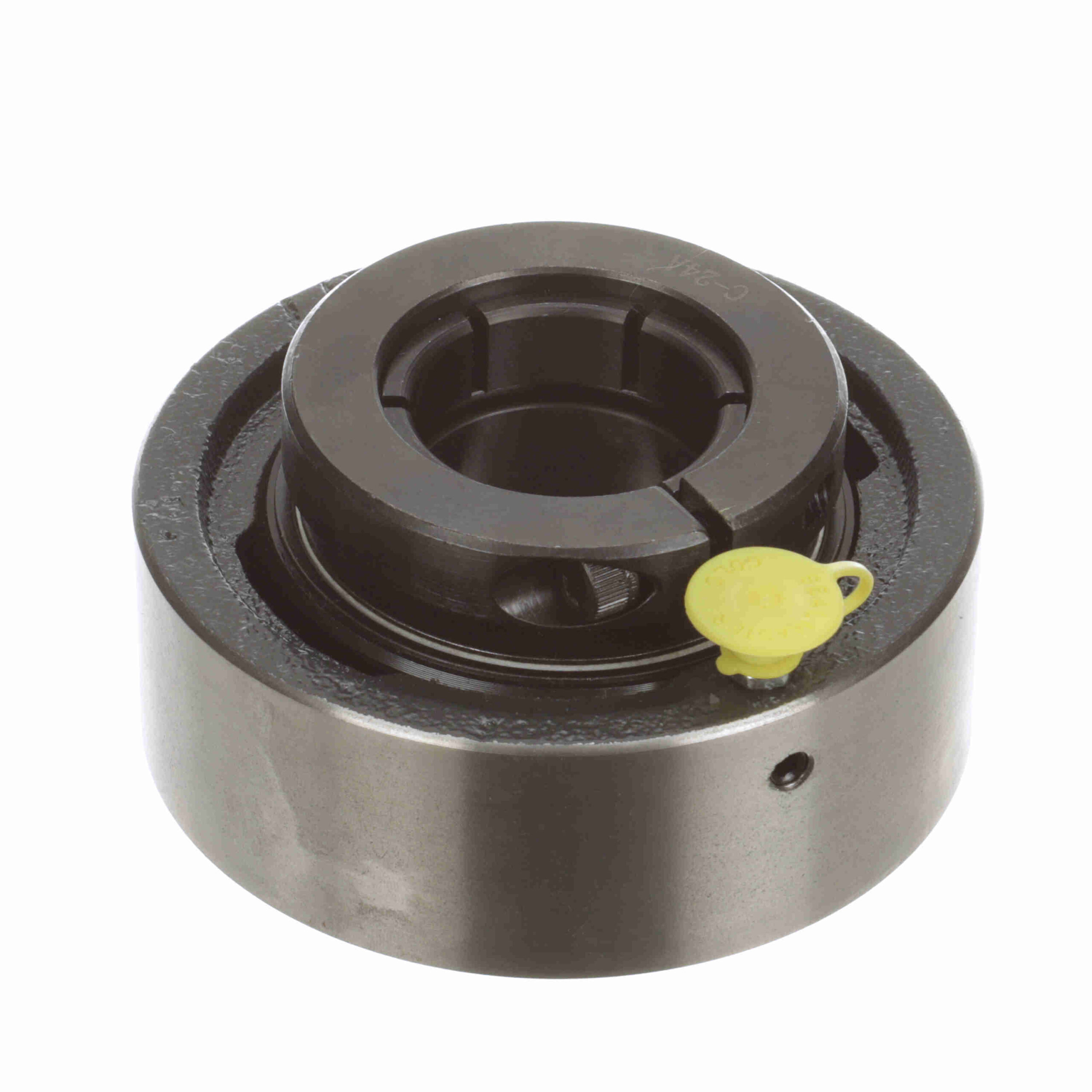

SC-24T

Powder coated epoxy cast iron cylindrical O.D. housing with extended inner ring bearings
Skwezloc® concentric locking for near perfect concentricity
Felt labyrinth seal and flinger for dry and dusty environment
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Seal Type:	Felt Labyrinth Seal	Rolling Element:	Ball Bearing
Insert Material:	52100 Bearing Steel, Black Oxided	Misalignment:	±2.0° Misalignment - Static Only
Radial Dynamic Load Capacity (lb):	7, 340 lb	Measure Units:	Inch
Housing Construction:	One Piece	Internal Clearance:	Standard
Bore Shape:	Straight	Platform:	Gold Line Ball Bearing
Misalignment Type:	Static Only	Housing Color:	Gray
Bearing Insert Coating:	Black Oxide Coated	End Cap:	No
Replaceable Insert:	Yes	Outer Ring Land Profile:	Standard
Radial Static Load Capacity (lb):	4, 467 lb	Series:	SC-T
Cage Material:	PPS	Housing Style:	Cartidge Block
Duty/Series:	Standard Duty	Locking Type:	Concentric
Housing Type:	Cartridge, Cylindrical	Housing Material:	Cast Iron
Lubrication Type:	Lithium Complex NLGI 2 Grease	Retainer Type:	Land Riding Retainer
Maximum Speed (RPM):	5850 rpm	Fixed vs. Expansion:	Fixed
Ability to Relubricate:	Yes	Inner Race Heat Treat Method:	Zone-Hardened
Maximum Operating Temperature (F):	220 °F	Insert Number:	2-18T
UPC:	662461000000	Weight:	4.40 LB
Packaged Length:	5 Inches	Packaged Width:	2 Inches
Packaged Height:	5 Inches	HTC:	8482.10.5052
Country of Origin:	Mexico
